Video
General

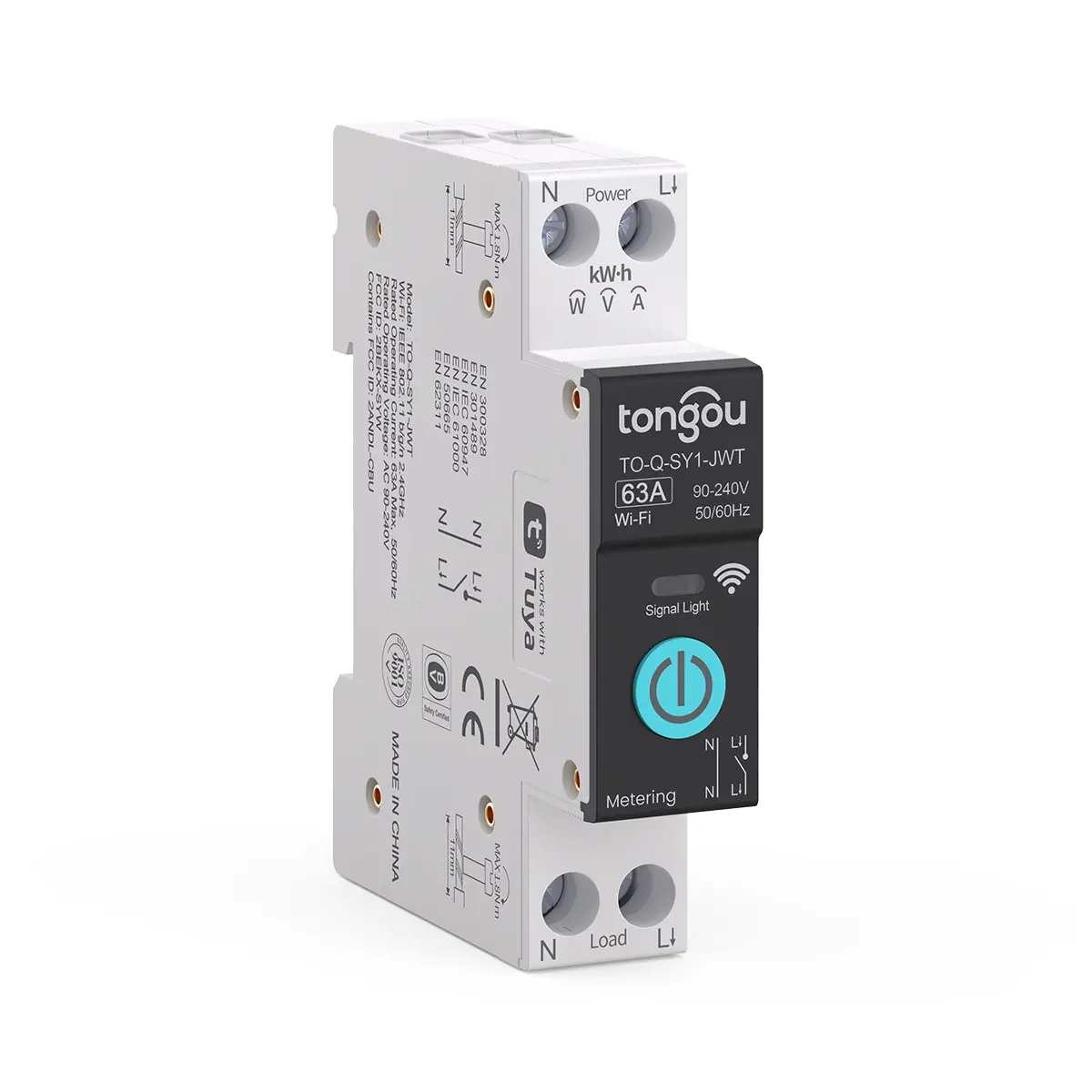

TO-Q-SY1 Din Rail smart WiFi switch using the latest smart “Tuya” chip, it can be configured with the router more quickly and stably, turning ordinary electrical appliances into smart products instantly, it can control the switch to set time, cycle time and countdown through the remote mobile phone, in addition to the TO-Q-SY1-JWT model adss a power consumption statistics function, more accurate power statistics, remote viewing anytime and anywhere, so that the cost of every penny is clear, set according to the power consumption.
- “Smart Life” APP support
- Schedule timing, countdown, loop timing.
- Electricity Metering (Class 2 accuracy)
- Third-party voice control switch by Amazon Alexa echo dot, Google assistant, Tencent’s Xiaowei, Baidu DuerOS
- Working voltage: AC100-240V, 50/60Hz
- Current Frame: 63A (Suggest under 40A)
- Wireless type: Wi-Fi 2.4GHz, ZigBee (Customization)
- Support system: Android, iOS, HarmonyOS.
Technical Data
| Product or component type | Din Rail Smart WiFi switch |
| Poles description | 1P+N (N Pole straight) |
| Function | Timing, Countdown, Loop timing, Metering |
| Rated Current (In) | 1A, 2A, 3A, 4A, 5A, 6A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
| Operating voltage Range | AC 90V – 280V |
| Rated Frequency | 50Hz/60Hz |
| Control Type | Remote, Manual |
| Communication Protocol | WiFi 2.4Hz |
| Operating system support | Android, iOS, HarmonyOS |
| Operating Language | Chinese, English |
| App Language | Follow the operating system language |
| Voice Support | Amazon Alexa, Yandex Alice |
