  • miniature circuit
    breaker

    MCB full form in electrical is Miniature Circuit Breaker. As electrical systems often face challenges, such as overloads and short circuits, which can lead to equipment damage, fires, and even electrocution. These issues can be caused by faulty wiring, overloaded circuits, or the use of inappropriate electrical devices, highlighting the need for effective protection mechanisms, when electrical systems experience overloads or short circuits, sensitive equipment, such as computers, appliances, and machinery, can suffer severe damage, leading to costly repairs or replacements.

    Miniature circuit breaker (MCB) ensure electrical safety in homes offices and other buildings as well as for industrial applications by protecting electrical installations against overloads and short circuits.

    Once a fault is detected, the miniature circuit breaker automatically switches off the electrical circuit to prevent damage to wires and to avoid the risk of fire.

    Risk of Fire

    Unprotected electrical systems can cause excessive heat buildup, leading to fires that can result in significant property damage and even loss of life.

    Electrical Shock Hazards

    Electrical faults can create hazardous conditions for individuals, leading to the risk of electrocution or severe electrical burns.

    PRODUCTS

    Miniature Circuit Breaker MCB TOMC3-63 1P 4.5kA Definition

    Mini Cricuit Breaker Electrical Protection

    Din Rail AC MCB

    Mini Home Circuit Breaker

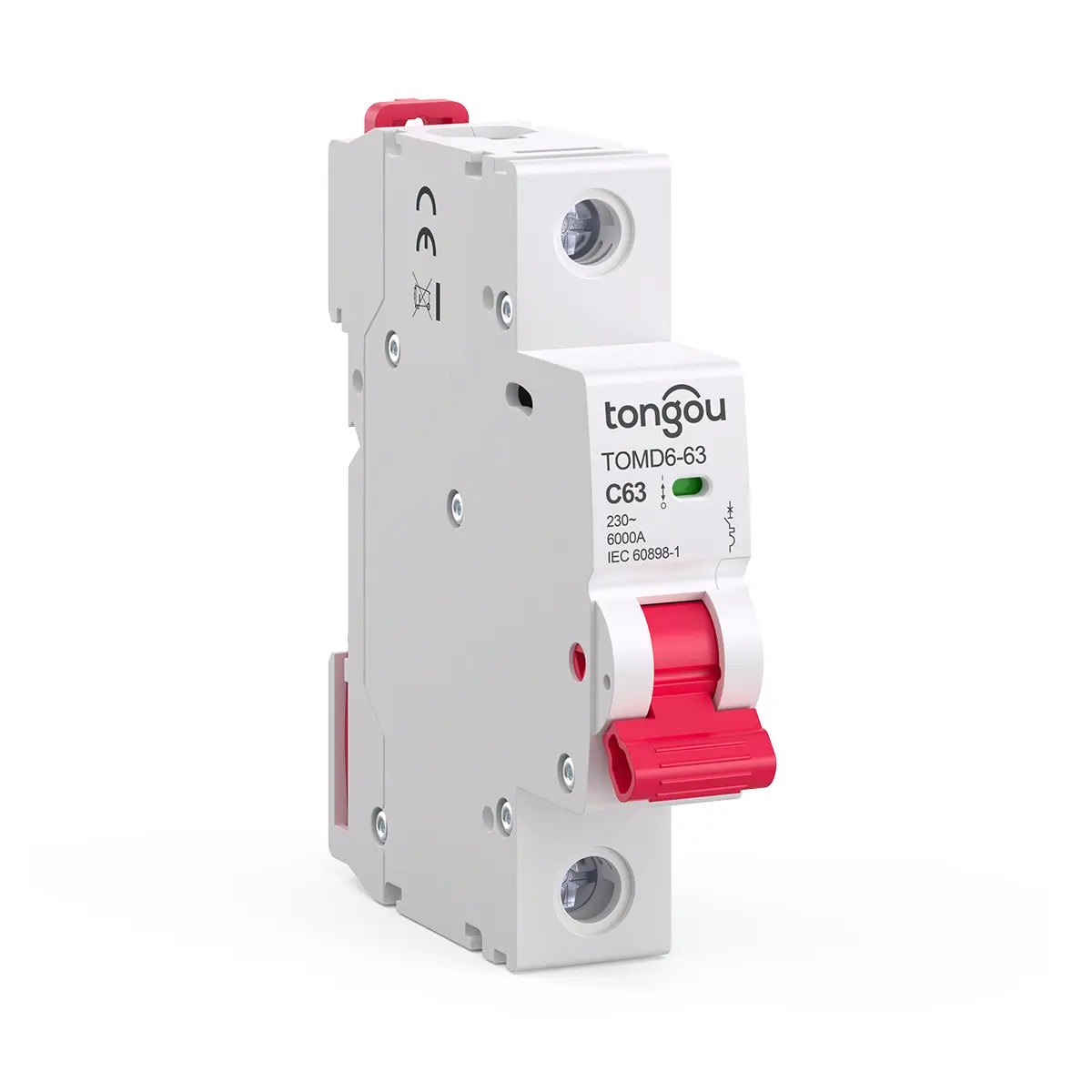

    Curve C MCB Mini Circuit Breaker

    Mini DC Circuit Breaker

    MCB For Solar System

    DC System Mini Circuit Breaker

    What is a Miniature Circuit Breaker (MCB)?

    MCBs are compact electromechanical devices designed to protect electrical circuits from damage caused by overcurrents, such as overloads and short circuits. MCBs are a more advanced and reliable alternative to traditional fuses, which need to be replaced after a single operation.

    How MCBs Work?

    MCBs function by monitoring the current flowing through a circuit. When the current exceeds a predetermined threshold, the MCB’s internal mechanism trips, disconnecting the circuit and stopping the flow of electricity. This rapid disconnection helps prevent damage to electrical equipment, wiring, and most importantly, reduces the risk of fire or electrocution.

    Warranting reliability and safety for people and assets, MCBs are equipped with two tripping mechanisms: the delayed thermal tripping mechanism for overload protection and the magnetic tripping mechanism for short circuit protection.

    Types of Miniature Circuit Breakers (MCB)

    MCBs are available in various types, differentiated primarily by their tripping characteristics. The most common types of MCBs include:

    Miniature circuit breaker mcb graphics

    Type B (Curve B) MCBs

    Type B MCBs are designed to trip at a current level of 3-5 times their rated current. They are commonly used in residential and light commercial applications, where low levels of inrush current are expected, such as lighting circuits and small appliances.

    Type C (Curve C) MCBs

    Type C MCBs trip at a current level of 5-10 times their rated current, making them suitable for commercial and industrial applications with moderate inrush currents, such as motors and transformers.

    Type D (Curve D) MCBs

    Type D MCBs are designed to handle high inrush currents, tripping at 10-20 times their rated current. These MCBs are ideal for heavy industrial applications with large motors, transformers, and other inductive loads.

    MCB Applications and Benefits

    Residential Applications

    In residential settings, MCBs protect lighting circuits, outlets, and appliances from electrical faults, ensuring the safety of occupants and reducing the risk of fire. They are often used in conjunction with Residual Current Devices (RCDs) or Ground Fault Circuit Interrupters (GFCIs) for enhanced protection.

    Commercial Applications

    In commercial environments, MCBs safeguard a wide range of electrical equipment, including office machinery, HVAC systems, and lighting circuits. By providing reliable protection against overloads and short circuits, MCBs help maintain a safe working environment and minimize the risk of costly equipment damage and business downtime.

    Industrial Applications

    In industrial settings, MCBs play a critical role in protecting machinery, motors, and other equipment from electrical faults. They are often used in conjunction with other protective devices, such as motor protection circuit breakers and overload relays, to ensure the safe and efficient operation of complex industrial processes.

    Selecting the Right MCB for Your Application

    When choosing an MCB for a specific application, several factors need to be considered:

    Rated Current

    Select an MCB with a rated current that matches the maximum continuous current of the circuit it is intended to protect. This ensures that the MCB will not trip during normal operation but will disconnect the circuit in the event of a fault.

    Tripping Characteristics

    Choose an MCB with the appropriate tripping characteristics (Type B, Type C, or Type D) based on the expected inrush currents and the nature of the connected loads. This ensures that the MCB will provide adequate protection without unnecessary tripping.

    Voltage Rating

    Ensure that the MCB’s voltage rating is suitable for the system voltage. MCBs are typically available in various voltage ratings, such as 120V, 230V, or 400V, to accommodate different power standards.

    Breaking Capacity

    Select an MCB with a breaking capacity that is equal to or greater than the maximum prospective short-circuit current at the point of installation. This ensures that the MCB can safely interrupt a fault without sustaining damage, the common segmentation capacity is 4.5kA, 6kA, 10kA, and some unconventional usage scenarios require 15kA, 20kA or even higher.

    According to different occasions, miniature circuit breakers have different curve requirements, such as households can choose B and C curves, industrial motors need relatively large starting current support, and product use can choose the D curve. For different loads of power, the current ampere can be selected from 6 to 125A.

    How to Choose TONGOU MCB?

    Make a calculation of the circuit current required to protect each circuit according to the circuit system before installation, select the appropriate number of poles and current, and select the corresponding MCB from our product list, or if you have any questions about how to choose an MCB, send Your inquiry request or question consultation to our mailbox, our team will reply within 24 hours.
