    In the field of electrical engineering, having the right tools to measure and monitor electrical parameters is crucial. One such tool is the DIN rail voltmeter, which has gained popularity for its accuracy and ease of use. This comprehensive guide will cover the essentials of DIN rail voltmeters, explore their various features, and discuss their importance in voltage meter applications.

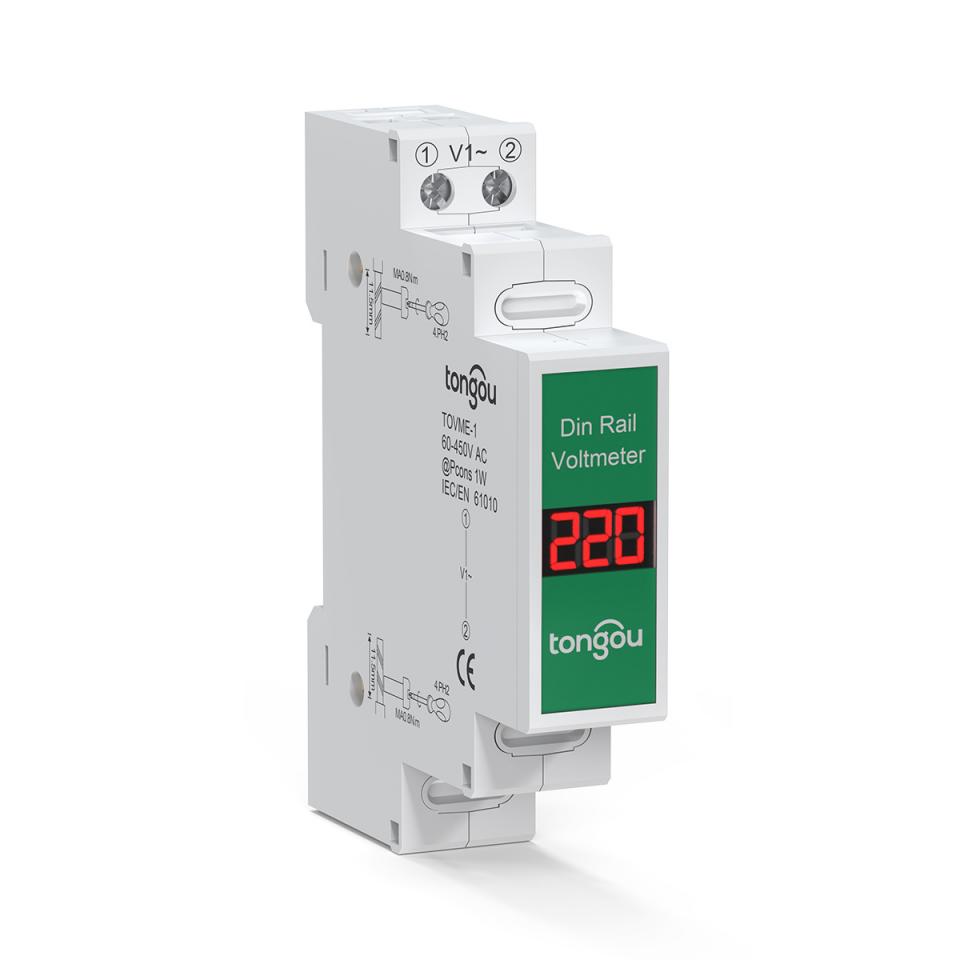

    Din Rail Single Phase Digital Voltmeter - TOVME-1 60-450VAC


    Din Rail Single Phase AC Voltmeter LED Digital Display

    Din Rail Three Phase Digital Voltmeter - TOVME-3 60-450VAC


    Din Rail Three Phase AC Voltmeter LED Digital Display

    Part 1: Understanding DIN Rail Voltmeters

    1.1 What is a DIN Rail Voltmeter?

    A DIN rail voltmeter is a specialized voltage meter designed for easy installation on a DIN rail, a standardized mounting system commonly used in electrical panels. These voltmeters provide precise voltage measurements for a wide range of electrical circuits and are extensively used in industrial, commercial, and residential applications.

    1.2 Key Features of DIN Rail Voltmeters

    DIN rail voltmeters have several features that make them appealing to professionals and DIY enthusiasts alike:

    1. Easy installation: Their compatibility with DIN rail systems allows for simple and quick mounting within electrical panels.
    2. Compact design: DIN rail voltmeters are space-efficient, making them ideal for installations with limited space.
    3. High accuracy: These voltmeters are known for their accuracy, providing reliable voltage measurements.
    4. Versatility: They can be used in a wide variety of applications, including monitoring and controlling electrical systems.
    5. User-friendly interface: Many DIN rail voltmeters come with digital displays and intuitive controls for easy operation.

    1.3 Types of DIN Rail Voltmeters

    There are several types of DIN rail voltmeters available, each with its unique features and capabilities:

    1. Single-phase voltmeters: These devices are designed to measure voltage in single-phase electrical systems.
    2. Three-phase voltmeters: These voltmeters are used for measuring voltage in three-phase electrical systems, often found in industrial settings.
    3. Multi-function voltmeters: These advanced devices not only measure voltage but also offer additional functionalities, such as current, power, and energy measurements.

    Part 2: Importance of Voltage Meters

    2.1 Monitoring and Control

    Voltage meters, including DIN rail voltmeters, play a vital role in monitoring and controlling electrical systems. They provide real-time information on voltage levels, allowing for timely adjustments to maintain optimal system performance and prevent potential issues such as overvoltage or undervoltage.

    2.2 Safety

    By monitoring voltage levels, voltage meters contribute to the overall safety of an electrical system. They can help identify potential hazards and enable prompt intervention to avoid damage to equipment or harm to personnel.

    2.3 Energy Efficiency

    Voltage meters can help identify inefficiencies within an electrical system. By monitoring voltage levels and identifying irregularities, users can optimize system performance, leading to improved energy efficiency and reduced costs.

    2.4 Equipment Maintenance

    Regular voltage monitoring helps identify issues with equipment before they escalate into larger problems. Voltage meters can detect signs of wear and tear, allowing for proactive maintenance and reducing the likelihood of equipment failure.

    Part 3: Choosing the Right DIN Rail Voltmeter

    3.1 Consider Your Application

    When selecting a DIN rail voltmeter, consider the specific needs of your application. Factors such as system type (single-phase or three-phase), required measurement range, and additional desired features (e.g., multi-function capabilities) should be taken into account.

    3.2 Read Reviews

    Before purchasing a DIN rail voltmeter, read reviews from other users to gain insight into the device’s performance, reliability, and ease of use. This information can help you make a more informed decision and avoid potential disappointment or issues down the road.

    3.3 Seek Professional Advice

    If you’re uncertain about which DIN rail voltmeter to choose, consult an experienced electrician or electrical engineer for guidance. They can provide expert recommendations based on your specific needs and requirements. Please consult our professional sales technical team to solve your confusion

    Part 4: Installation and Maintenance of DIN Rail Voltmeters

    4.1 Installation

    To ensure the proper functioning and safety of a DIN rail voltmeter, follow these general installation guidelines:

    1. Always turn off the power supply to the electrical panel before installation.
    2. Meticulously examine the manufacturer’s guidance and follow their suggested procedures.
    3. Mount the voltmeter securely on the DIN rail within the electrical panel, ensuring it’s properly aligned and seated.
    4. Connect the voltage input wires according to the manufacturer’s specifications and your system requirements.
    5. Double-check all connections and secure any loose wires before turning the power back on.

    4.2 Maintenance

    Regular maintenance is crucial for the longevity and accuracy of your DIN rail voltmeter. Here are some general maintenance tips:

    1. Periodically inspect the device for signs of wear, damage, or corrosion.
    2. Keep the voltmeter clean and free of dust and debris.
    3. Routinely verify the voltmeter’s accuracy using a known voltage reference or by comparing its readings to another trusted voltage meter.
    4. Update firmware or software as needed, following the manufacturer’s guidelines.


    DIN rail voltmeters are valuable tools in the realm of electrical engineering, offering precise voltage measurements and user-friendly design. By understanding their features, importance, and proper usage, you can effectively monitor and control your electrical system, ensuring safety, energy efficiency, and optimal performance. When selecting a DIN rail voltmeter, consider your application’s specific needs, compare different models, and seek professional advice if needed. With proper installation and maintenance, a DIN rail voltmeter can be a reliable and long-lasting addition to your electrical toolkit.
