Description

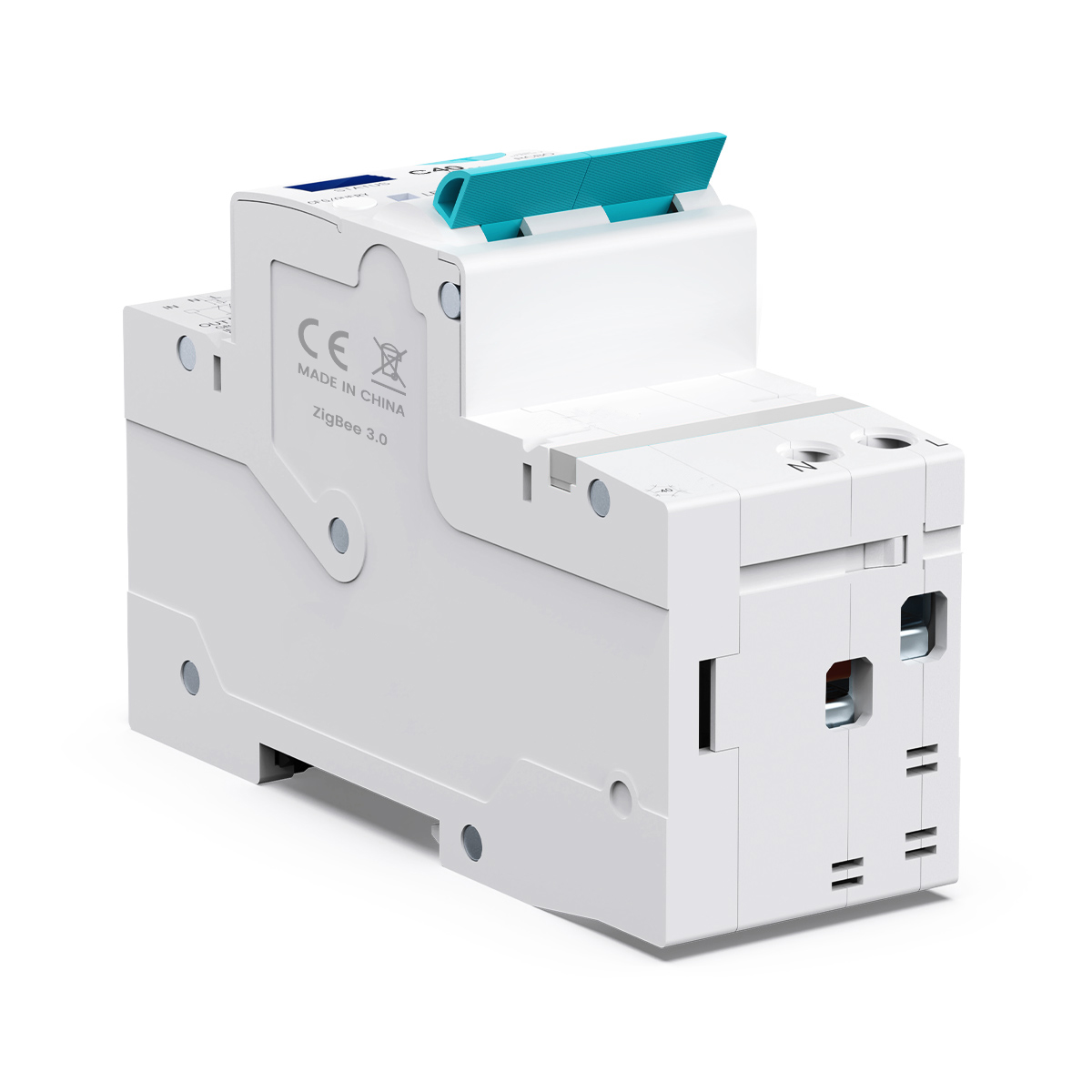

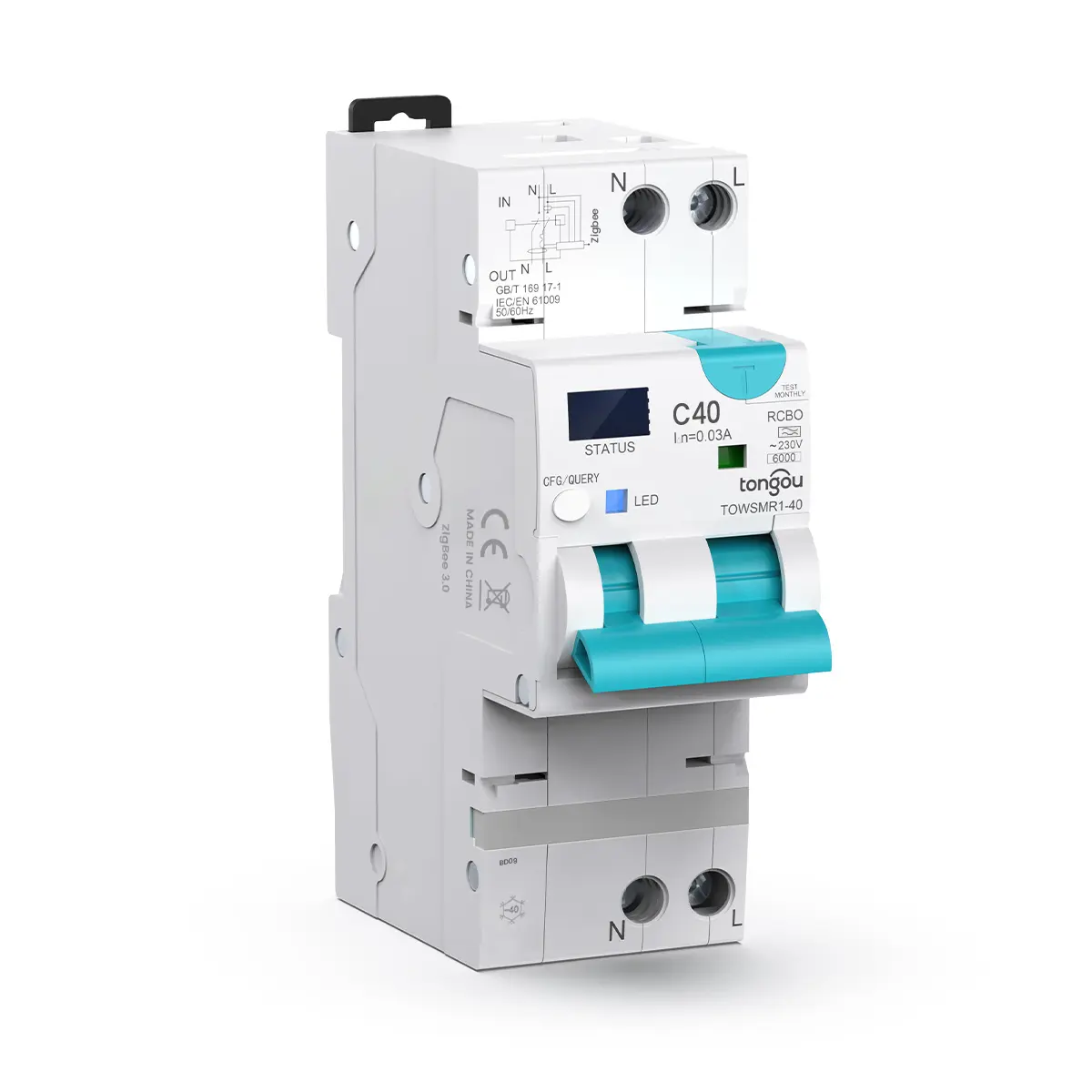

Zigbee Enabled Circuit Breaker Application
Zigbee enabled circuit breaker can be widely used in household, factories, sduent dormitroy, farmland, muicipal works and can intelliently remote control water pump, water heater, underfloor heating equiement,etc.
Function
①Enabled circuit breaker provides protection against indirect contact by human body.
②Provides complementary protection against direct contact by human body.
③Effectively protects electric equiment against insulating failure.
④Provides comprehensive protection to household and commercial systems.
Feature
①Remote control at anytime from anywhere(By Tuya APP).
②Voice control with Amazon Alexa and Google home(By Tuya APP).
③Automatic reclosing.
④Overload and short circuit protection.
⑤Over volatage and under voltage protection.
⑥Timely switch on/off.
⑦Time delay switch on/off.
⑧with overcurrent protection.
Product or component type | TOSMR1 |
Poles description | 1P+N |
Control Type | Remote, Manual |
Rated Current (In) | 1A – 40A |
Residual Current Setting (mA) | 10mA – 100mA |
Operating voltage Range | AC 145V – 295V |
Over-voltage Threshold (V) | 245V – 295V |
Under-voltage Threshold (V) | 145V – 220V |
Terminal Temperature Threshold (℃) | -40℃ – 100 ℃ |
Over-power Threshold (W) | 5W – 25000W |
Rated Frequency | 50Hz/60Hz |
Operating system support | Android, iOS, HarmonyOS |
Operating Language | Chinese, English, and Other |
Voice Support | Amazon Alexa, Google Home |
App Language | Follow the operating system language |
Over-current Threshold (A) | TOWSMR1-20 1A – 20A, TOWSMR1-40 20A – 40A |
Communication Protocol | WiFi 2.4Hz (default), ZigBee 3.0, 4G (customization) |
Function | Timing, Electricity monitoring, Earth leakage protection, Over-current Protection, Short-circuit protection, Under-voltage protection, Over-voltage protection |
