General

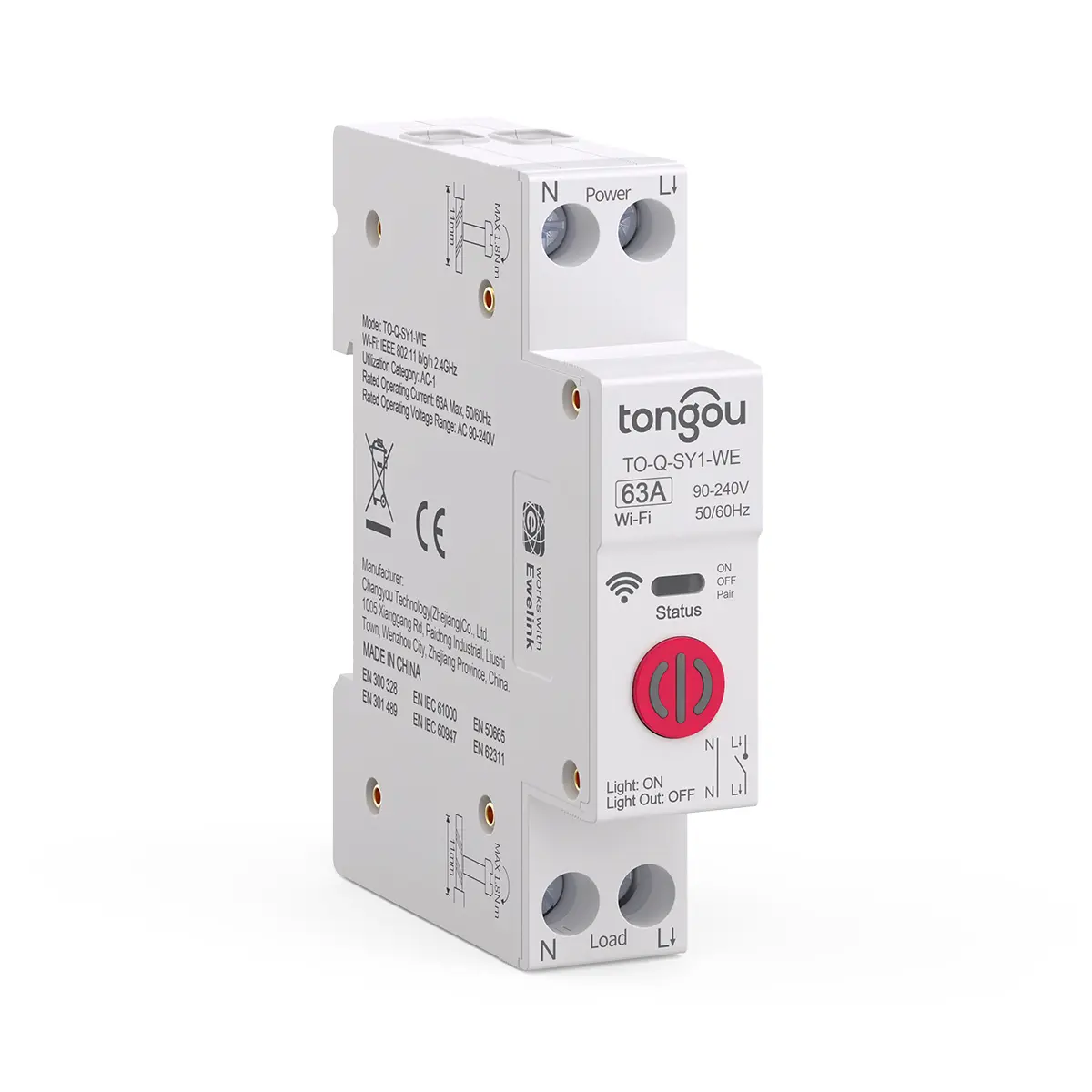

Din Rail eWeLink Wi-Fi TO-Q-SY1-WE Smart Switch adss a power consumption statistics function, more accurate power statistics, remote viewing anytime and anywhere, so that the cost of every penny is clear, set according to the power consumption.
- “Smart Life” APP support
- Schedule timing, countdown, loop timing.
- Electricity Metering (Class 2 accuracy)
- Third-party voice control switch by Amazon Alexa echo dot, Google assistant, Tencent’s Xiaowei, Baidu DuerOS
- Working voltage: AC100-240V, 50/60Hz
- Current Frame: 63A (Suggest under 40A)
- Wireless type: Wi-Fi 2.4GHz, ZigBee (Customization)
- Support system: Android, iOS, HarmonyOS.
Technical Data
Product or component type | Din Rail eWeLink Wi-Fi Smart Relay Switch |
Poles description | 1P+N (N Pole straight) |
Function | Timing, Countdown, Loop timing, Metering |
Rated Current (In) | 1A, 2A, 3A, 4A, 5A, 6A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
Operating voltage Range | AC 90V – 280V |
Rated Frequency | 50Hz/60Hz |
Control Type | Remote, Manual |
Communication Protocol | WiFi 2.4Hz |
Operating system support | Android, iOS, HarmonyOS |
Operating Language | Chinese, English |
App Language | Follow the operating system language |
Voice Support | Amazon Alexa, Yandex Alice |
