  • TYPE B RCD

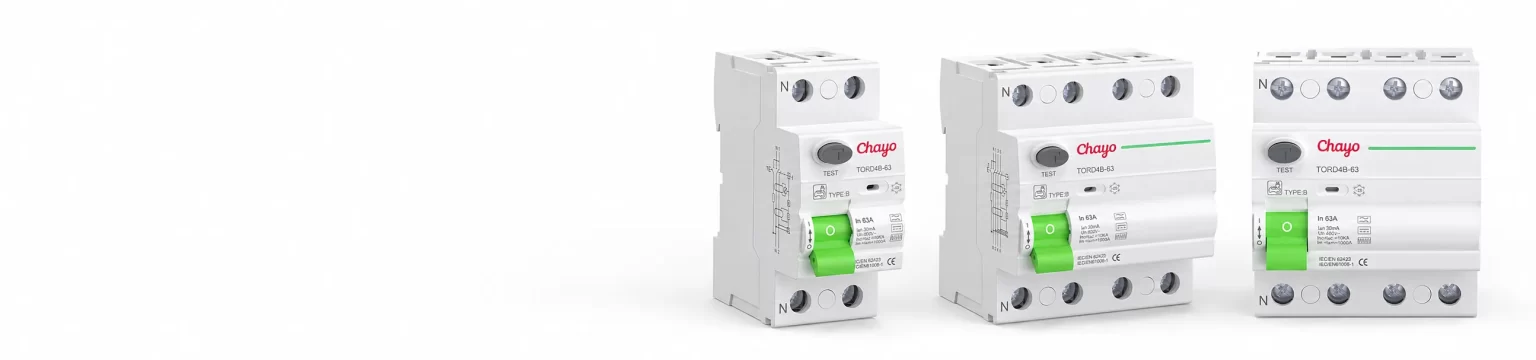

    Type B Residual Current Devices (RCDs) represent a significant advancement in electrical safety technology, it refers to the device’s ability to detect not only sinusoidal AC residual currents but also smooth DC residual currents and other mixed frequency currents.


    Type B RCDs are capable of detecting residual currents across a spectrum, from standard 50 Hz AC currents to high-frequency currents up to 1 kHz, and pure DC currents. This wide range makes them exceptionally versatile.

    Reducing the risk of fire or electrocution through automatic disconnection of the electrical supply relies on the selection of the correct type of RCD. Type B RCD is suitable for loads with three-phase rectifiers, such as variable speed drives, photovoltaic systems, electric vehicle charging stations and medical equipment.

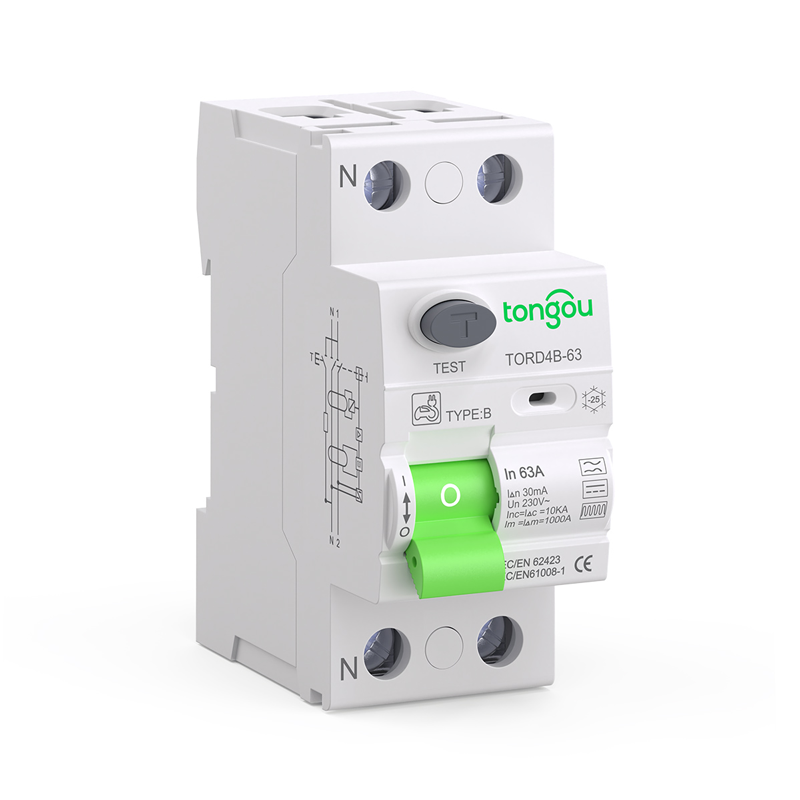

    It’s primarily used in residential and commercial settings where single-phase power supply is prevalent, and advanced protection against various types of residual currents is needed

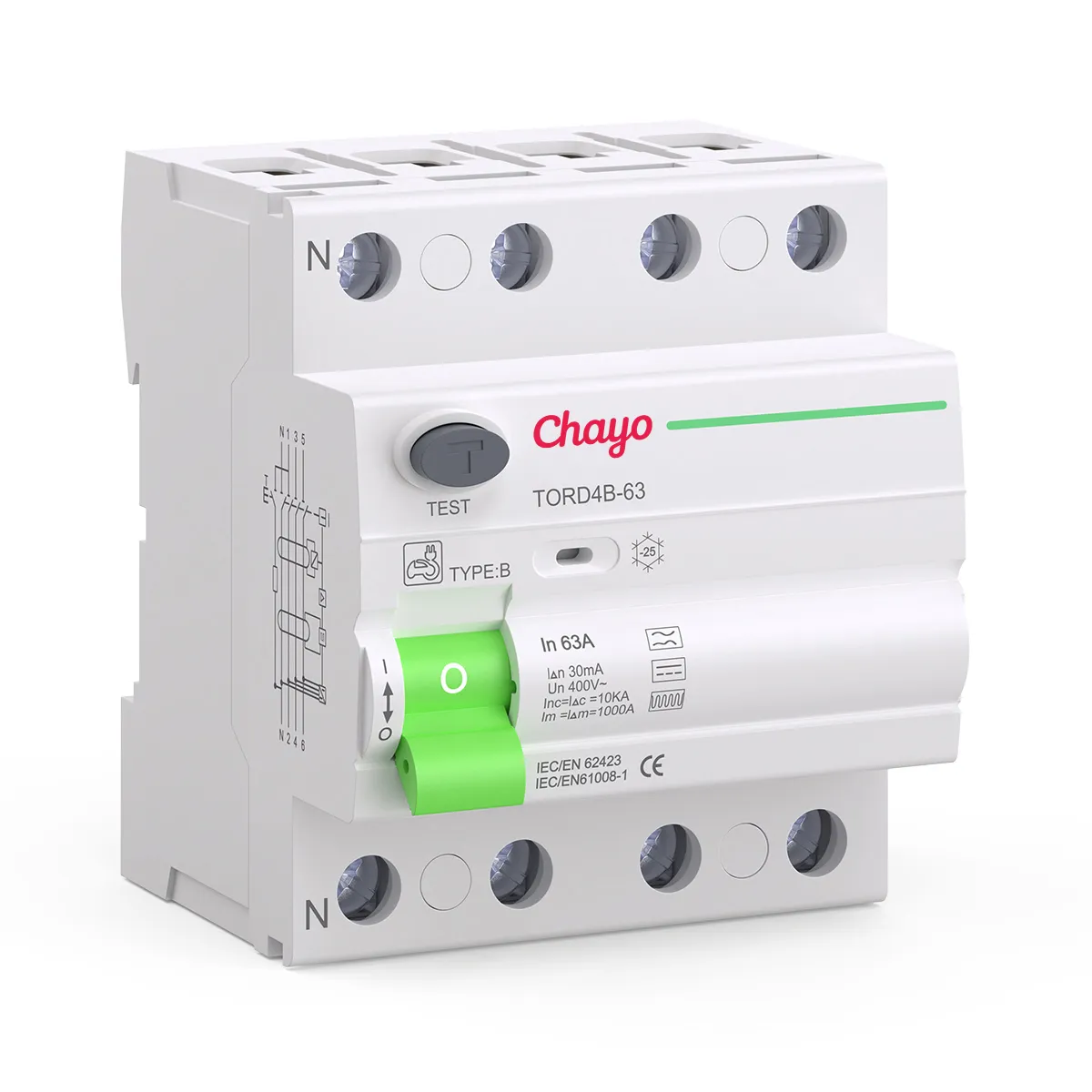

    Given its four-pole design, it’s ideal for three-phase systems found in industrial installations, large commercial complexes, and infrastructures where three-phase power is used

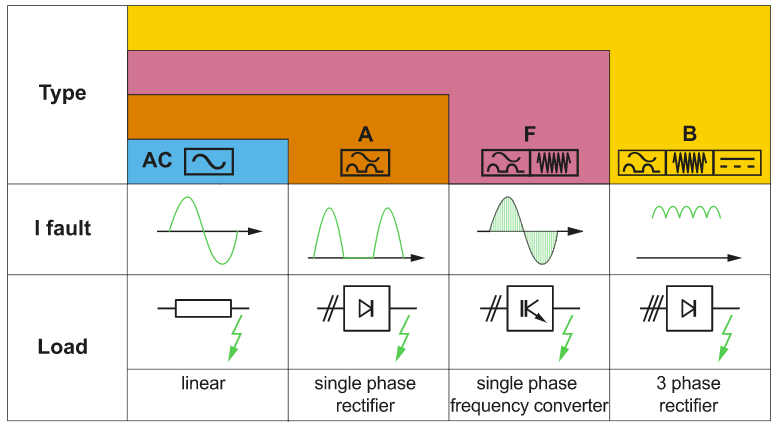

    Type-b-RCD Symbol Description

    The Difference Between a Type A and Type B RCD

    Type A RCD ensures tripping for residual AC currents and pulsating DC currents, type B RCD ensures tripping for residual AC currents, pulsating DC currents and smooth DC currents. The function of type B RCD can include common type A RCD and type AC RCD.

    How Does Type B RCD Work?

    Type B RCD is usually designed with two residual current detection systems.

    The first uses a technology similar to type AC and type A RCD, which is independent of voltage. This means that even if the line voltage is lost, residual current faults can still be detected and personnel are still protected.

    Another one uses “fluxgate” technology to enable RCD to detect smooth DC currents

    Applications Requiring Type B RCD Include

    1. Electric vehicle charging system with smooth residual DC current which is greater than 6 mA
    2. Photovoltaic (PV) system
    3. Frequency converters
    4. UPS installations
    5. High-frequency power converters
    6. Building site power supply cabinets
    7. Inverters
    8. Lifts
    9. Welding equipment

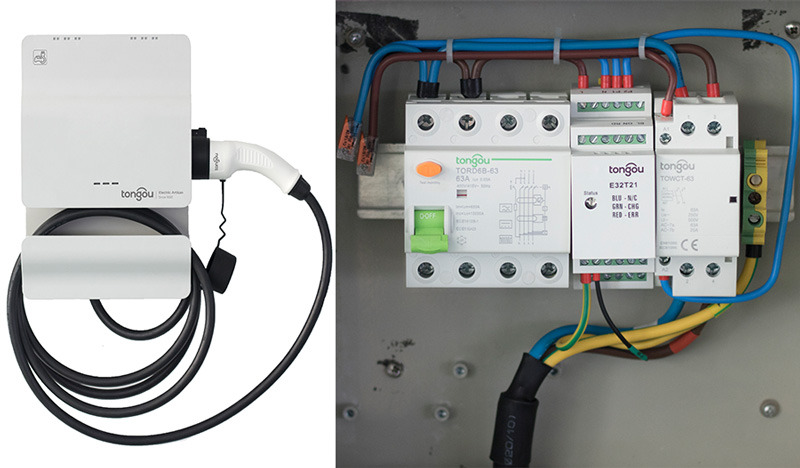

    The Most Common Application Range of Type B RCD

    1. Electric Vehicle Charging (EV) System
    2. Photovoltaic (PV) System

    With the development of new energy vehicle technology, every household has replaced it with new energy vehicles, and EV Supply Equipment has entered every household at this time.

    In the field of electric vehicles, the internal charging topology is more complicated, and the electric vehicle power battery is a DC power supply system. Therefore, the current components are more complicated, including AC current and pulsating current, especially in this special application scenario. In order to protect the safety of life and property, it is recommended to install a Type B leakage circuit breaker with a higher protection level on the EV Supply Equipment.

    The solar energy system is from the solar version to the solar control system, and then the frequency conversion control system, and finally distributed to the terminal power distribution system.

    Due to the conversion of DC and AC, there are more interference factors inside the system. We need to use the corresponding DC circuit breaker and type B RCD protection equipment and human’s body, it is also necessary to reduce the blinding effect from corresponding interference

    The Choice of Different RCDs in the Circuit

    The selective trip coordination between RCDs is realized by time delay or circuit subdivision. This method avoids any RCD tripping, except for equipment immediately upstream of the fault location. In order to achieve delay operation, the selective RCD called Type S can withstand the residual current within a specified time without tripping.

    By choosing different trip thresholds and tripping times, the distinction between RCDs can be achieved. In addition, in terms of sensitivity to direct current, by selecting RCDs with a higher tripping level for the higher level of the circuit, you will avoid any false interferences caused by direct current. In other words, the lower-level RCD in the circuit, which is closer to the ground leakage fault, will trip faster at the lower threshold. This will isolate the fault and keep the rest of the circuit continuity.

    Tongou Electrical offers a full range of RCDs, from additional equipment for circuit breakers to complete residual current circuit breakers (RCCB), including type B, S, and type A rcd models.
