TO-Q-SYS Smart Meter
TO-Q-SYS Smart Meter
Smart meters offer a host of benefits over traditional metering systems:
Real-Time Data: The ability to provide real-time usage statistics enables both consumers and utilities to make more informed decisions about energy usage.
Demand Response: Utilities can more efficiently plan for peak demand times, potentially saving costs and reducing the need for additional energy generation.
Remote Monitoring: These meters can be read remotely, eliminating the need for manual meter readings and potential errors or fraud associated with it.
Dynamic Pricing: Real-time data also allows utilities to introduce more dynamic pricing models that can better reflect the actual costs of providing energy at different times.
Environmental Impact: By helping to identify and eliminate inefficiencies in energy consumption, smart meters can also play a role in reducing an individual’s or organization’s carbon footprint.

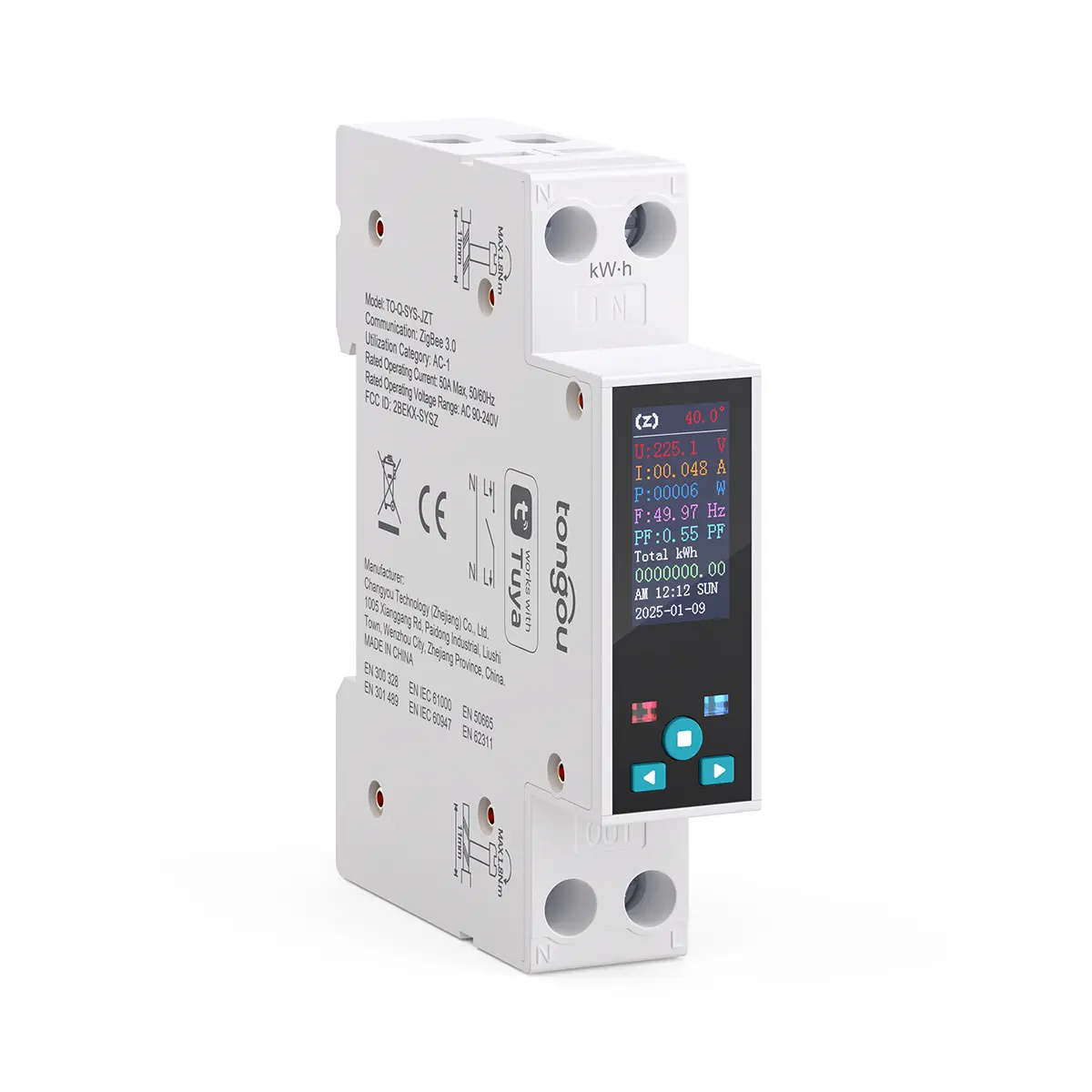

| TO-Q-SYS-JZT Zigbee Smart Meter | |
| Product or component type | TO-Q-SYS-JZT Din Rail Zigbee Smart Meter |
| Poles description | 1P + N (Direct N pole) |
| Control Type | Remote, Manual |
| Rated Current (In) | 1A – 50A |
| Operating voltage Range | AC 90V – 295V |
| Over-voltage Threshold (V) | 240V – 295V |
| Under-voltage Threshold (V) | 90V – 220V |
| Terminal Temperature Threshold (℃) | -25℃ – 100 ℃ |
| Over-power Threshold (W) | 5W – 25000W |
| Rated Frequency | 50/60Hz |
| Over-current Threshold (A) | 1A – 63A |
| Operating system support | Android, iOS, HarmonyOS |
| Operating Language | Chinese, English, and Other |
| Voice Support | Amazon Alexa, Google Home |
| App Language | Follow the operating system language |
| Communication Protocol | ZigBee 3.0, 4G (customization), Local. |
| Function | Timing, Electricity Consumption, Over-current Protection, Short-circuit protection, Under-voltage protection, Over-voltage protection |
| Active Energy Accuracy | Class 1 |
| Initial Value | 100mA |
