In the realm of electrical and electronic installations, the integration of components in a systematic, organized manner is paramount. This is where DIN rails, a standard mounting system used worldwide, come into play. The DIN rail system streamlines the assembly process, ensuring components are securely fastened and easily accessible. This article explores the essentials of DIN rails, their historical development, types available, applications, installation guidance, and addresses commonly asked questions.
A DIN rail is a metal rail of a standard type widely used for mounting circuit breakers and industrial control equipment inside equipment racks. These rails are typically made from cold-rolled carbon steel sheet with a zinc-plated or chromated bright surface finish. The acronym “DIN” comes from “Deutsches Institut für Normung,” which means “German Institute for Standardization.
The adoption of DIN rails in modern electrical and electronic installations is not merely a matter of convenience; it represents a significant leap in installation safety, efficiency, and standardization.
1. Standardization and Compatibility
The DIN rail system ensures that components from different manufacturers can be mounted together seamlessly, thanks to the standardized sizes and shapes. This compatibility is invaluable in complex systems that require integration of diverse components.
2. Flexibility and Scalability:
Systems mounted on DIN rails are inherently more flexible. Components can be added, removed, or repositioned with relative ease, allowing systems to evolve with changing needs without requiring a complete overhaul.
3. Safety and Reliability:
DIN rails provide a secure foundation for mounting critical components, reducing the risk of loose connections that can lead to failures or hazards. The organized arrangement facilitated by DIN rails also enhances airflow, which is vital for maintaining optimal operating temperatures and preventing overheating.
4. Ease of Maintenance and Troubleshooting:
An organized DIN rail setup significantly simplifies maintenance and troubleshooting tasks. Technicians can quickly identify and access the necessary components, reducing downtime and enhancing system reliability.
The DIN rail standard originated in Germany and has seen widespread adoption across Europe before becoming a global standard. The development of the DIN rail provided a much-needed solution to the problem of mounting various control equipment and accessories in a compact, orderly fashion. This standardization has, over the years, facilitated international trade in electrical components and systems by ensuring compatibility and interoperability.
TS35 Rail (Top Hat) | The TS35 rail is distinguished by its ‘hat’-shaped profile, making it the go-to choice for a variety of industrial and commercial applications. It offers a balance of strength and versatility, suitable for mounting everything from circuit breakers to control devices. |
TS32 Rail | Slightly narrower than the TS35, the TS32 rail is useful in applications where space is at a premium. It still offers considerable mounting strength but is best suited for lighter-weight components. |
TS15 Rail (Miniature) | The TS15 rail, the smallest standard size, is designed for very light-duty applications or where space is extremely limited. It is ideal for mounting small terminal blocks, relays, and similar low-weight devices. |
G-Rail | A less common variant, the G-rail, is designed for heavier-duty applications. It features a unique profile that provides additional strength for supporting weightier components. |
By understanding these types and their characteristics, engineers and installers can make informed decisions when planning and executing installations, ensuring that each component is supported appropriately for its size, weight, and operational demands.
Installing DIN rails might seem straightforward, but paying attention to details can significantly impact the efficiency and durability of the installation. Here are expanded tips and considerations:
1. Selecting the Right Rail:
Before installation, ensure you’ve selected the appropriate DIN rail type for your components and environment. The choice between types such as TS35, TS32, and TS15 will depend on the size and weight of the equipment to be mounted.
2. Environment Compatibility:
Consider the material of the DIN rail in relation to the environmental conditions it will face, such as high humidity, corrosive substances, or extreme temperatures. Stainless steel or aluminum rails may be preferable in harsh conditions.
3. Proper Anchoring:
Securely anchoring the DIN rail is crucial to prevent movement that could lead to wear or disconnection of components. Use sufficient mounting hardware suitable for the surface to which the rail is being attached.
4. Spacing and Organization:
Allow ample space between components for heat dissipation and ease of maintenance. Utilizing DIN rail covers, separators, and end clamps can aid in managing space efficiently and adding an extra layer of safety.
5. Labeling:
Clearly label sections or individual components on the DIN rail for easy identification. This practice is invaluable during troubleshooting and future modifications.
6. Regular Inspection:
Once installed, inspect your DIN rails and mounted components periodically for signs of wear, loose fittings, or corrosion. Proactive maintenance can prevent system failures.
Q: Are DIN rails only available in metal?
A: While metal is the traditional material, some DIN rails are made from alternative materials like aluminum or thermoplastic, catering to specific environmental conditions or requirements.
Q: Can DIN rails be cut to length?
A: Yes, DIN rails can be cut to any desired length, allowing for custom installations tailored to specific spaces or configurations.
Q: How do I choose the right type of DIN rail for my installation?
A: The choice depends on the equipment you plan to mount, the available space, and the environmental conditions of the installation site. The TS35 rail is a versatile option suitable for most applications.

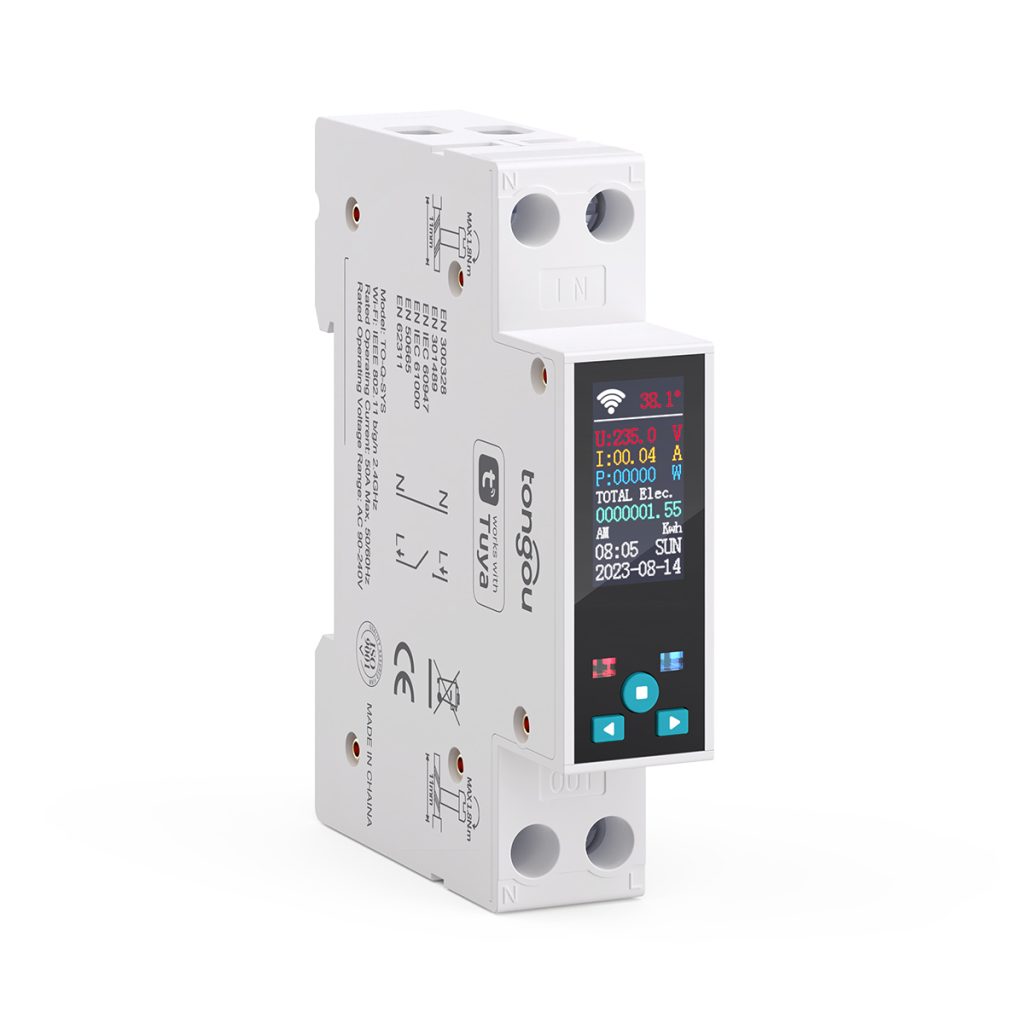

Tongou Smart Series products include smart meters, smart switches, smart miniature circuit breakers, and smart RCBOs, all of which are integrated with guide rail design, easy to install and simple to operate.
DIN rails have become an indispensable part of electrical and electronic installations, facilitating a structured, standardized approach to component integration. Their evolution and the variety of types available today highlight their adaptability and the critical role they play in modern electrical engineering. Whether for industrial control systems, power distribution, or data center management, understanding the basics of DIN rails, their applications, and the correct installation methods is crucial for ensuring efficient, reliable systems.
