Note:
Wiring: Power must enter from the top and must be a live line + neutral (L+N)
This item is a WiFi Smart Relay Switch, and does not support the ZigBee function
Feature:

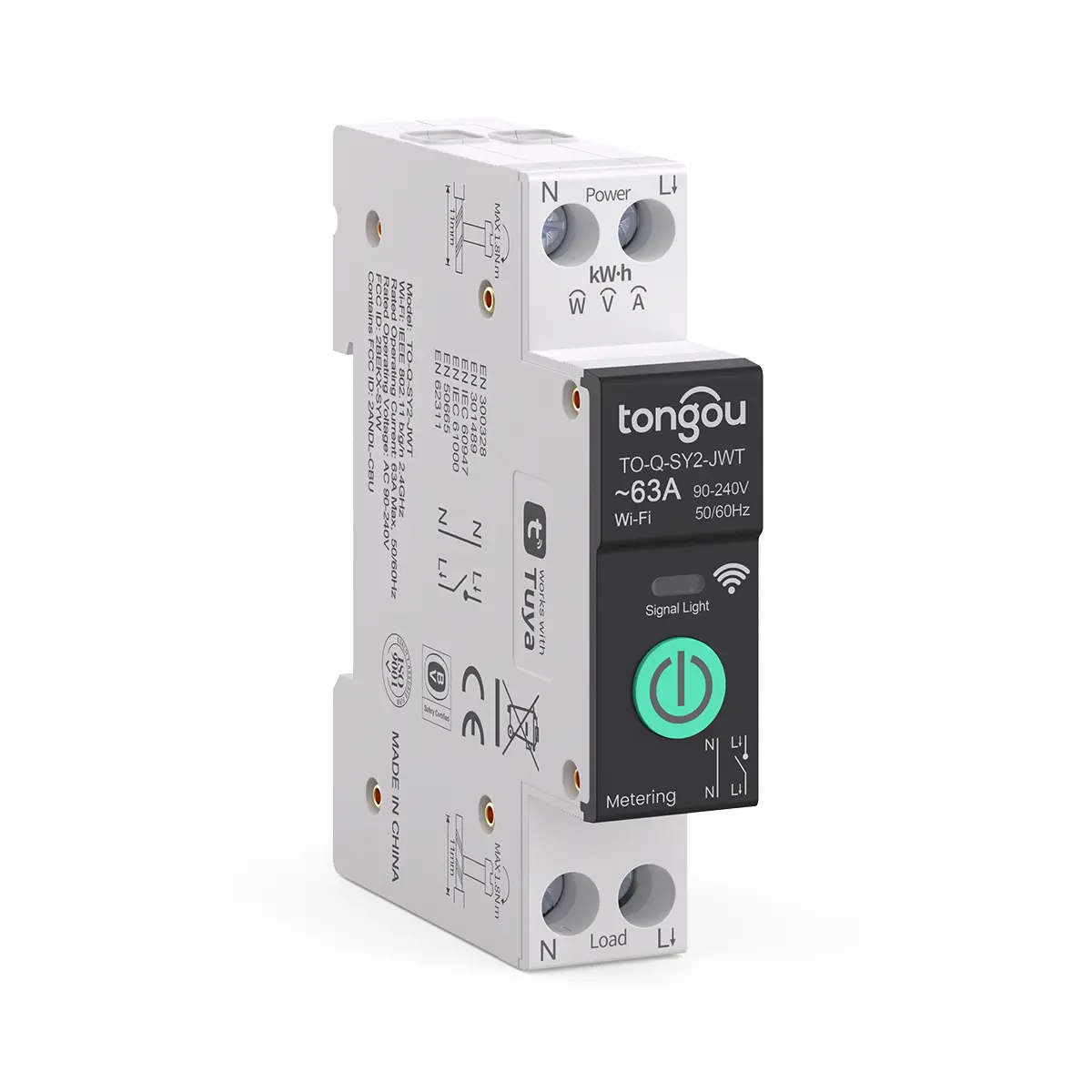

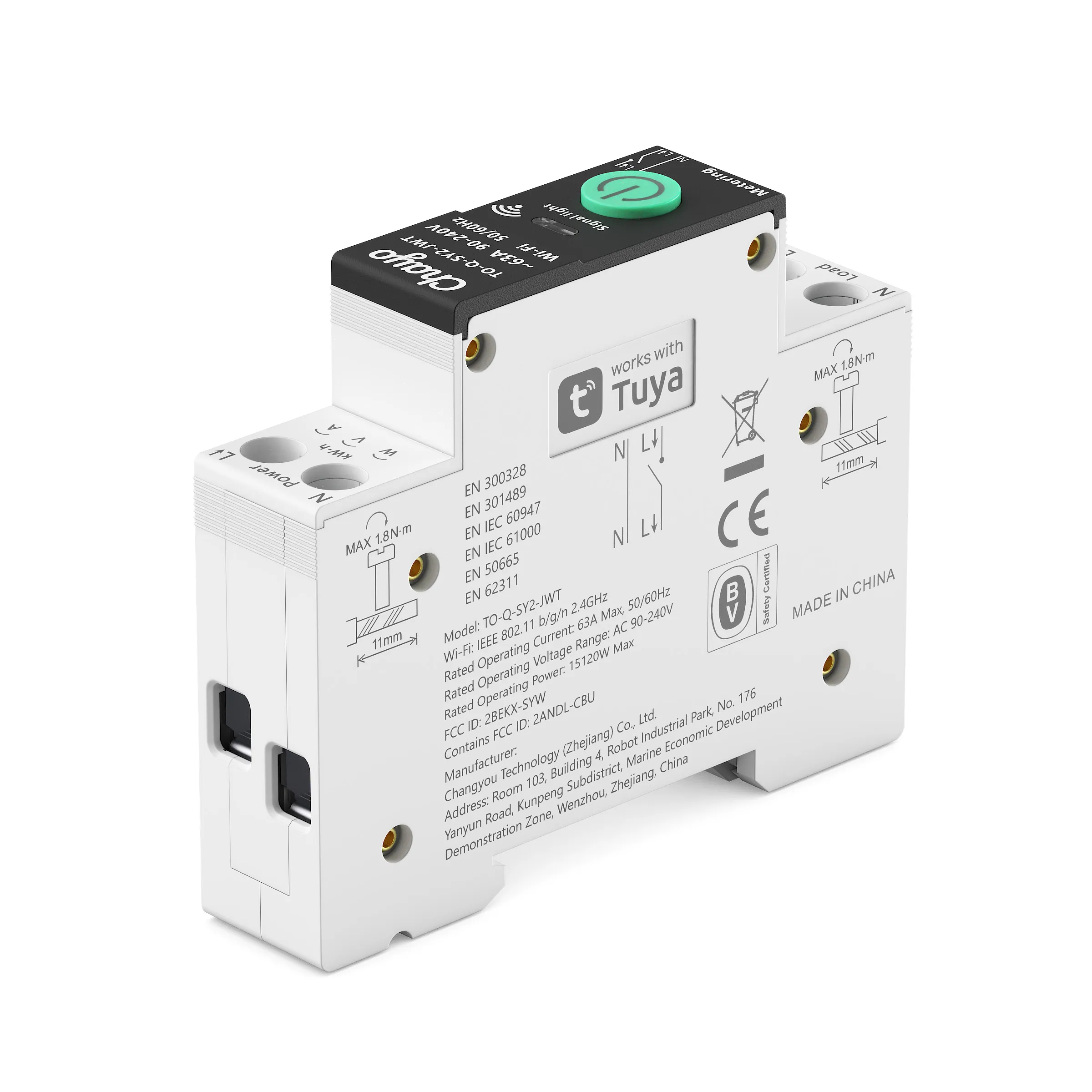

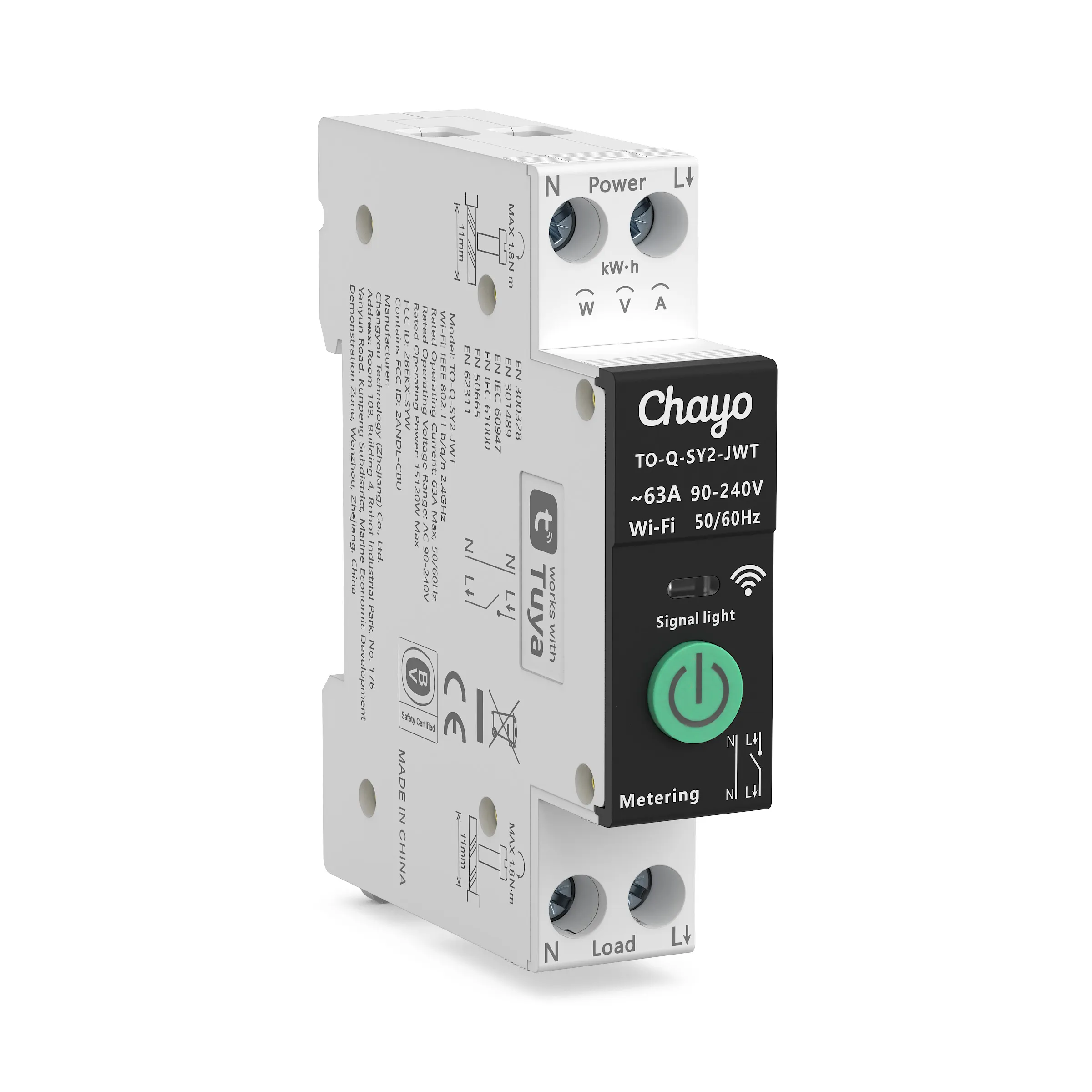

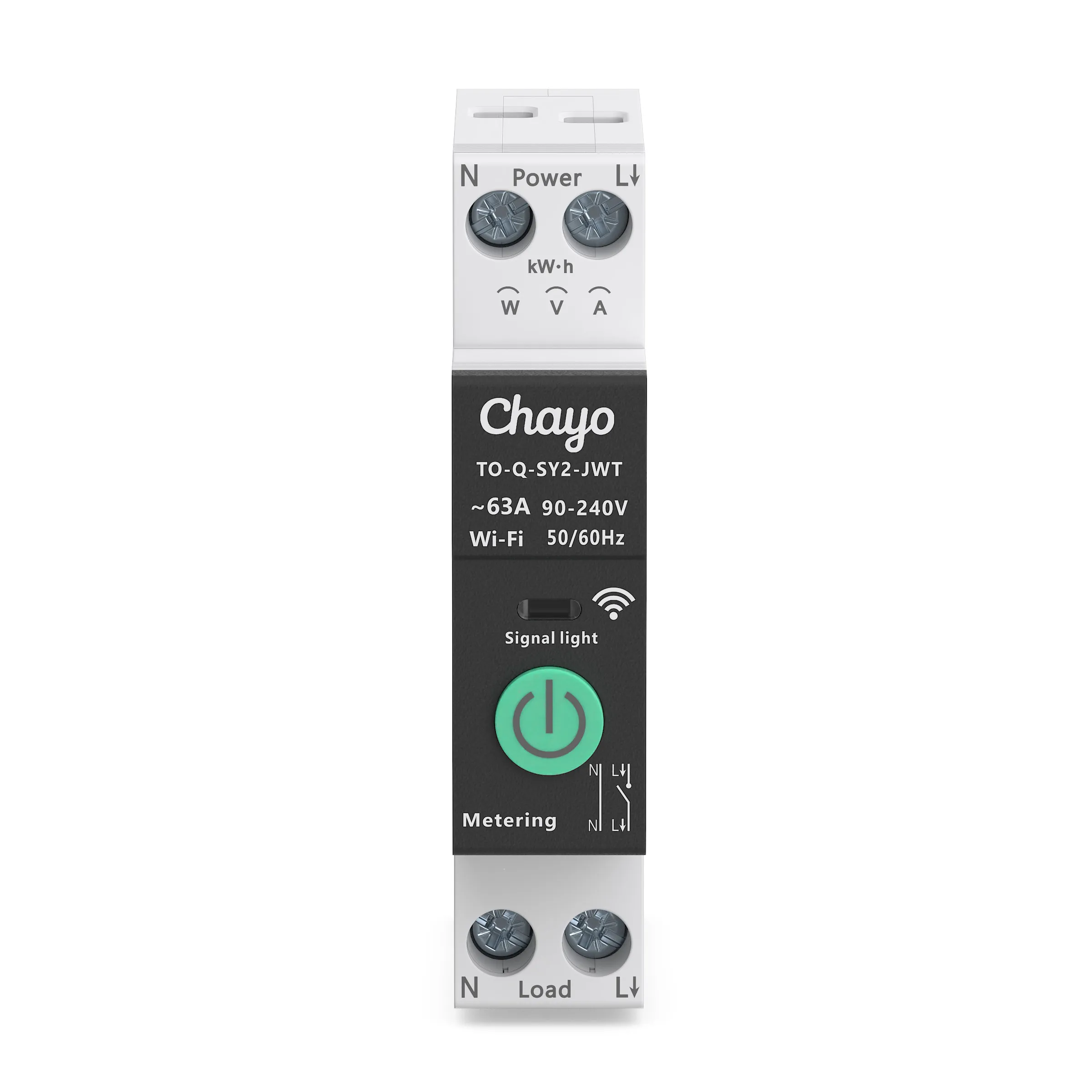

This item is a WiFi Smart Relay Switch. With Over-current Protection and Under-voltage Protection and Over-under-voltage Protection, The rated current is adjustable in APP, 1-63A
Over-current protection and under-voltage protection
Remote control at any time from anywhere by TUYA APP / Smart Life APP
Smart Life app on mobile, no distance limit
Schedule / Timing, countdown, cycle timing
Voice control by Amazon Alexa echo dot / Google Assistant
Technical Data
| Product or component type | Din Rail WiFi Smart Relay Switch |
| Poles description | 1P+N (N Pole straight) |
| Function | Timing, Countdown, Loop timing, Metering |
| Rated Current (In) | 1A, 2A, 3A, 4A, 5A, 6A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
| Operating voltage Range | AC 90V – 280V |
| Rated Frequency | 50Hz/60Hz |
| Control Type | Remote, Manual |
| Communication Protocol | WiFi 2.4Hz |
| Operating system support | Android, iOS, HarmonyOS |
| Operating Language | Chinese, English |
| App Language | Follow the operating system language |
| Voice Support | Amazon Alexa, Yandex Alice |
