DC SURGE PROTECTOR Eliminate the risk of lightning strikers and make life better.
Compliant with IEC61643-31:2018
Compliance with safe creepage distances (10mm)
TOSP series 20KA~40KA SPD Protect DC Surge Protector Solar, protect against lightning surge voltage in solar system (photovoltaic power supply system).
These units must be installed in parallel on the DC networks to be protected and provide common and different modes protection. Its installed location are recommended at both ends of the DC power supply line, if the line routing is external and long.
High energy MOVs equipped with specific thermal disconnectors and related failure indicators.
Technical Data

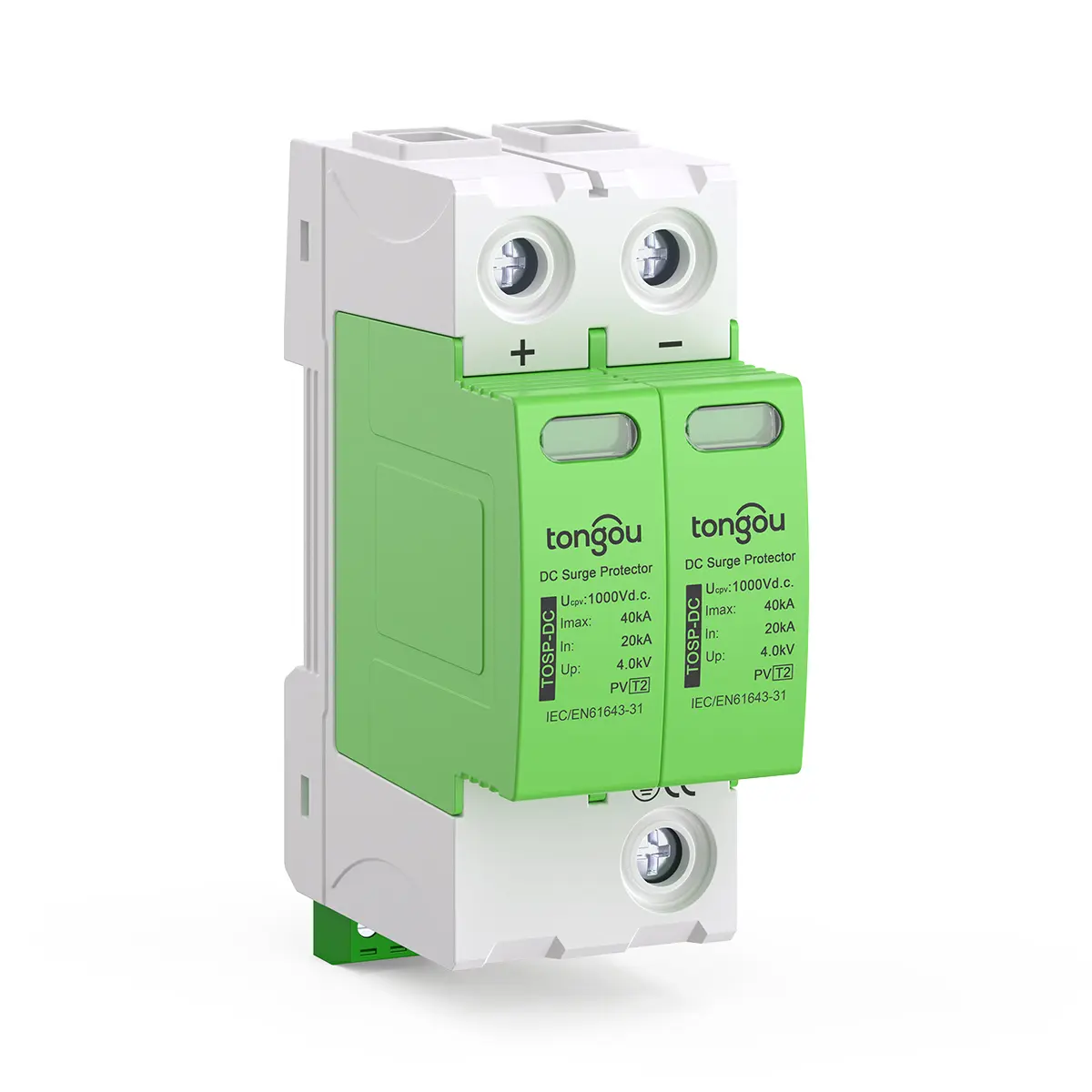

TOSP-2D Surge Protective Device | |
| Model Number | TOSP-2D |
| Electricity Type | DC |
| Switch Style | Surge Protective Device |
| Poles Number | 2P |
| Nominal Discharge Current | 20KA |
| Max. Discharge Current | 40KA |
| Max.Continuous Operating Voltage | 1000V |
| Brand Name | Tongou |
| Standard | IEC61643-31 |
| Meet the Safety Creepage Distance | 10mm |
| Certificate | CE CB |
