Description
Description

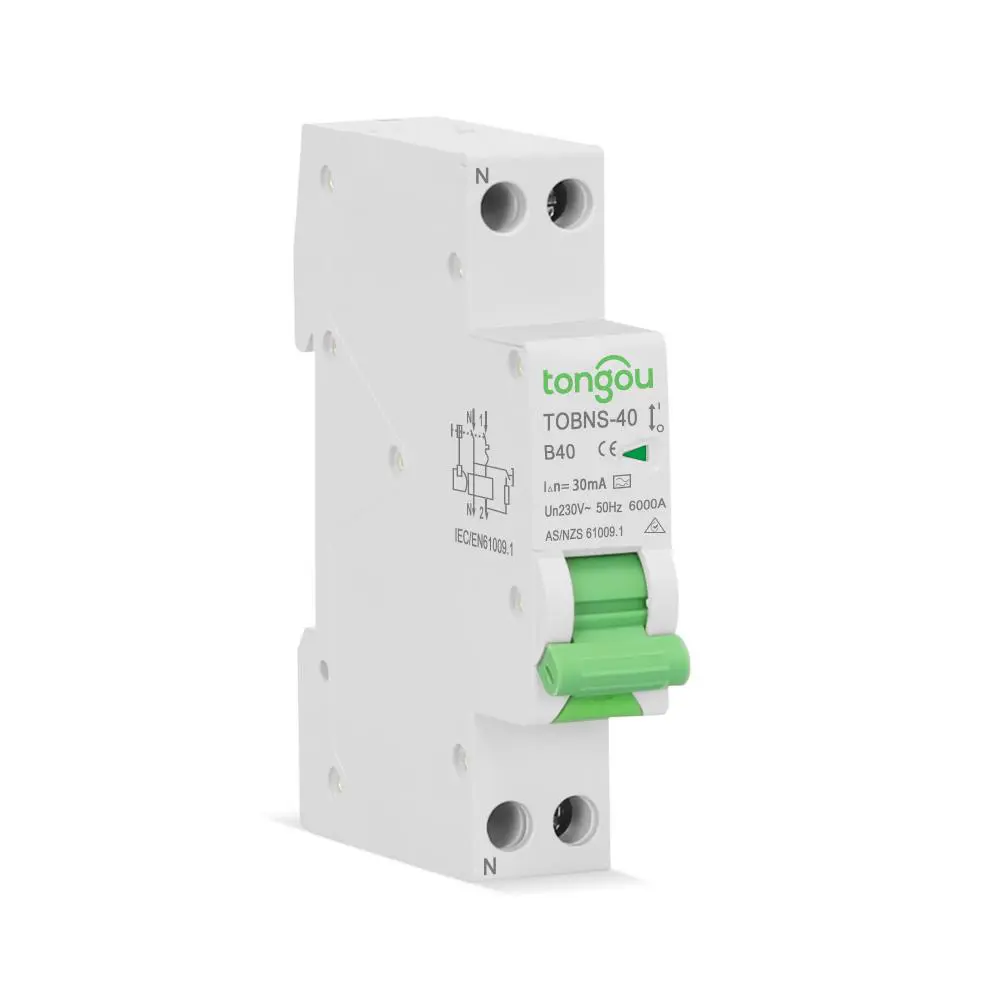

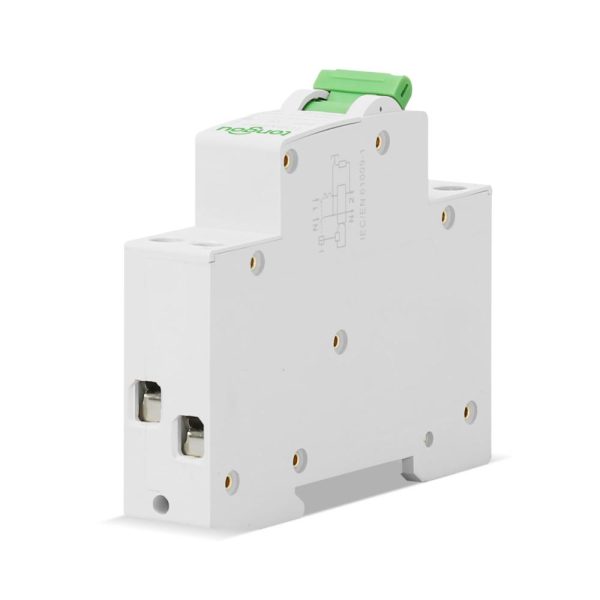

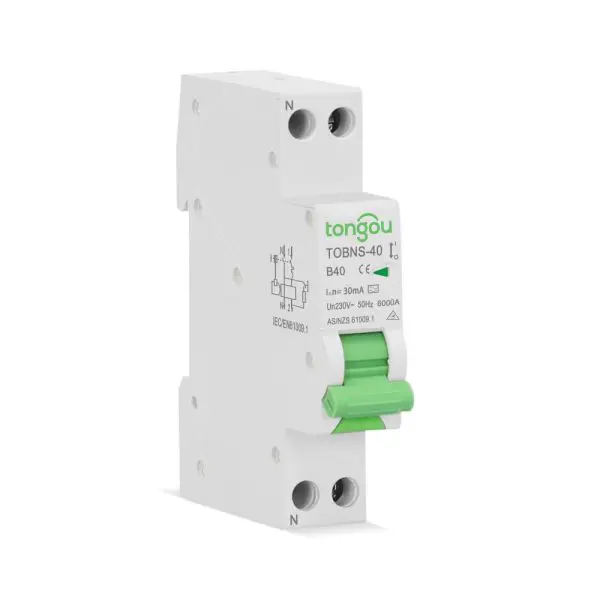

TOBNS-40 is suitable for circuits with rated voltage 230V AC, frequency 50/60Hz, and rated current 40Amp, and below.
RCBO working principle is that provides indirect protection for the operator’s body when the exposed live parts should be connected to an appropriate ground electrode.
In addition, RCBO also provides overcurrent protection for circuits in homes, businesses, and other similar devices.
At the same time, it can also prevent the potential fire hazard caused by the ground-fault current when the overcurrent protection device fails.
Special Note
1. RCBO is specially designed for home installation and other similar applications, non-professional operation, and no maintenance.
2. RCBO with rated sensitivity up to 30mA could be used as a supplementary protecting device in case another protecting device fails its protection against electric shock.
3. RCBO cannot prevent electric shock caused by direct contact between two protected circuits or leakage current between the two circuits.
4. It is recommended to install special devices, such as surge protectors, lightning arresters, etc. on the upstream line of the RCBO to prevent potential surge voltage and current from appearing on the power input side.
5. The RCBO overcurrent protection value is fixed and no further adjustments are made.
| Model Name | TOBNS-40 |
| Device application | Distribution |
| Poles description | 1P+N |
| Number of protected poles | 2 |
| Network type | AC Type A |
| Breaking capacity | 6kA |
| Rated operational voltage | 110V, 196V/253V, 230V/240V, 380V/400V AC |
| Rated frequency | 50/60Hz |
| Rated residual operating current |△(mA): | 10, 30, 100 |
| Control type | Toggie |
| Curve code | B, C |
| Local signaling | ON/OFF indication |
| Mounting support | DIN rail 35mm |
| Color | Grey |
| Electro-mechanical endurance | ≥20,000 cycles |
| Standards | IEC 61009-1, EN61009, AS/NZS 61009-1 |
| Operating altitude | 2000m |
| Ambient air temperature for operation | -5°C to +60°C |
| Ambient air temperature for storage | -40°C to +85°C |
