Description

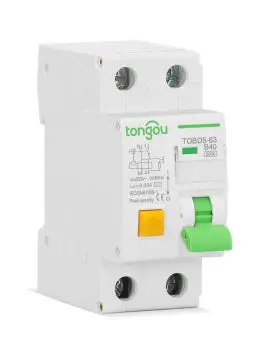

16 Amp RCBO not only provides indirect protection for the operator’s body but also provides overcurrent protection for circuits in homes, businesses, and other similar devices. It has many advantages and can satisfy most applications.
16 Amp RCBO Special Tips
1. RCBO with a rated sensitivity of up to 100mA can be used as an auxiliary protective device to prevent other protective devices from being unable to prevent electric shock.
2. RCBO is specially designed for home installation and other similar applications, non-professional operation, and no maintenance.
3. RCBO cannot prevent electric shock caused by direct contact between two protected circuits or leakage current between the two circuits.
4. To meet the above conditions and applications, RCCB with an “ON-OFF” indicating device is considered suitable for isolation function.
5. It is recommended to install special equipment such as surge protectors and lightning arresters on the upstream line of the RCBO to prevent potential surge voltage and current from appearing on the power input side.
| Model Name | TOB01-32 |
| Model | Electronic type |
| Residual Current characteristic: | AC |
| Pole No: | 1P+N |
| Tripping Curve | C |
| Rated current（A） | 6 |
| Rated voltage | 240V/ |
| Rated frequency | 50/60Hz |
| Rated residual operating current |△(A): | 0.03 |
| Rated residual non operating current |△ no: | 0.5|△ n |
| Rated conditional short-circuit current inc: | 3kA |
| Rated conditional residual short-circuit current |△c: | 3kA |
| Tripping duration: | Instantaneous tripping ≤0.1s |
| Residual tripping current range: | 0.5||△n~|△n |
| Electro-mechanical endurance | ≥4000 cycles |
| Connection capacity: | RIGID CONDUCTOR 16MM² |
| Connection terminal | Screw terminal Pillar terminal with clamp |
| Fastening torque | 2.0 Nm |
| Installation | On symmetrical DIN rail 35mm Panel mounting |
