Electricity powers our modern world, but how it’s delivered to our homes and appliances isn’t universally the same. When you start upgrading to smart home devices, like the innovative TOVMT WiFi Smart Switch, you’ll encounter terms like “L-N” and “L-L” wiring.
The most widespread configuration is L-N (Line-Neutral) wiring. In this setup, a single “Line” (or “Hot”) conductor delivers power, and a “Neutral” conductor provides the return path.
In North America (USA, Canada, Mexico), L-N wiring typically delivers 120V and is used for most standard outlets, lighting, and smaller appliances.
However, across much of the rest of the world, including the United Kingdom, most of Europe, Australia, New Zealand, and large parts of Asia and Africa, L-N wiring is also standard, but it usually delivers a higher voltage, typically 220V-240V, for all common household devices.
Then there’s L-L (Line-Line) wiring, where power is delivered using two “Line” conductors.
This is most notably used in North America to achieve 240V for high-power appliances like electric dryers, ovens, water heaters, and central air conditioning units. This is derived from a “split-phase” system where two 120V lines are combined.
Line-Neutral (L-N) wiring is the most common configuration for residential and light commercial applications globally. In a single-phase L-N system:

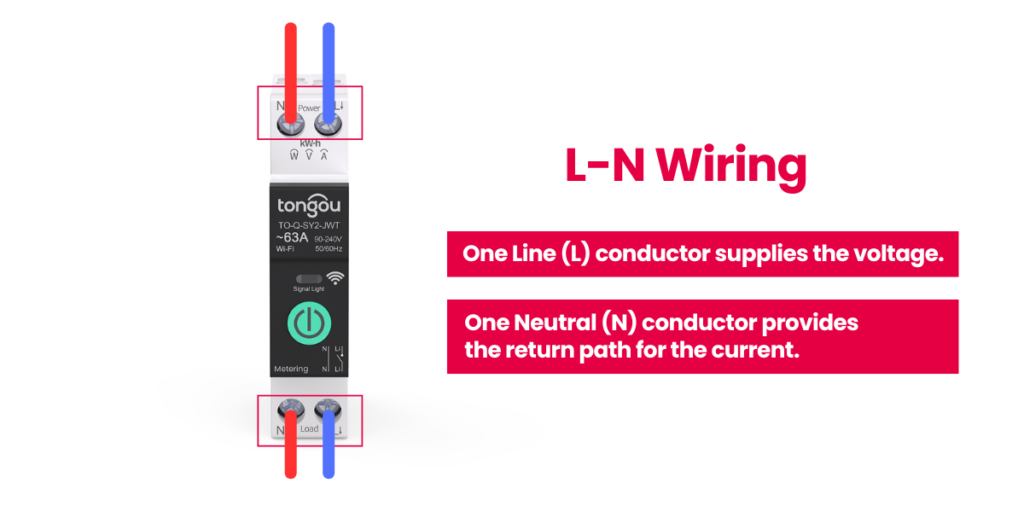

One Line (L) conductor supplies the voltage.
One Neutral (N) conductor provides the return path for the current.
A Ground (G/E) conductor is present for safety.
The voltage is measured between the Line and Neutral conductors.
Imagine a simple circuit: power flows from the electrical panel via the Line wire, through your appliance (like a lamp), and then returns to the panel via the Neutral wire, completing the circuit. The Neutral wire is crucial because, without it, the current has no path to return, and the appliance won’t work.
North America (USA, Canada): Standard L-N voltage is 120V. This is used for most lighting, outlets, and smaller appliances.
Europe, UK, Australia, New Zealand, much of Asia & Africa: Standard L-N voltage is typically 220V-240V. A single Line conductor and a Neutral conductor provide this voltage for all standard household appliances.
Lighting circuits
Standard wall outlets
Small appliances (TVs, computers, kitchen gadgets)
Essentially, any device that doesn’t require very high power.
Line-Line (L-L) wiring involves using two Line (Live/Hot) conductors to power a device. There is no dedicated Neutral conductor directly involved in delivering power to the load in the same way as an L-N system. The voltage is measured between the two Line conductors.
In North America, residential power is often supplied as a split-phase system. This means:
A transformer outside your home has a center-tapped secondary winding.
This provides two 120V Line conductors (L1 and L2) that are 180 degrees out of phase with each other, and a Neutral (N) conductor tapped from the center.
Connecting an appliance between L1 and N gives 120V.
Connecting an appliance between L2 and N gives 120V.
Connecting an appliance between L1 and L2 gives 240V. This is L-L wiring.
In this 240V L-L setup, L1 and L2 act as the supply and return for each other due to their phase difference. While a Neutral might be present in the junction box (for 120V components within the appliance, like a clock on an oven), the main power elements of the 240V appliance are connected across L1 and L2.
While less common in residential outside of North America’s split-phase for high-power, L-L can also refer to connections between two phases of a three-phase system (e.g., in industrial settings or larger commercial buildings). However, the TOVMT switch is primarily designed for single-phase or split-phase residential/light commercial applications.
North America (USA, Canada): 240V L-L is standard for high-power appliances. This is derived from the 120V/240V split-phase system (L1-L2).
Some other regions/specific applications: You might encounter other L-L voltages in specialized or industrial settings, but 240V L-L from a split-phase system is the most relevant for a product like the TOVMT in a residential context.
Electric Water Heaters
Electric Clothes Dryers
Electric Ovens and Cooktops
Central Air Conditioning (HVAC) units
Well Pumps
Electric Vehicle (EV) chargers (Level 2)
Large workshop tools
| Feature | L-N Wiring | L-L Wiring (North American Split-Phase) |
| Conductors | Line (L), Neutral (N) | Line 1 (L1), Line 2 (L2) |
| Voltage Ref. | Between Line and Neutral | Between Line 1 and Line 2 |
| Common Volt. | 120V (NA), 220-240V (Europe, Asia, etc.) | 240V (NA) |
| Primary Use | Lighting, small appliances | High-power appliances (water heaters, HVAC) |
| Return Path | Neutral conductor | The other Line conductor (due to phase diff.) |

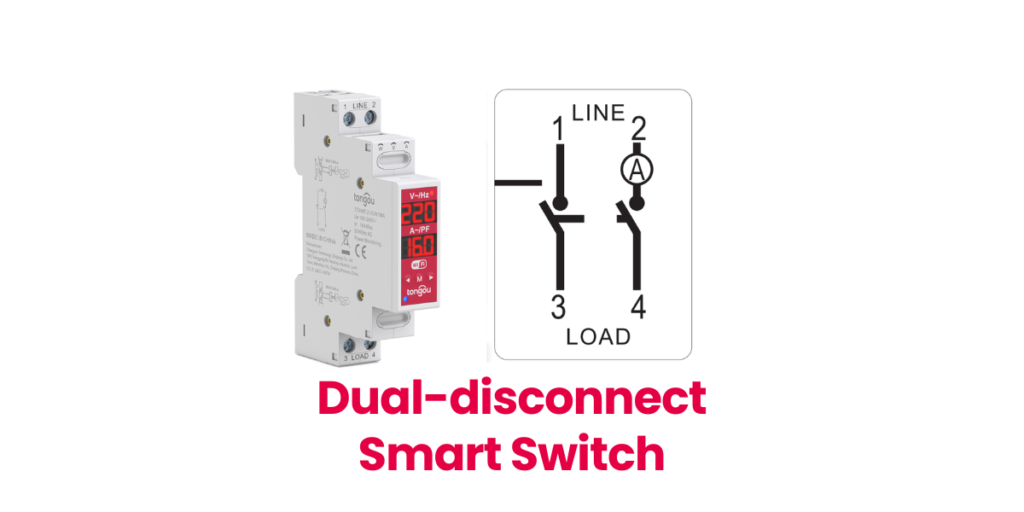

A double-pole switch (also known as a dual-break switch) simultaneously disconnects all current-carrying conductors connected to it.
For L-N circuits: The TOVMT disconnects both the Line and the Neutral. This is superior to single-pole switches that only break the Line, as it fully isolates the appliance.
For L-L (240V NA) circuits: The TOVMT disconnects both Line 1 and Line 2. This is essential for safety with 240V appliances, ensuring the device is completely de-energized.
This feature makes the TOVMT smart switch a premium choice for safety-conscious users and for applications where complete power isolation is desired or required.
Unmatched Flexibility: One switch for a vast range of applications, reducing confusion and inventory if you’re an installer.
Enhanced Safety: The double-pole mechanism provides complete isolation, a significant safety upgrade over standard single-pole switches, especially critical for L-L 240V and even beneficial for L-N.
Future-Proofing: As smart home needs evolve, a versatile switch like the TOVMT L-L/L-N compatible smart switch can adapt.
Suitable for High-Power Appliances: Its L-L capability makes it ideal for automating heavy-duty devices that other smart switches can’t handle.
Peace of Mind: Knowing your smart switch is correctly and safely installed for your specific wiring type.
Understanding the nuances of L-L and L-N wiring is paramount for anyone looking to upgrade their home with smart technology. The TOVMT WiFi Smart Switch, with its innovative support for both L-L and L-N configurations and its robust double-pole design, stands out as a superior solution for safety, versatility, and advanced control.
By taking the time to understand your home’s electrical system and following safe installation practices (or hiring a professional), you can confidently integrate the TOVMT smart switch to control everything from standard lighting to high-power 240V appliances, truly elevating your smart home experience.
