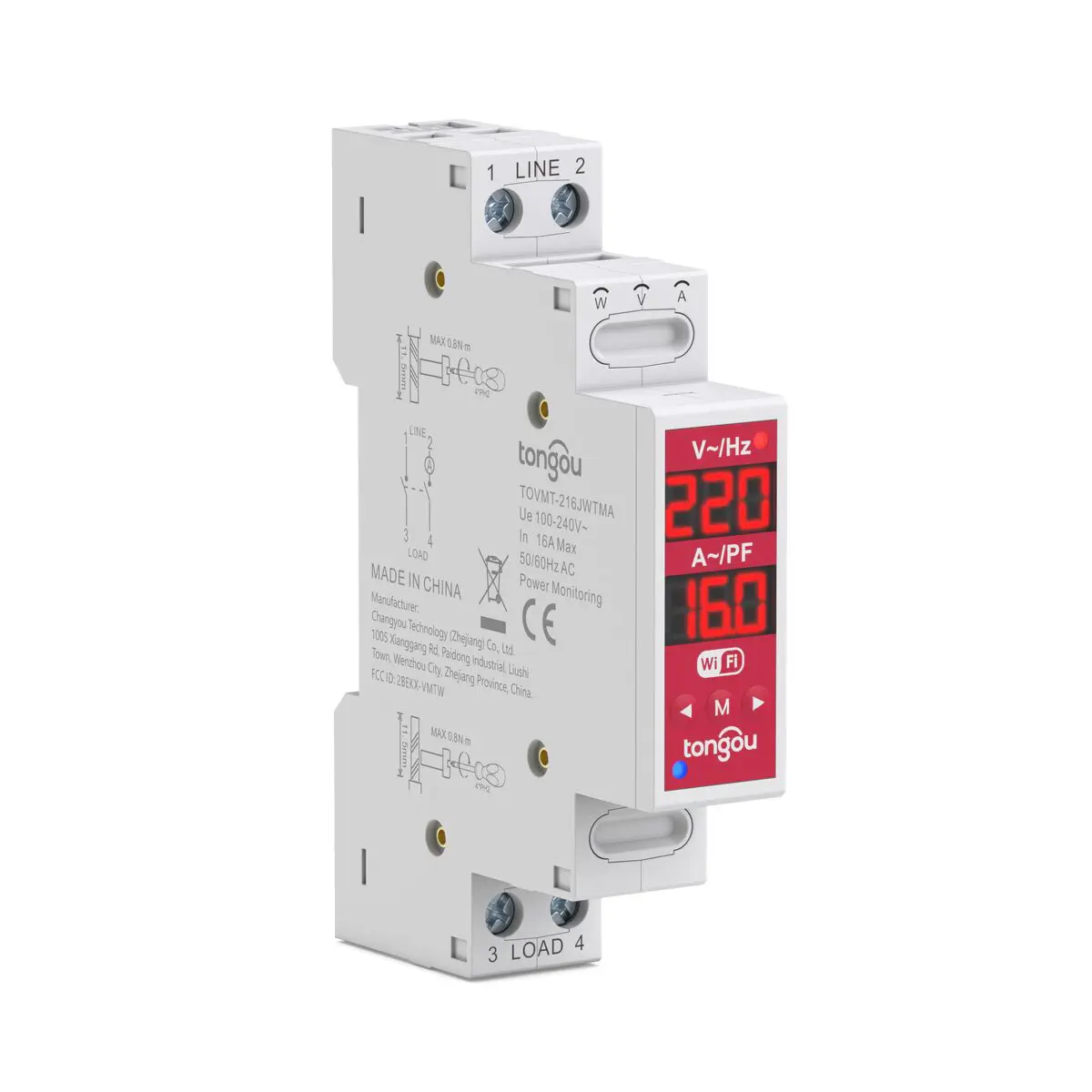

Description
Adaptable Wiring Configurations for Diverse Needs:
Support for Dual Live (L+L) Installations: The device is fully compatible with two live wire inputs (often found in 220V systems where a neutral is not present at the switch), and it concurrently disconnects both.
Support for Live + Neutral (L+N) Installations: It integrates flawlessly into conventional Live and Neutral wiring schemes, providing the essential function of severing both the L and N poles for a comprehensive circuit de-energization.
Tuya Smart LifeWi-Fi Connect:
Location-Independent Operation: Activate or deactivate your connected equipment from virtually anywhere using the widely adopted Tuya or Smart Life mobile applications.
Customizable Automated Timers: Establish user-defined on/off cycles to automate the functioning of your devices, promoting both convenience and efficient energy use.
Multi-Faceted Protection :
Overvoltage: Defends connected apparatus against damaging voltage spikes, with an adjustable threshold between 100V and 280V.
Undervoltage: Protects equipment from performance issues or damage due to insufficient voltage, configurable within a 100V to 280V range.
Overcurrent: Prevents circuit damage resulting from current draw beyond safe limits, with a user-settable range of 1A to 16A.
Overpower: Monitors and interrupts the circuit if the total power consumption surpasses a predefined limit, adjustable from 0.01kW to 3.52kW.
Automatic Reclosing:
Following a fault trip triggered by overvoltage, undervoltage, overpower, or overcurrent conditions, the device intelligently attempts to re-establish power based on your configured parameters.
Space-Conscious and Power-Saving Construction:
Ultra-Compact 18mm Profile (Standard 1P Dimension): Delivers the control capabilities of a two-pole (2P) switch while occupying the minimal DIN rail space of a single-pole (1P) module, thereby maximizing panel real estate.
Optimized for Minimal Energy Use: Engineered to operate with low power consumption, contributing to overall energy efficiency.
| Product Type | Dual-disconnect Smart Switch |
| Poles Number | 2P |
| Rated Current | 16A |
| Operating voltage Range | AC 100-240V |
| Overvoltage Protection Range | 100-280V |
| Overpower Protection | 0.01-3.52kW |
| Rated Frequency | 50Hz/60Hz |
| Wiring Option | L-L/L-N |
| Remote Control | Yes |
| Power Consumption | Yes |
