In this modern world where electricity is an essential aspect of everyday life, electrical protection devices play an important role in our daily activities. These safety devices silently safeguard our well-being while we go about our work or day-to-day routines. Circuit breakers are one of the key components in any electrical setup. Residual Current Breaker with Over-current protection (RCBO) is an upgrade from the traditional Miniature Circuit Breaker (MCB). It is designed to protect our homes and workplaces from electrical faults. This article will discuss these two types of circuit breakers, RCBO and MCB.

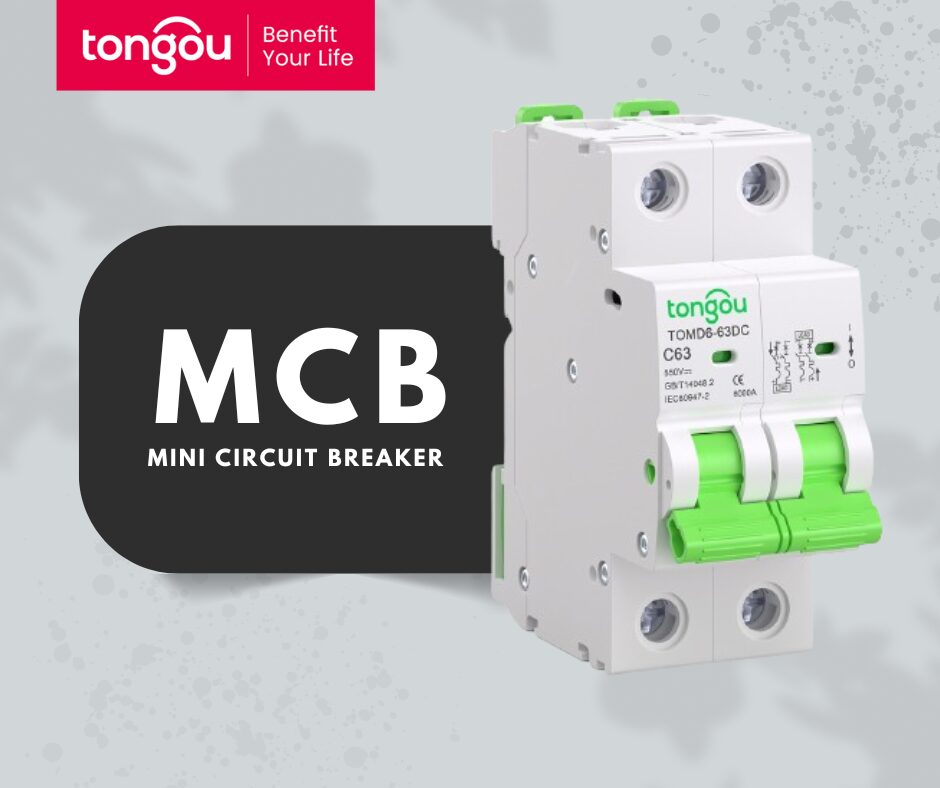

An MCB, or Miniature Circuit Breaker, is an automatically operated switch designed to protect an electrical circuit from damage caused by overload or a short circuit. Here’s how it works:
1.Fault Detection: MCB are designed to detect over-currents caused by overload or short circuits in the system. They continuously monitor the amount of electrical current flowing through the circuit they are protecting.
2.Tripping Mechanism: Once a fault is detected, the MCB activates its trip mechanism. This disconnects the circuit from the power supply, protecting the circuit and preventing further damage.
3.Automatic Operation: All of this happens automatically, without needing human intervention. This enables MCB to prevent potentially dangerous electrical faults.
4.Easy Reset: After the fault has been resolved, the MCB can be easily reset to its ‘on’ position, restoring the power supply to the circuit.
While MCB offer reliable protection for over-current situations, they lack the ability to protect against earth leakage currents – a critical safety functionality that RCBO aim to achieve.
A Residual Current Breaker with Over-current protection (RCBO) is a protective device that serves two roles. Similar to an MCB, it protects against overloads and short circuits. In addition, like an RCD (Residual Current Device), it detects and guards against earth leakages. This dual functionality provides RCBO with comprehensive protective coverage, making them an excellent choice for electrical safety.
1.Fault Detection: Like an MCB, an RCBO continuously monitors the electrical current passing through the circuit it guards. However, it doesn’t just look for over-current; it also checks for any earth leakage currents, identifying minor leakages which may escape an MCB detection.
2.Quick Response: Upon detection of any fault, the RCBO responds swiftly, usually within a few milliseconds, triggering its tripping mechanism. This immediately halts the electrical supply, preventing potential hazards.
3.Easy Reset: After a fault has been corrected, the RCBO can be easily reset, restoring the electrical supply to the circuit.
With this dual protection capability, RCBO offer a heightened sense of safety compared to MCBS, making them the first choice in many applications.
While MCB and RCBO serve similar purposes, there are key differences that largely tilt the scale in favor of RCBO.
1.Functionality: While MCB only protect against overloads and short circuits, RCBO offer additional protection against earth leakage currents.
2.Nature of Protection: MCB are for protecting specific circuits from over-current, essentially preventing the deterioration of our electrical systems prematurely. In contrast, RCBO provide protection not just for circuits, but also guard people from potential electric shocks caused by direct contacts, taking a step further in ensuring personal safety.
3.Applications: MCB are mainly used in residential and commercial applications that have controlled environments. Meanwhile, RCBO are ideally suited for environments with a higher risk of insulation failure or enhanced personal protection required such as bathrooms, kitchens, and outdoor locations.
4.Cost and Installation: The upfront cost for an RCBO is generally higher. From an installation standpoint, RCBO takes up less space on a board compared to separate installations of MCB and RCD, making it a more compact and efficient choice.
From these aspects, making a switch from MCB to RCBO represents enhanced protection considering the additional safety against earth leakage, reinforced personal protection, and its wider applicability.
The decision to choose RCBO over MCB depends on several factors, ranging from the specific safety needs of a space to the overall electrical configuration:
1.High Usage Areas: If you have areas where many appliances are used frequently, like kitchens or commercial spaces, using an RCBO would provide better protection against overload, short-circuit and earth leakage.
2.Outdoor and Wet Environments: For spaces exposed to moisture or outdoor conditions, like bathrooms, laundry rooms, or outdoor power supply points, RCBO offer better safety due to their ability to detect earth leakages.
3.Spaces with Vulnerable Users: In homes or facilities where users could be more susceptible to electrical hazards, such as children, elderly, or people with disabilities, the superior safety offered by RCBO would be beneficial.
4.Renovation or Upgrade of Electrics: If you’re renovating or upgrading the electrical wiring in a building, it could be a good time to switch to RCBO and improve your electrical safety.
5.Legal or Regulatory Compliance: Some regions might have regulations that require circuits in certain environments to be protected by RCBO. Compliance with these rules would necessitate opting for RCBO over MCB.
By considering these factors, you can make an informed decision about when to choose RCBO instead of MCB.
The decision to choose RCBO over MCB depends on several factors, ranging from the specific safety needs of a space to the overall electrical configuration:
1.High Usage Areas: If you have areas where many appliances are used frequently, like kitchens or commercial spaces, using an RCBO would provide better protection against overload, short-circuit and earth leakage.
2.Outdoor and Wet Environments: For spaces exposed to moisture or outdoor conditions, like bathrooms, laundry rooms, or outdoor power supply points, RCBO offer better safety due to their ability to detect earth leakages.
3.Spaces with Vulnerable Users: In homes or facilities where users could be more susceptible to electrical hazards, such as children, elderly, or people with disabilities, the superior safety offered by RCBO would be beneficial.
4.Renovation or Upgrade of Electrics: If you’re renovating or upgrading the electrical wiring in a building, it could be a good time to switch to RCBO and improve your electrical safety.
5.Legal or Regulatory Compliance: Some regions might have regulations that require circuits in certain environments to be protected by RCBO. Compliance with these rules would necessitate opting for RCBO over MCB.
By considering these factors, you can make an informed decision about when to choose RCBO instead of MCB.
Electrical safety is paramount, and choosing the right devices is key. While MCB have traditionally been used to protect against overloads and short circuits, the advent of RCBO ushers in a new era of comprehensive protection. Offering enhanced safety against earth leakages and potential electric shocks due to direct contacts, RCBO stand a class apart.
Replacing MCB with RCBO is more than just a technical upgrade—it’s a significant step towards a safer residential and working environment. Carrying comprehensive protection, additional safety measures, and efficiency, RCBO show promise as an ideal replacement for MCB.
Ultimately, the choice of protection device will depend on your specific needs. However, considering the advantages offered by RCBO, they’re certainly worth considering in your pursuit of enhanced electrical safety.
