Safety in electrical systems is paramount, and two primary methods to protect against electrical faults are fuses and circuit breakers. This article explores the differences between the two by examining what each is, how they operate, and their pros and cons.
Installing circuit breakers costs more in the short term, but they are reusable and only need to be reset after a trip; installing fuses has a lower monetary cost, but the time cost of manually replacing them after each trip is higher.
A fuse is a simple electrical safety device that protects an electrical circuit from overcurrent. It consists of a metal wire or strip that melts when too much current flows through it, breaking the circuit.
1. Normal Operation: Electrical current flows through the fuse’s conductive element.
2. Over-current Condition: Excess current causes the fuse element to heat up.
3. Melting Point: The element melts, interrupting the flow of current and protecting the circuit.
A fuse box, or distribution board, houses multiple fuses used to protect various circuits in a building. Each fuse is connected to a specific circuit and isolates it from the power supply in the event of an over-current.

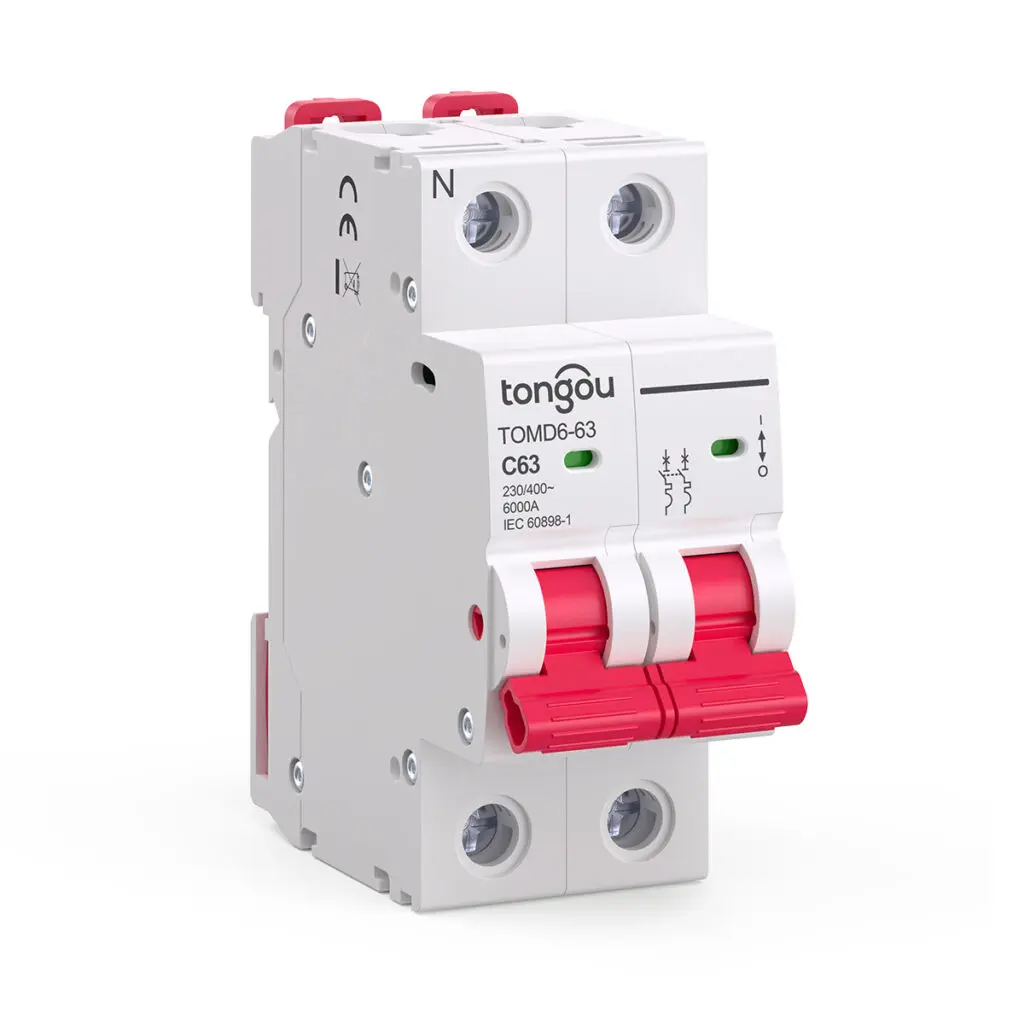

A circuit breaker is an automated electrical switch designed to protect an electrical circuit from damage caused by overcurrent or short circuit. Unlike fuses, circuit breakers can be reset and reused after tripping.
1. Normal Operation: Electrical current flows through the circuit breaker via internal contacts.
2. Trip Mechanism: In the event of an overcurrent or short circuit, the trip mechanism activates, disconnecting the internal contacts.
3. Manual Reset: The breaker can be reset manually to restore the circuit.
A circuit breaker box, also known as a breaker panel or distribution board, houses multiple circuit breakers that protect various circuits in a building. Each breaker can be manually reset after an over-current.
| Fuse vs MCB | ||
| Feature | Fuse | Mini Circuit Breaker |
| Operation | Melts to interrupt current | Mechanically trips to interrupt current |
| Reusable | No, must be replaced after operation | Yes, can be reset |
| Response Time | Faster response to short circuits | Slightly slower |
| Cost | Generally cheaper | More expensive |
| Installation | Can be more complex | Easier and quicker installation |
| Maintenance | Requires replacement when blown | Requires resetting, no replacement needed |
| Indication | Visual indication when blown | Mechanical indication (positioned switch) |
| Application | Best for sensitive devices and precise protection | Ideal for general protection needs |
Understanding the differences between fuses and circuit breakers is essential for choosing the right protection for your electrical circuits.Fuses, once blown, cannot be reused, while circuit breakers can be reused. Fuses, once blown, cannot be reused, whereas circuit breakers can be reused. Fuses protect rooms and equipment from overloads, while circuit breakers add short circuit protection.
From fuses to circuit breakers, equipment upgrades have reached a new level. The emergence of circuit breakers not only saves us the time of replacing fuses, but also makes us feel more at ease. Now, the emergence of smart circuit breakers is undoubtedly another equipment upgrade. Remote control, power consumption, timing modes, these functions make our homes transform into smart homes.
Q: Which is better for home use — a fuse or a circuit breaker?
A: Circuit breakers are generally preferred for home use because they can be reset and reused, providing a convenient and cost-effective solution for household electrical safety.
Q: Can I replace a fuse with a circuit breaker?
A: Yes, it is possible to replace a fuse with a circuit breaker, but it often requires modifying the fuse box or installing a new breaker panel compatible with the home’s electrical system.
Q: Why do fuses need to be replaced while circuit breakers do not?
A: Fuses operate by melting their conductive element to break the circuit, requiring a new fuse each time. Circuit breakers use a mechanical switch to interrupt the circuit, which can be reset.
Q: Are fuses faster than circuit breakers?
A: Yes, fuses generally respond faster to overcurrent conditions, particularly short circuits, due to their simple design. This makes them effective for protecting highly sensitive devices.
Q: How do I know if my circuit breaker has tripped?
A: A tripped circuit breaker usually has the switch positioned between the “on” and “off” settings. Resetting it involves switching it off completely and then back on.
