An electrical distribution board, often abbreviated as DB, is a crucial component of electrical systems in residential, commercial, and industrial buildings. It divides the electrical power feed into subsidiary circuits while providing a protective fuse or circuit breaker for each circuit. Understanding its basics, components, and workings is fundamental for anyone dealing with electrical installations.
A power distribution board, also known as a DB panel board, power DB box, distributor box, or power distribution box, functions as the main control center for an electrical system. It distributes electricity from a single source to various circuits throughout a structure.
A distribution board houses protective devices such as circuit breakers or fuses and distributes electrical power among various subsidiary circuits in a controlled manner. It also ensures safety by isolating circuits in the event of a fault.
1. Main Breaker:
– Acts as the primary switch controlling the entire electrical system connected to the distribution board.
– Allows for complete disconnection of power, providing a safety measure during maintenance or emergencies.
2. Busbars:
– Serve as the main conduits for electricity within the distribution board, ensuring efficient and organized power distribution to various circuits.

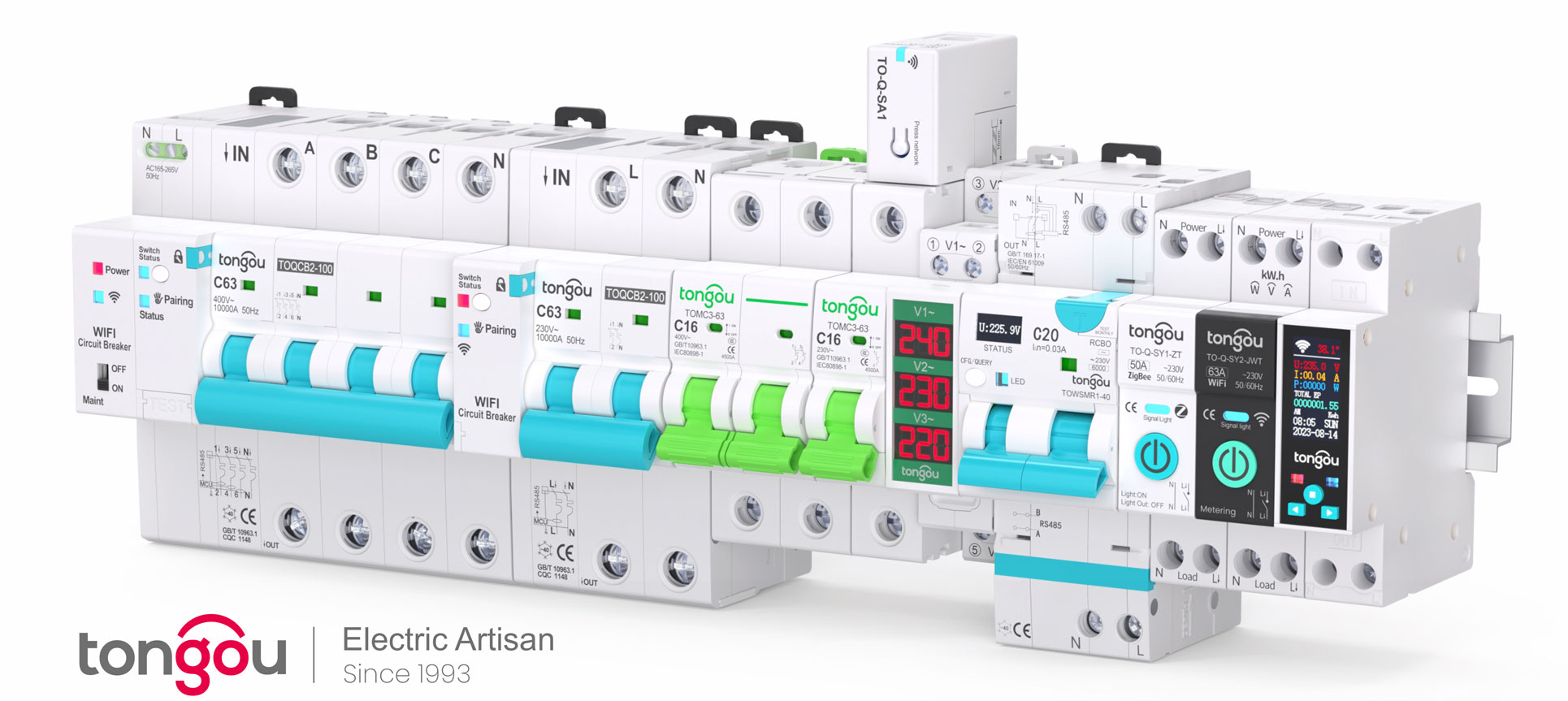

3. Circuit Breakers/Fuses:
– Protect individual circuits by interrupting power flow in case of faults. Circuit breakers trip and can be reset; fuses blow and need to be replaced.
4. Neutral and Grounding Bars:
– Offer safe return paths for electrical current and help safely discharge electrical faults to the earth, preventing shock hazards and improving system stability.
5. Enclosure:
– Provides protection for the internal components from environmental factors like dust, moisture, and physical damage, ensuring longevity and safe operation.
1. Incoming Power:
– Electrical power from the main supply line enters the distribution board through the main breaker, which serves as the primary control point.
2. Main Breaker Control:
– The main breaker regulates the amount of power entering the distribution board. It can disconnect the entire system from the power supply if necessary, providing a way to isolate the system for maintenance or in emergencies.
3. Busbar Distribution:
– Inside the distribution board, the incoming power is carried to busbars. These are thick metal strips or bars made of aluminum or copper, designed to conduct substantial amounts of electricity efficiently.
– Busbars act as a central distribution point within the board, distributing power to individual circuit breakers or fuses connected to them.
4. Circuit Breaker/Fuse Protection:
– Each circuit connected to the busbar is protected by a circuit breaker or fuse. These protective devices are crucial for preventing damage due to overloads, short circuits, or other electrical faults.
– Circuit breakers can be reset after tripping, while fuses need to be replaced once they blow.
5. Power Supply to Circuits:
– The circuit breakers or fuses distribute the power to various subsidiary circuits within the building. Each circuit supplies electricity to a specific zone or type of equipment (e.g., lighting, outlets, appliances).
– By segmenting the electrical system into smaller circuits, the distribution board helps manage and distribute power more efficiently and safely.
6. Continuous Monitoring and Control:
– The distribution board continuously monitors the power flow. If a fault, such as an overload or short circuit, is detected, the respective circuit breaker trips to cut off the power supply to the affected circuit, preventing damage or fire hazards.
– Ground fault and arc fault detection devices, if included, can enhance safety by detecting faults that other conventional means might miss and interrupting the current to prevent potential hazards.
1. Efficiency:
– By efficiently distributing power to different parts of a building, they ensure that electrical loads are balanced and the power supply is utilized optimally.
2. Safety:
– Providing critical protection against electrical hazards like overloads, short circuits, and ground faults, distribution boards enhance overall safety.
– Including devices like Residual Current Devices (RCDs) or Ground Fault Circuit Interrupters (GFCIs) can provide additional protection against electrical shocks.
3. Convenience:
– Distribution boards allow easy control and management of multiple circuits from a single location. Labels on the board help in identifying and isolating specific circuits for maintenance.
4. Scalability:
– They offer scalability by making it easy to add or remove circuits as needed. This is especially useful in residential and commercial sectors where electrical needs may change over time.
5. Regulatory Compliance:
– Properly installed and maintained distribution boards ensure compliance with electrical codes and standards, which are crucial for safe and legal electrical installations.
1. Residential Applications
– Lighting Control: Managing the power supply to various lighting circuits in a home.
– Appliance Circuits: Protecting and managing circuits for household appliances like refrigerators, ovens, and washing machines.
– Security Systems: Distributing power to home security systems and fire alarms.
2. Commercial Applications
– Office Buildings: Controlling and protecting power supply in workspaces, lighting, HVAC systems, and office equipment.
– Retail Stores: Managing electrical distribution for lighting, security systems, and point-of-sale equipment.
– Restaurants: Providing power distribution for cooking equipment, refrigeration units, and dining area lighting.
3. Industrial Applications
– Factories: Distributing power to heavy machinery, assembly lines, and industrial lighting.
Warehouses: Managing power for lighting, security systems, and climate control units.
Power Plants: Serving as critical components in the distribution of generated power to various operational units.
1. Overcurrent Protection
– Circuit breakers and fuses within the distribution board protect circuits from overcurrent conditions, preventing potential damage and hazards associated with excessive current flow.
2. Short Circuit Protection
– Short circuit protection mechanisms prevent potential fires and equipment damage by quickly disconnecting the faulty circuit when a short circuit is detected.
3. Ground Fault Protection
– Distribution boards often include devices like Ground Fault Circuit Interrupters (GFCIs) that protect against ground faults, thereby preventing electrical shock and ensuring safety.
4. Fire Hazards Prevention
– By isolating circuits and providing adequate protection against overloads, short circuits, and arc faults, distribution boards significantly reduce the risk of electrical fires.
Q: What is the Difference Between a Circuit Breaker Panel and a Distribution Board?
A: A circuit breaker panel and a distribution board are often used interchangeably, but they can have distinct roles depending on the context:
– Circuit Breaker Panel: Specifically refers to a panel where circuit breakers are housed and used to protect circuits.
– Distribution Board: A broader term that encompasses circuit breaker panels but also includes configurations where other devices such as fuses or combination units are used. Essentially, all circuit breaker panels are distribution boards, but not all distribution boards are strictly circuit breaker panels.
Q: How to Choose the Right Distribution Board?
A: Choosing the right distribution board requires considering several factors:
– Load Requirement: Determine the total load your distribution board will need to handle, including potential future expansions.
– Circuit Types: Identify the number of circuits and the types of loads (residential, commercial, industrial) they will supply.
– Safety Features: Ensure the board includes necessary safety features like circuit breakers, RCDs (Residual Current Devices), and proper grounding.
– Enclosure Rating: Select an enclosure with an appropriate IP (Ingress Protection) or NEMA rating, based on environmental conditions where it will be installed.
– Compliance: Make sure the distribution board complies with local electrical codes and standards.
Q: Can I Install a Distribution Board Myself?
A: DIY installation of a distribution board is not recommended unless you have professional training and certifications in electrical work. Improper installation can lead to:
– Electrical Hazards: Risk of electrical shock, fire, and accidents.
– Code Violations: Non-compliance with local building and electrical codes.
– Insurance Issues: In case of an incident, insurance may not cover damages if the installation was not professionally done.
It’s best to hire a licensed electrician to ensure the safe and compliant installation of a distribution board.
Q: What Maintenance is Required for Distribution Boards?
A: Regular maintenance of distribution boards is crucial for their safe and reliable operation:
– Routine Inspections: Check for signs of wear, overheating, or damage.
– Cleaning: Remove dust and debris from within the enclosure to prevent insulation degradation and overheating.
– Tightening Connections: Ensure all electrical connections are tight to prevent arcing and potential fire hazards.
– Testing Protection Devices: Periodically test circuit breakers, RCDs, and other protective devices to ensure they are functioning correctly.
– Updating Labels: Clearly label each circuit for easy identification and update as changes are made to the system.
Power distribution boards are vital for the management and safety of electrical systems in various settings. They ensure that power is distributed efficiently and safely, protecting circuits from overloads, short circuits, and other electrical faults. By understanding their components, workings, and maintenance requirements, you can ensure that your electrical systems operate smoothly and securely. Properly selected and installed distribution boards play a key role in maintaining the reliability and safety of all types of electrical installations, from residential homes to industrial facilities.
