In the realm of electrical engineering, the choice between switching power supplies and transformers is crucial for various applications. Both have their unique characteristics, advantages, and limitations. This article explores what switching power supplies and transformers are, their main differences, and which option is better for specific scenarios.
Most industrial facilities today rely on alternating current (AC) power from the mains, but in reality many industrial devices require direct current (DC) to operate. This is where switching power supplies come in.

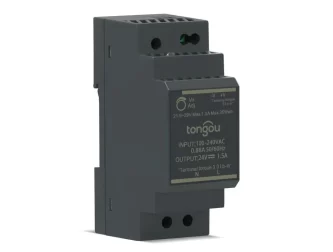

A switching power supply, also known as a switch mode power supply (SMPS), is an electronic power supply that incorporates switching regulators to convert electrical power efficiently. It uses a high-frequency switching technique to provide the desired output voltage and current.
1. Basic Working Principle
The primary operation of an SMPS involves:
——Rectification: Converting AC input to DC voltage.
——Switching: Using a high-speed switching transistor to chop the DC into a high-frequency AC signal.
——Transformation: Passing the high-frequency AC through a small transformer to change the voltage level.
——Rectification and Filtering: Converting the transformed AC back to DC and filtering it to remove any noise.
Key Components
——Switching Transistor: The core element for switching operations.
——Transformers: Used for voltage transformation at high frequencies.
——Rectifiers: Convert AC to DC.
——Filter Capacitors: Smooth out the DC output.
——Control Circuit: Regulates the switching frequency and duty cycle.
Large industrial facilities need to adjust the power voltage for different machines, so transformers are needed.

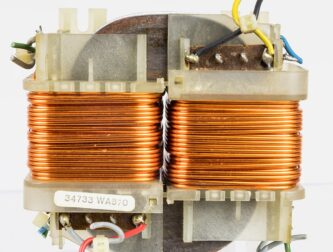

A transformer is an electrical device that transfers electrical energy between two or more circuits through electromagnetic induction. It consists of primary and secondary windings around a magnetic core, which changes the voltage level without affecting the frequency.
1. Basic Working Principle
The operation of a transformer involves:
——Electromagnetic Induction: An alternating current (AC) in the primary winding creates a varying magnetic field in the core.
——Voltage Transformation: The varying magnetic field induces a voltage in the secondary winding, which can be higher or lower than the primary voltage depending on the winding ratios.
2. Key Components
——Primary and Secondary Windings: Coils of wire that carry the input and output currents.
——Magnetic Core: Enhances the magnetic coupling between the windings.
——Insulation Materials: Provide electrical isolation between windings and the core.
1. Efficiency
——Switching Power Supplies: Generally more efficient due to high-frequency operation and less power loss in regulating voltage.
——Transformers: Efficiency varies but can be lower due to energy loss as heat in cores and windings, especially in lower frequency operations.
2. Size and Weight
——Switching Power Supplies: Typically smaller and lighter because of the use of high-frequency transformers.
——Transformers: Larger and heavier, especially for applications requiring significant power transformation.
3. Cost
——Switching Power Supplies: Can be cost-effective for lower power applications, but may become expensive for high-power requirements.
——Transformers: Initial cost may be higher due to materials and construction, but cost-effective for high-power applications over the long term.
4. Performance and Reliability
——Switching Power Supplies: Offer better voltage regulation and control, but can be prone to noise and electromagnetic interference.
——Transformers: Highly reliable with fewer components that can fail; performance is stable for long-term use.
1. Higher Efficiency
Switching power supplies are designed to be more energy-efficient, converting power with minimal loss, making them ideal for applications where energy conservation is essential.
2. Smaller Size and Weight
The use of high-frequency transformers allows SMPS units to be compact and lightweight, making them suitable for portable and space-constrained applications.
3. Cost-Effectiveness
While the design may be complex, the overall cost of manufacturing and operating an SMPS can be lower, especially for low to medium power applications.
4. Better Regulation and Control
SMPS units provide precise voltage regulation and are highly adaptable to varying load conditions, offering better performance in dynamic environments.
1. Simplicity and Durability
Transformers have a simple design with no moving parts, resulting in high durability and low maintenance requirements.
2. High Reliability
Transformers are known for their robustness and longevity, often operating reliably for decades with minimal degradation.
3. Low Noise and Electrical Interference
Unlike SMPS, transformers do not generate high-frequency noise or electromagnetic interference, making them suitable for sensitive applications.
4. Suitable for High-Power Applications
Transformers are ideal for high-power and high-voltage applications, such as in power distribution and industrial operations, where efficiency and reliability are critical.
Understanding the differences and respective advantages of switching power supplies and transformers allows for more informed decisions in various electrical engineering applications. Both have unique strengths that make them suitable for different scenarios. While SMPS units provide efficiency and compactness, transformers offer reliability and simplicity. By carefully considering the requirements of your specific application, you can select the power
