TO-Q-SA1-JZT-2P-1_Chayo-tuya zigbee current transfer 2p with metering

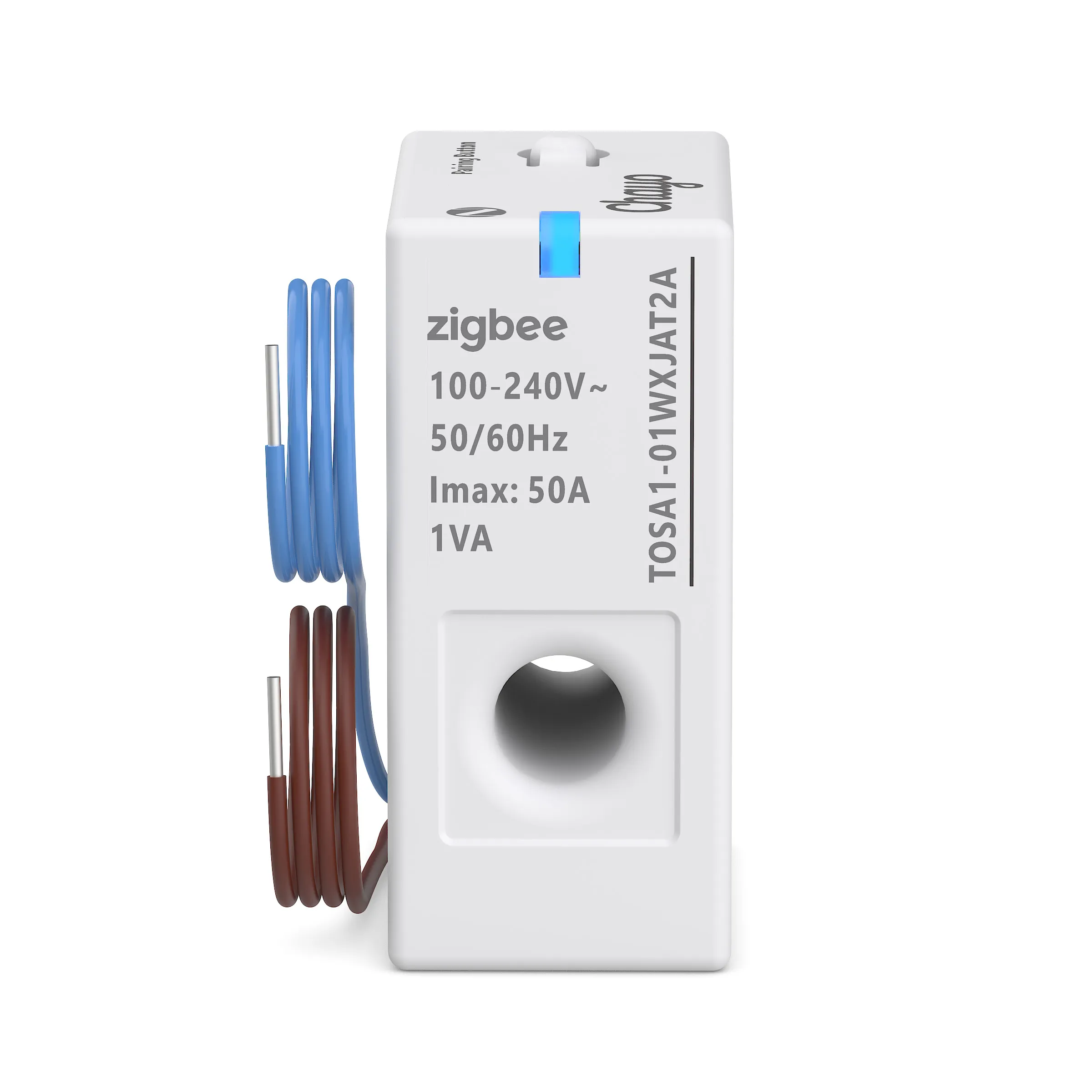

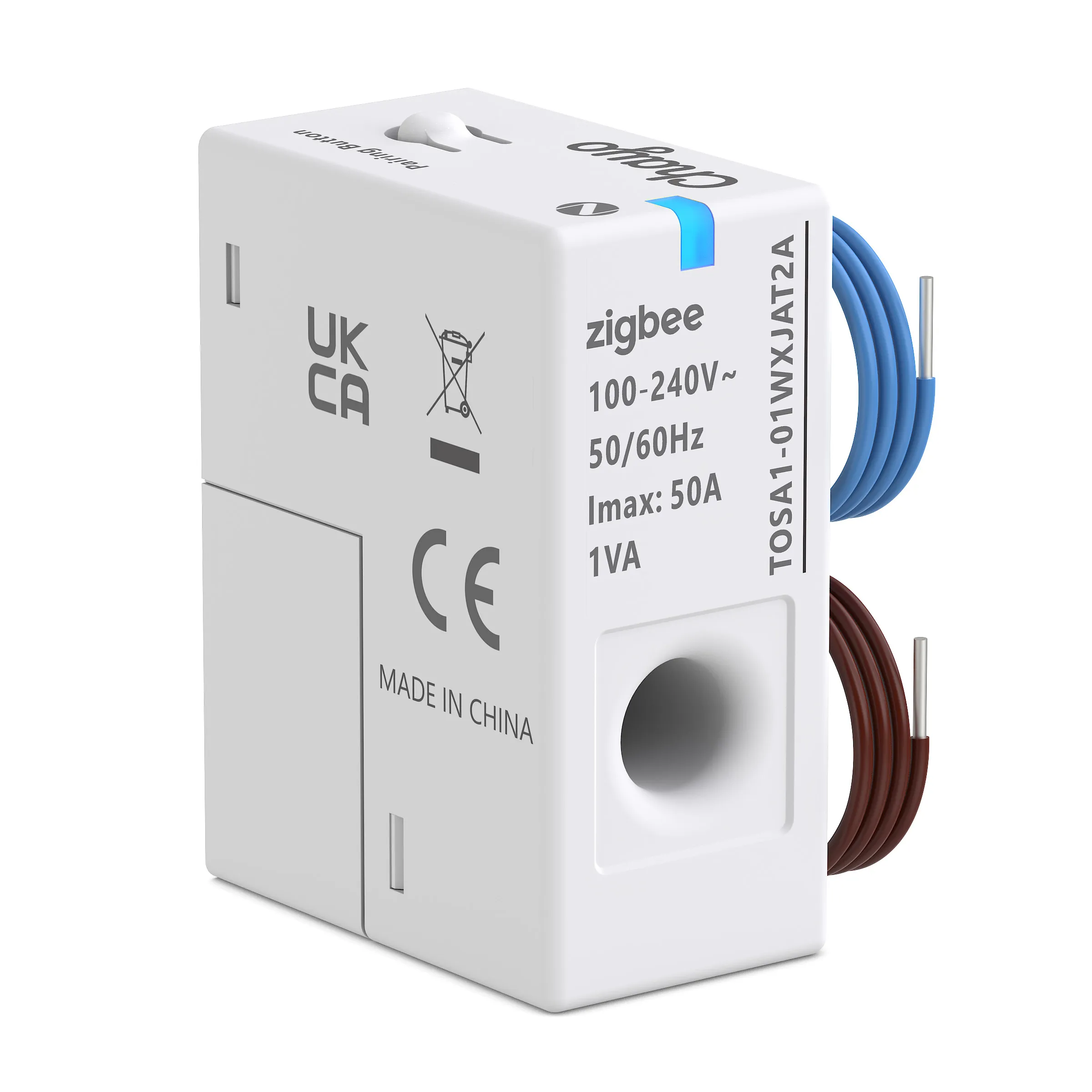

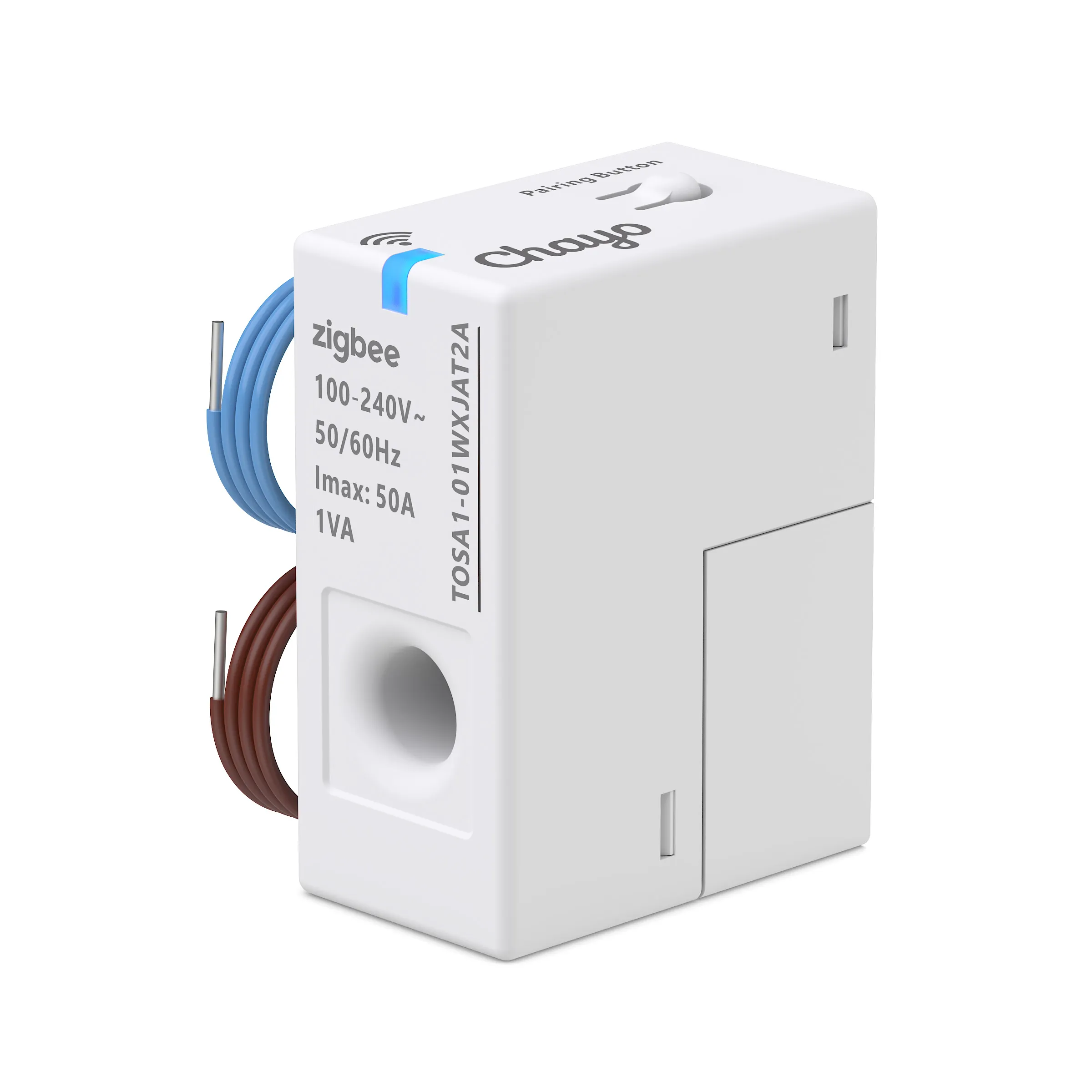

Zigbee Energy Accessory Current Transformer TO-Q-SA1-JZT-2P

TO-Q-SA1-JZT-2P energy accessory can be used separately in the home distribution box through L+N free wiring to achieve metering function. Achieve intelligent upgrade of distribution box at low cost and easy iteration. Easily control household power data.

Category: Smart Accessories Tag: Smart Accessories

1 Year
Operating Manual

Inquiry

Description

Description

General

Technical Data

Inquiry

General

Technical Data

Inquiry

Energy Accessory Wi-Fi Current Transformer Mutual Inductor TO-Q-SA1-JWT-2P

TO-Q-SA1-JWT-1P-5_Chayo-WiFi current transfer 1p tuya

Wi-Fi Current Transfer Smart Energy Accessory TO-Q-SA1-JWT-1P

TO-Q-SA1-JZT-1P-5_Chayo-tuya zigbee current transfer 1p

Zigbee Current Transfer Smart Energy Accessory TO-Q-SA1-JZT-1P

Subscribe to our newsletter

To address any concerns regarding our logo update, please note that the EU trademarks “tongou” (Registration No. 018630309) and “Chayo” (Registration No. 019312969) are both owned by Changyou Technology (Zhejiang) Co., Ltd.

This logo update is only a visual upgrade and does not affect the ownership, validity, or exclusive use of the above trademarks. It also has no impact on product quality, performance, specifications, after-sales service, or business cooperation.

All products and services remain consistent and reliable as always.

PRODUCT LIST

CONTACT US

Marine Economic Development Demonstration Zone, Wenzhou City, Zhejiang Province, China

Sales: [email protected]

After-sales: [email protected]

TO-Q-SA1-JZT Dual-wire Energy Accessory
Item Model Number	TO-Q-SA1-JZT-2P
Manufacturer	Chayo
Nominal Voltage Un (V):	AC 230/400V
Operating Rated Voltage Ue (V):	1P AC 100-240V
Operating Temperature:	– 25℃ to +60℃/-13℉ to + 140℉
Frequency	50/60Hz
Current Frame Maximum In (A):	50
Communication Protocol (Optional):	CE
Energy Comsumption Measurement Accuracy:	Class 1.0
Minitial Current Value:	100mA
Matched Model of MCB:	TOMD6-63
Communication Protocol (Optional):	—TCP/IP: Wi-Fi(2.412-2.484GHZ)IEEE 802.11b/g/n —Zigbee (2.400-2.483GHz)IEEE 802.15.4 —LTE Cat.1: LTE-FDD: B1/B3/B5/B8 —LTE-TDD: B34/38/39140/41(2535-2655MHz) —LTE-FDD:B1/B3/B5B7/B8/B20/B28A* —LTE-TDD:B38140/41 GSMGPRS: GSM900DCS1800 —TCP/UDP: Matter
