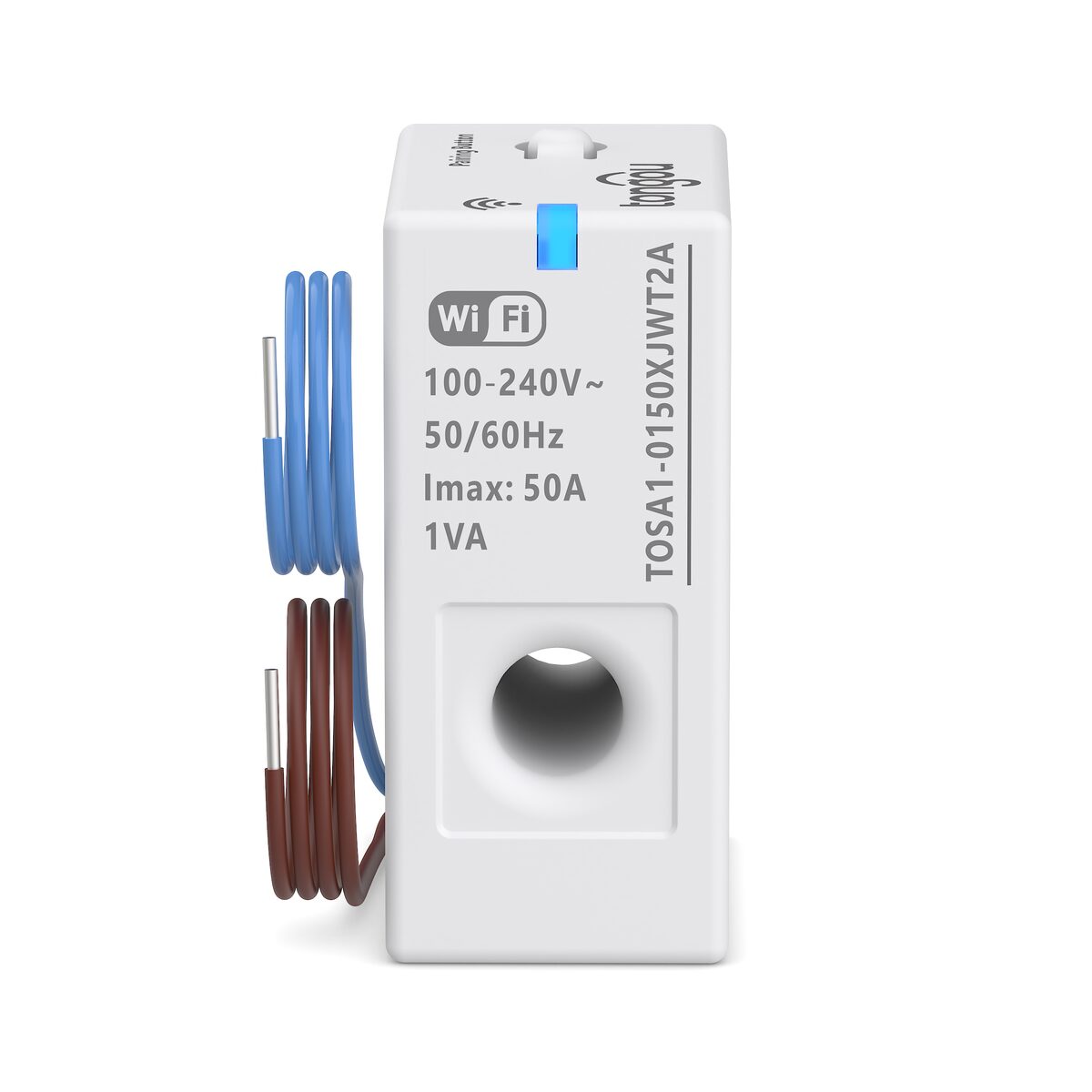

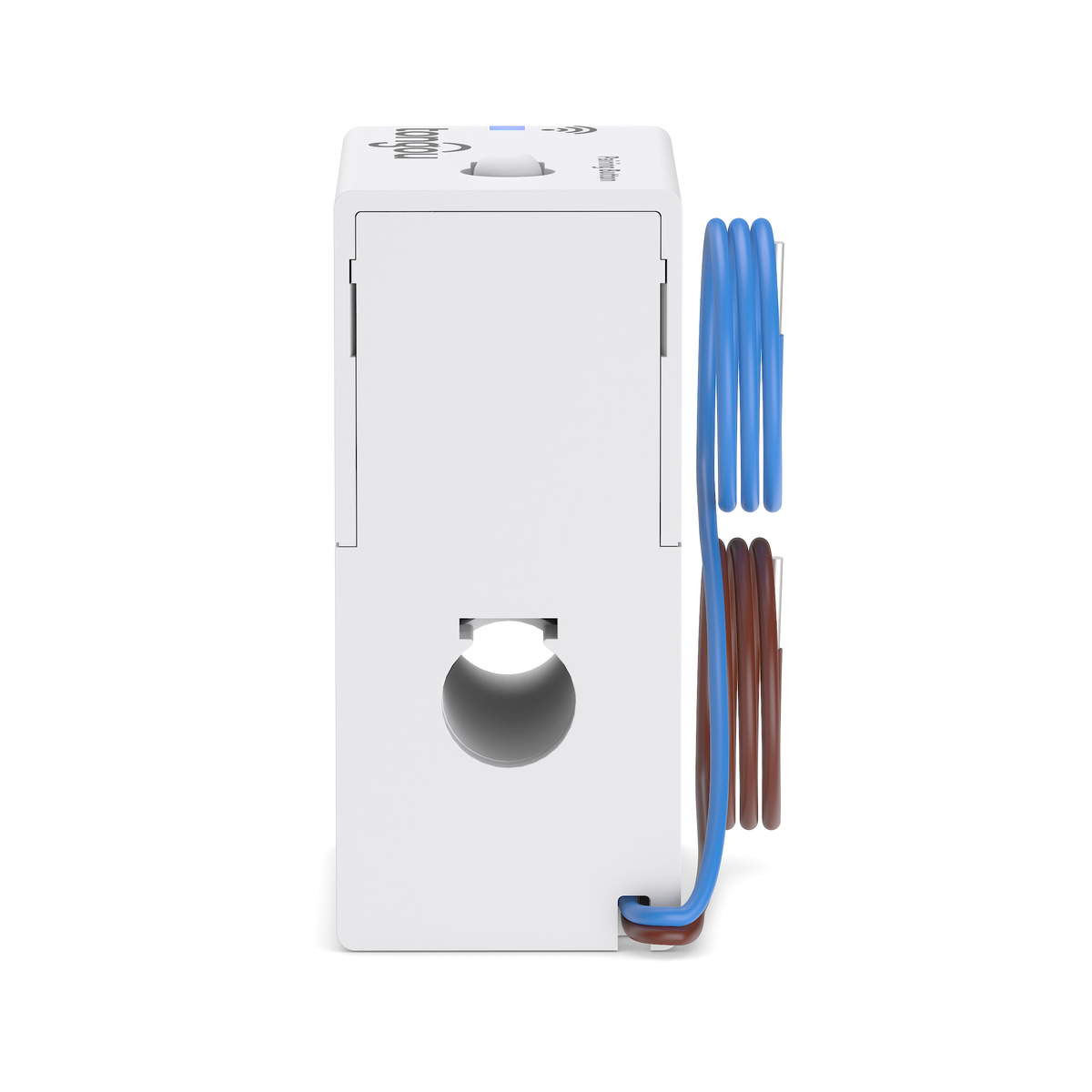

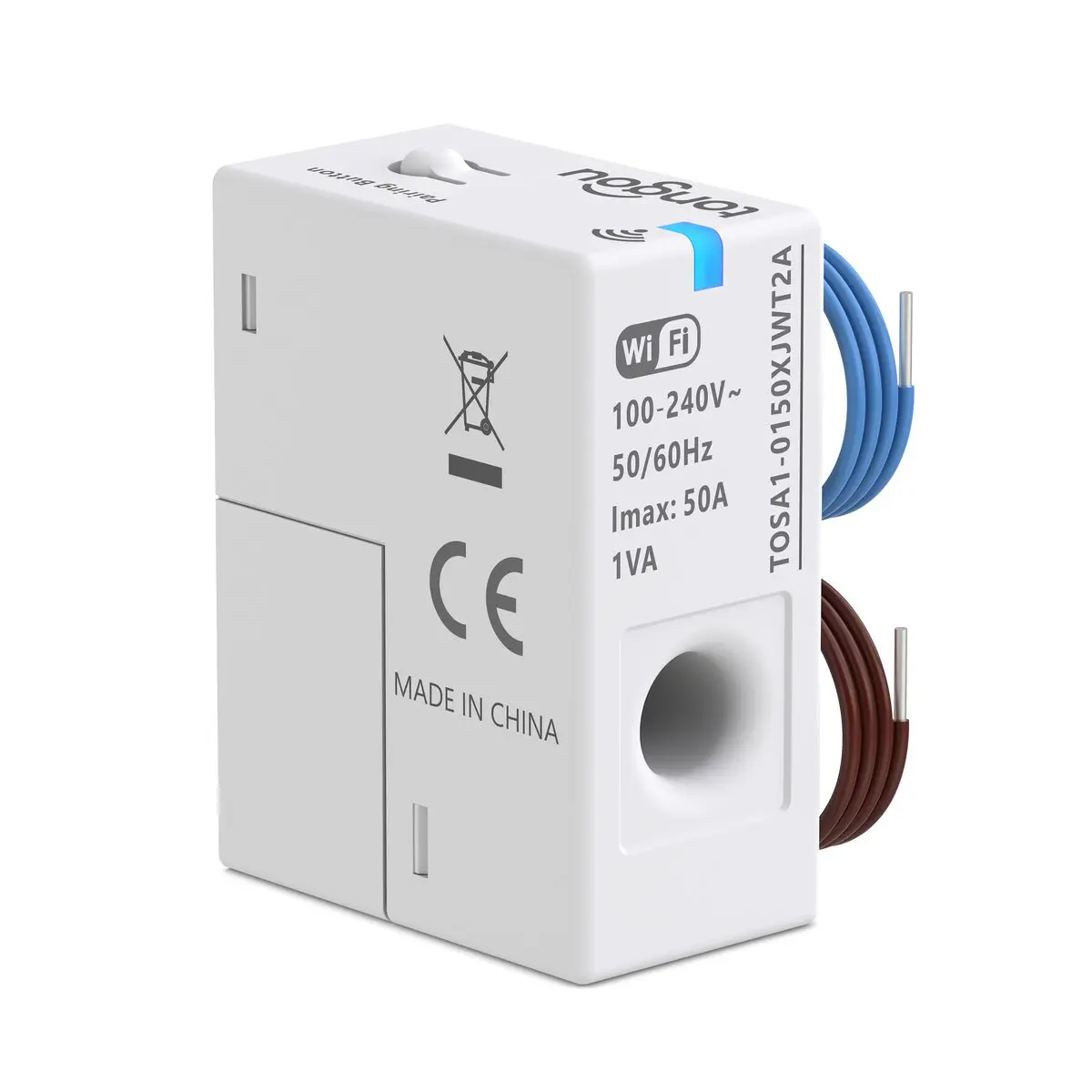

Dual-wire Energy Accessory Wi-Fi Current Transformer Mutual Inductor TO-Q-SA1-1P

TO-Q-SA1 dual-wire version energy accessory can be used separately in the home distribution box through L+N free wiring to achieve metering function. Achieve intelligent upgrade of distribution box at low cost and easy iteration. Easily control household power data.

Category: Smart Accessories Tag: Smart Accessories

1 Year
Operating Manual

Description

Description

General

Technical Data

Inquiry

General

Technical Data

Inquiry

Smart Energy Accessory TO-Q-SA1-1P

Subscribe to our newsletter

tongou was established in 1993 and is the trademark of Changyou Technology. We position ourselves as providers of intelligent product solutions for high and low voltage electrical systems, taking on solving customers’ pressures and challenges as our responsibility and creating value for them. We utilize intelligent products to serve global customers, making life smarter and more convenient to benefit your life.

PRODUCT LIST

CONTACT US

Paidong Industrial Zone Qiligang,Yueqing City,Zhejiang province,China.

Sales: [email protected]

After-sales: [email protected]

TO-Q-SA1-Dual-wire Energy Accessory
Item Model Number	TO-Q-SA1
Manufacturer	Tongou
Nominal Voltage Un (V):	AC 230/400V
Operating Rated Voltage Ue (V):	1P AC 100-240V
Operating Temperature:	– 25℃ to +60℃/-13℉ to + 140℉
Frequency	50/60Hz
Current Frame Maximum In (A):	50
Communication Protocol (Optional):	CE
Energy Comsumption Measurement Accuracy:	Class 1.0
Minitial Current Value:	100mA
Matched Model of MCB:	TOMD6-63
Communication Protocol (Optional):	—TCP/IP: Wi-Fi(2.412-2.484GHZ)IEEE 802.11b/g/n —Zigbee (2.400-2.483GHz)IEEE 802.15.4 —LTE Cat.1: LTE-FDD: B1/B3/B5/B8 —LTE-TDD: B34/38/39140/41(2535-2655MHz) —LTE-FDD:B1/B3/B5B7/B8/B20/B28A* —LTE-TDD:B38140/41 GSMGPRS: GSM900DCS1800 —TCP/UDP: Matter
