General
Comply With GB16916 CQC1148
Number OF Poles: 3P+N
Maximum Frame Current: 63A
Power Supply Mode: common power supply, with gateway
Short Circuit Breaking Capacity: Icn=Ics=10KA
Mechanical Life > 10000 times
Electrical Life > 6000 times
Trip Type: Type C
Electricity Metering Accuracy: 1.0 class
1. Remote opening and closing
2. Can monitor power, voltage, current, power, temperature, and other grid parameters
3. It can protect the voltage, and overload current. Parameters such as temperature and power limit can be Protection value settings and function settings
4. And remote APP. Remote operation and parameter setting. Customizable 4G/Zigbee/RS 485 protocol. Measurement accuracy class 1 Remote OTA upgrade
Technical Data

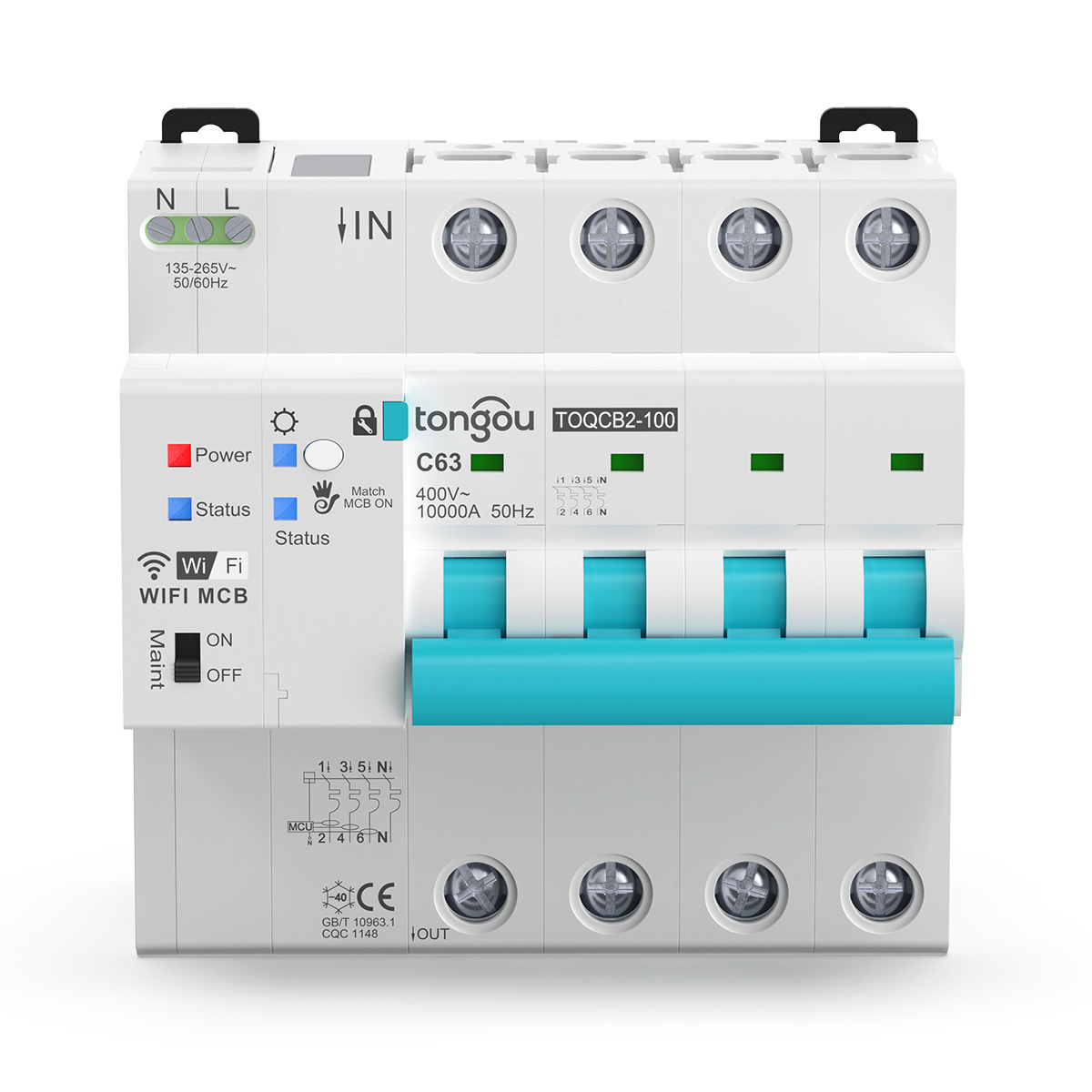

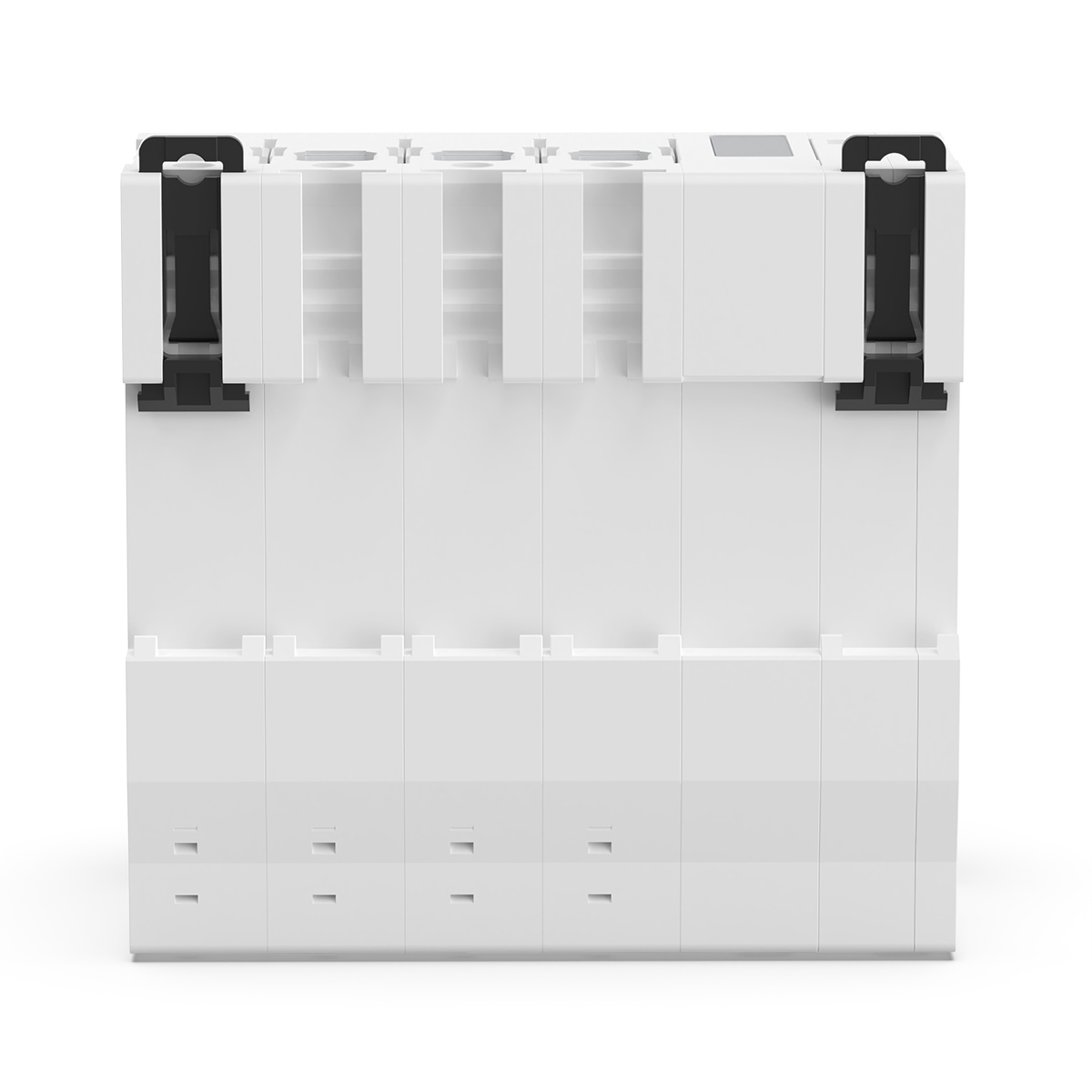

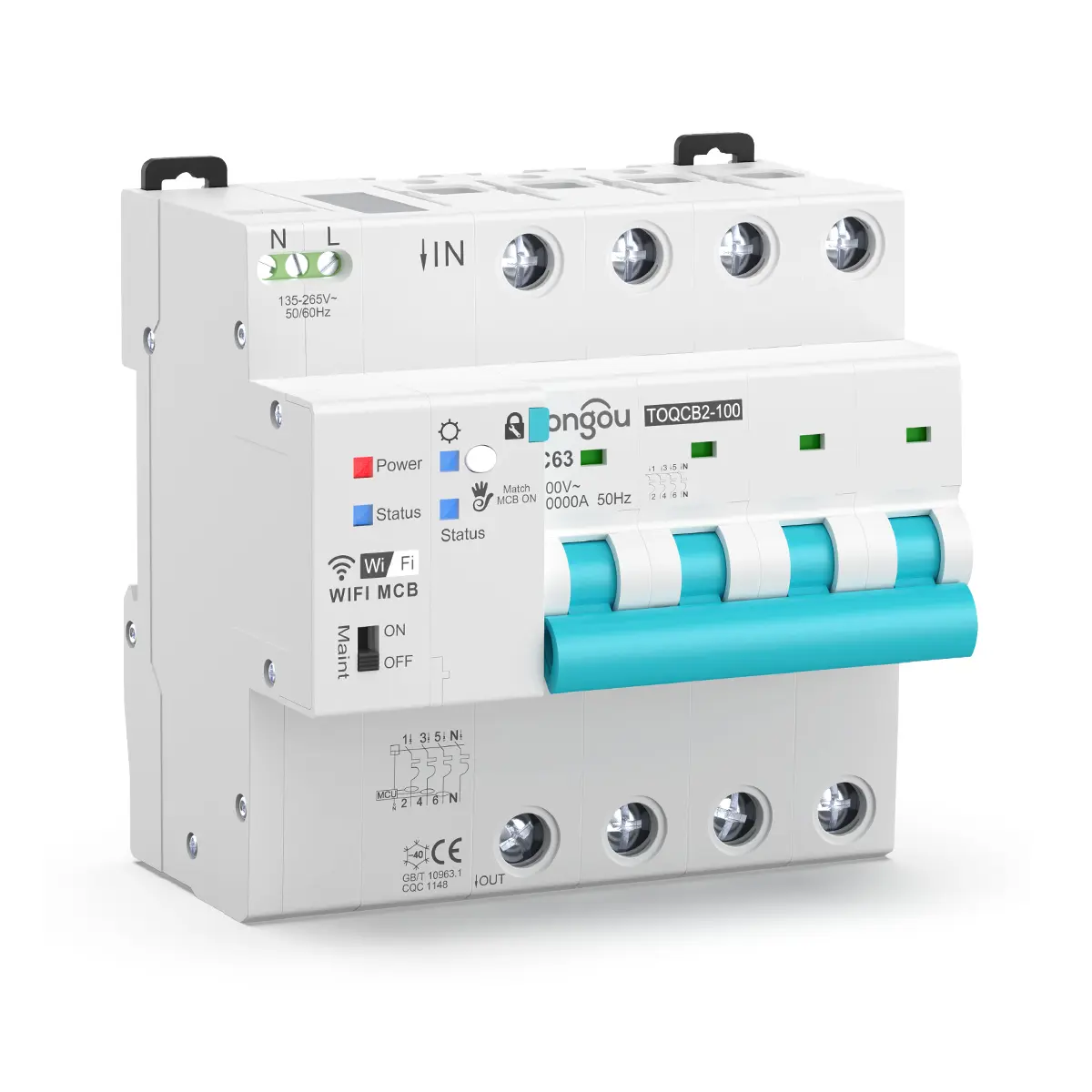

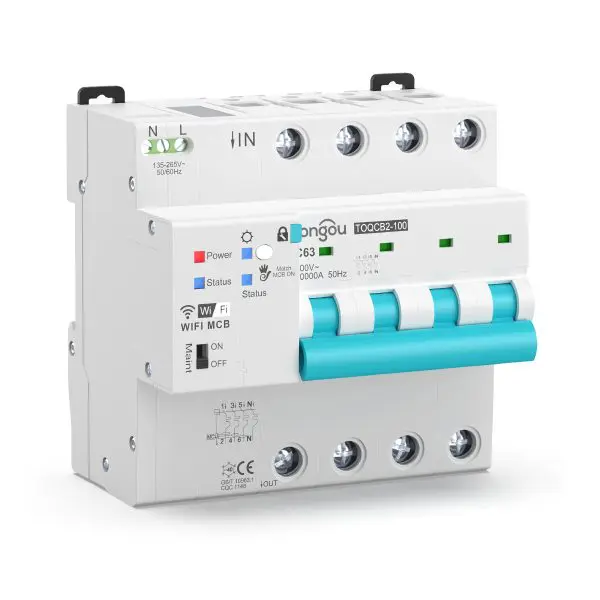

Product or component type | TOQCB2 |
Poles description | 3P+N |
Control Type | Remote, Manual |
Rated Current (In) | 16A 20A 32A 40A 50A 63A |
Operating voltage Range | AC 145V – 295V |
Over-voltage Threshold (V) | 245V – 295V |
Under-voltage Threshold (V) | 145V – 220V |
Terminal Temperature Threshold (℃) | -40℃ – 100 ℃ |
Over-power Threshold (W) | 5W – 25000W |
Rated Frequency | 50Hz/60Hz |
Over-current Threshold (A) | 1A – 63A |
Operating system support | Android, iOS, HarmonyOS |
Operating Language | Chinese, English, and Other |
Voice Support | Amazon Alexa, Google Home |
App Language | Follow the operating system language |
Communication Protocol | WiFi 2.4Hz (default), ZigBee 3.0, 4G (customization) |
Function | Timing, Electricity monitoring, Over-current Protection, Short-circuit protection, Under-voltage protection, Over-voltage protection |
