General
Built for outdoor control, not just indoor convenience

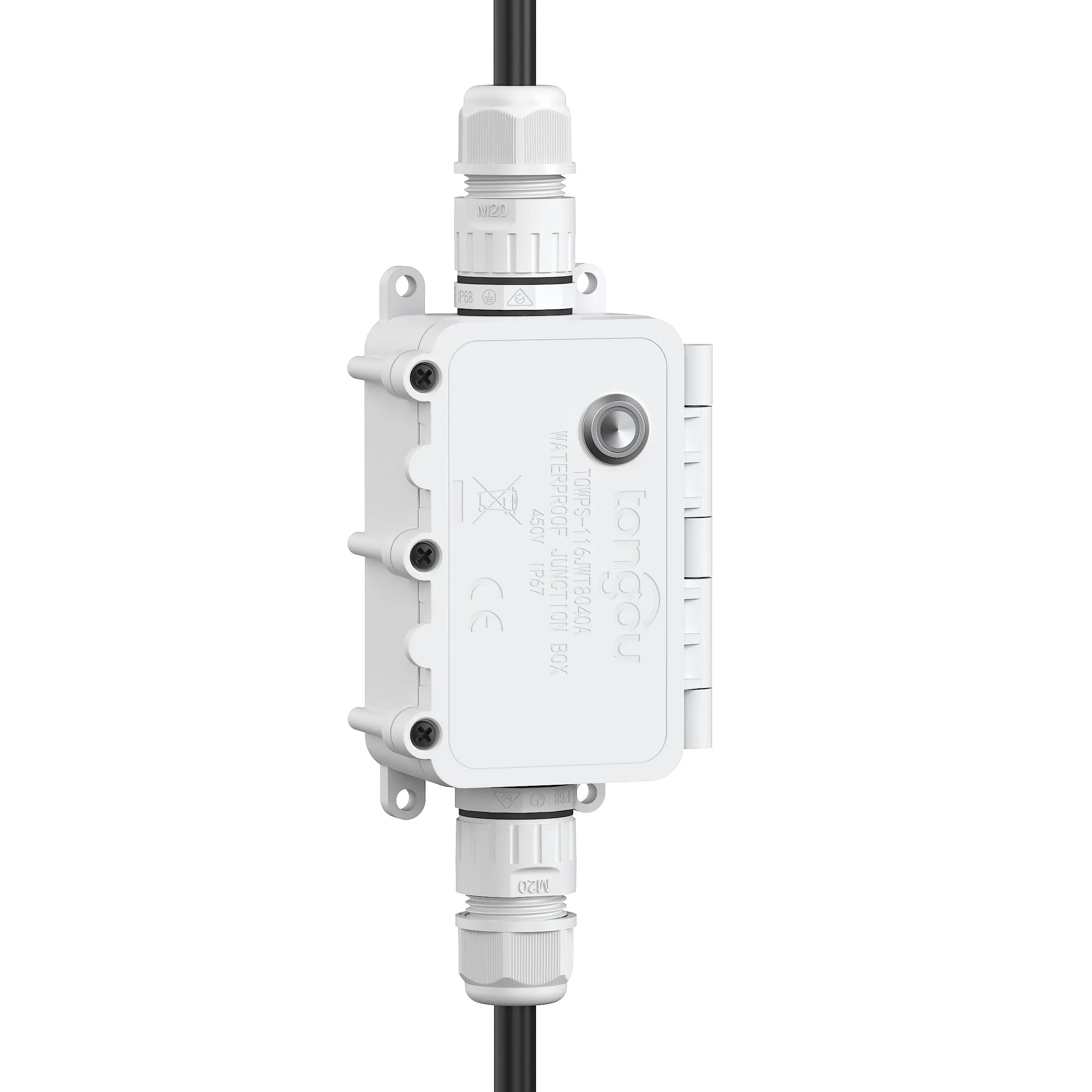

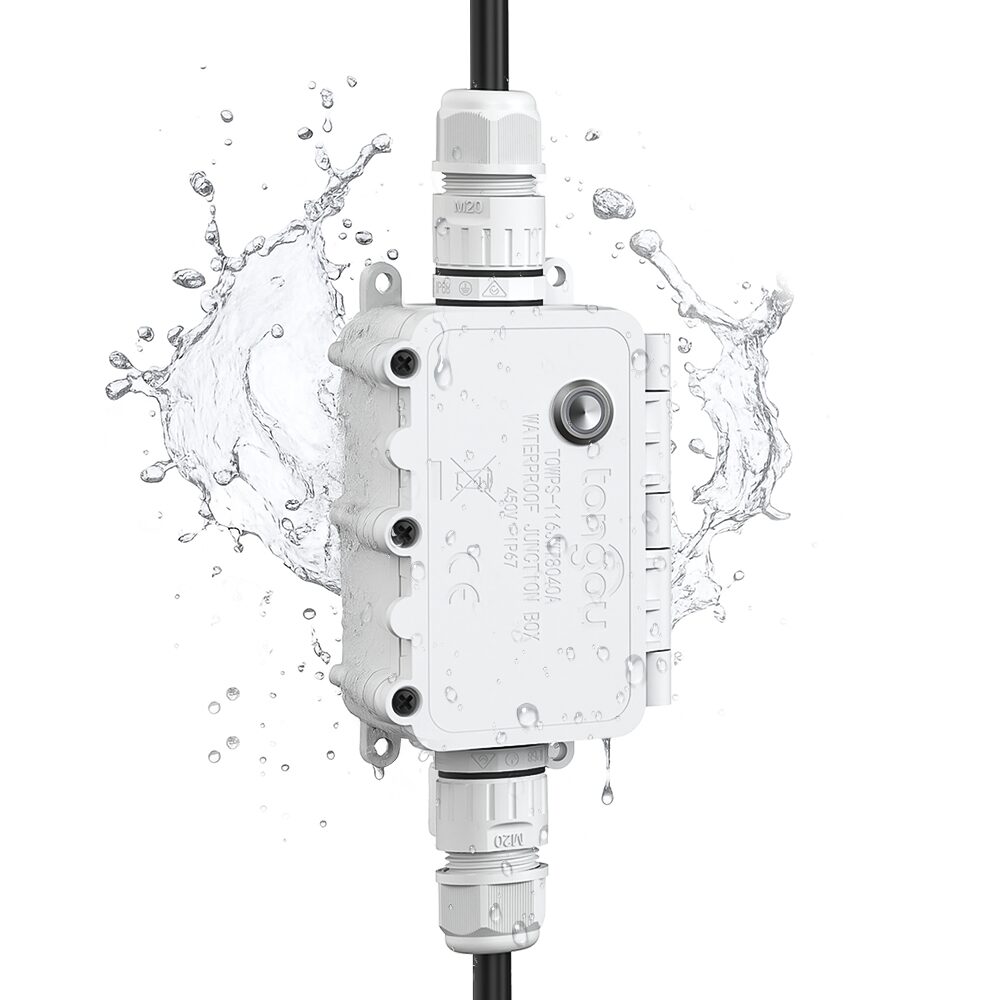

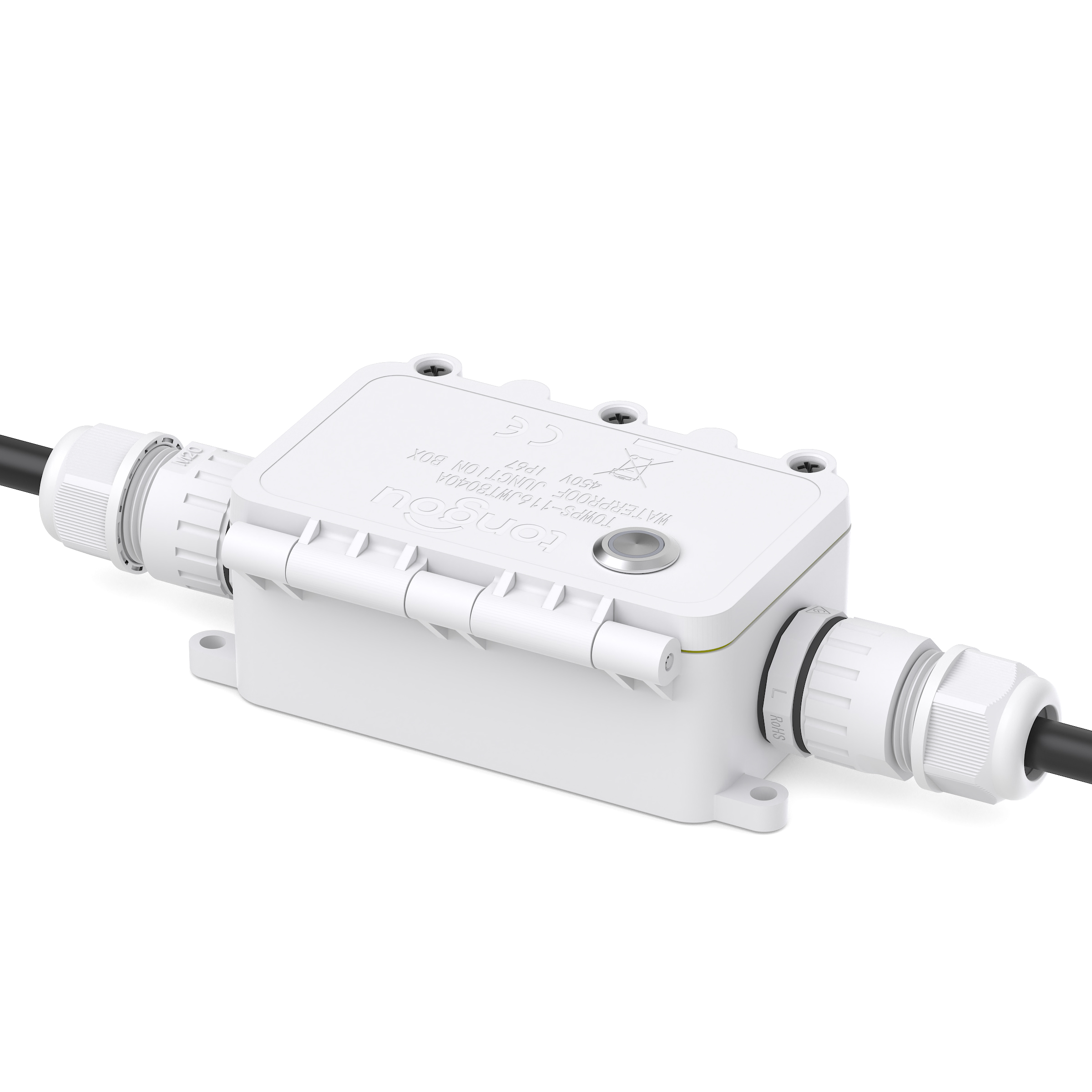

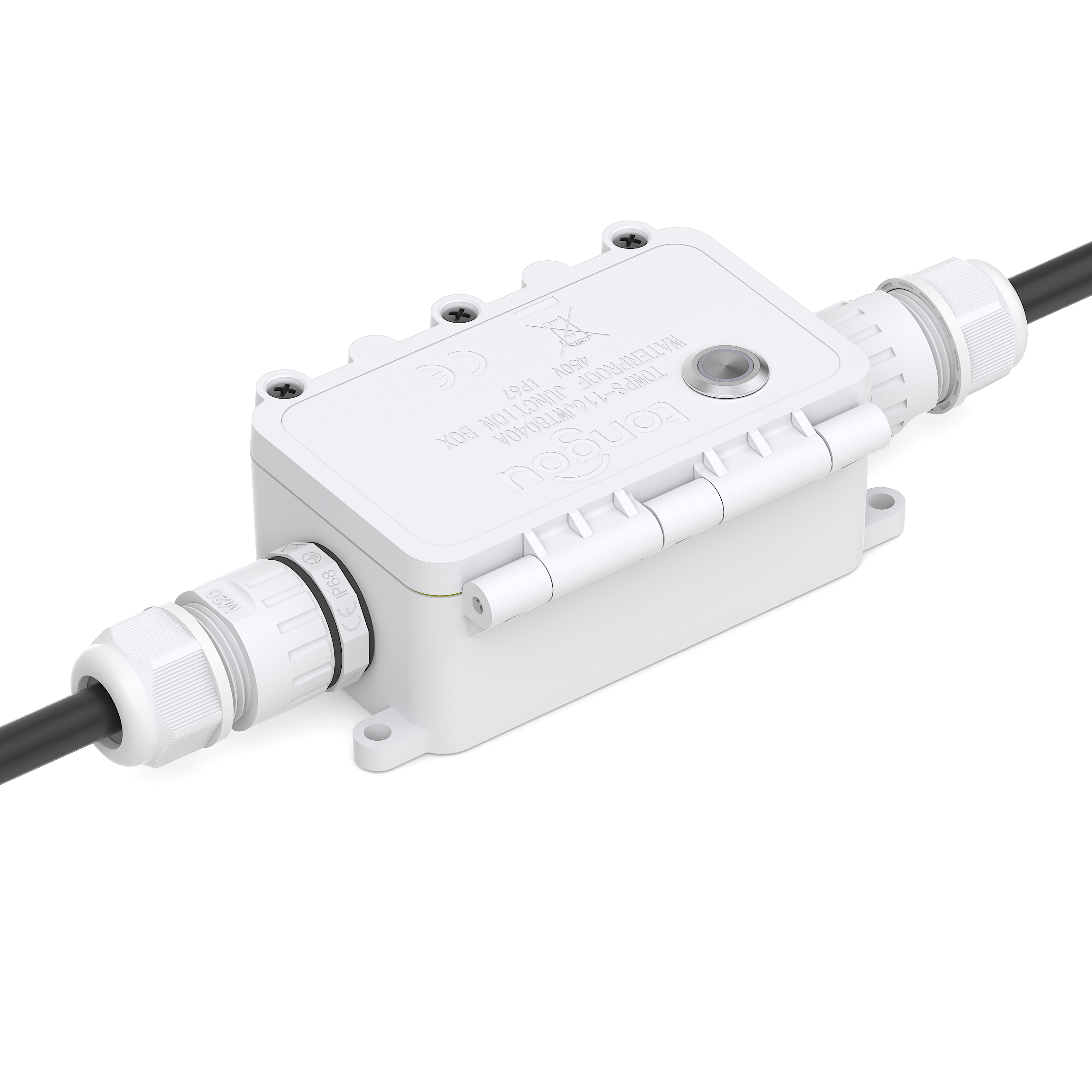

With an IP67 sealed enclosure and M20 cable glands, TOWPS-116JWT8040A helps you upgrade traditional wiring into a smart, app-controlled circuit while keeping protection against dust and water ingress. The enclosure marking shows IP67 and 450V.
Key Features
Waterproof enclosure (IP67) for outdoor and damp environments
Smart Life app control (QR code provided in the manual)
2.4GHz Wi-Fi wireless (IEEE 802.11 b/g/n, 2.412–2.484GHz)
Remote control + Voice control
Real-time monitoring: power / current / voltage
Electricity consumption statistics + Multiple timing + Operation log
Protection thresholds (as listed in the manual):
Over-current: 1–16A
Under-voltage: 100–240V
Over-voltage: 100–265V
Installation Notes
Recommended conductor: 1–2.5 mm² (AWG 18–13)
Strip length: 10 mm
Technical Data
| TOWPS-116JWT8040A WiFi Smart Waterproof Junction Box | |
| Poles description | 1P + N |
| Control Type | Remote, Manual |
| Rated Current (In) | 16A |
| Operating voltage Range | AC 100V – 240V |
| Over-voltage Threshold (V) | 100V – 265V |
| Under-voltage Threshold (V) | 100V – 240V |
| Over-current Threshold (A) | 1A – 16A |
| Voice Support | Voice Control |
| Communication Protocol | Wi-Fi (2.412–2.484GHz, IEEE 802.11 b/g/n) |
| Function | Remote Control, Voice Control, Real-time Power/Current/Voltage, Electricity Consumption, Multiple Timing, Operation Log |
| Ingress Protection | IP67 |
| Conductor / Strip Length | 1–2.5 mm² (AWG 18–13) / 10 mm |
