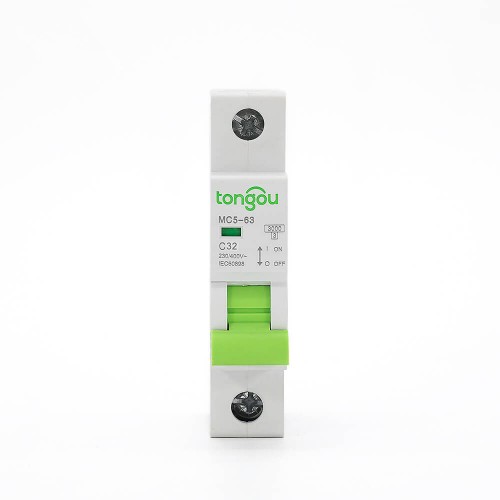

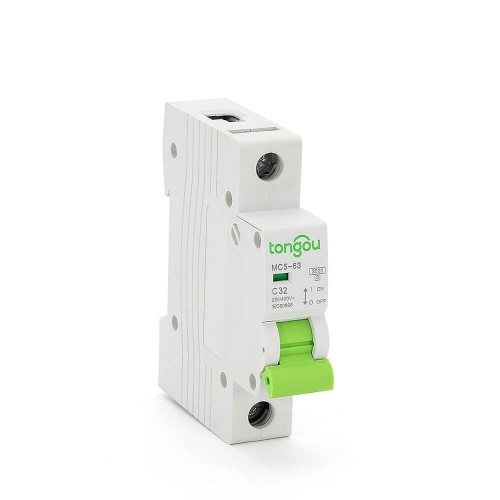

TOMC5-63 32A Mini Circuit Air Breaker MCB
Mini Circuit Air Breaker MCB guarantees the downstream circuit is always safe regardless of overvoltage conditions, even in the most demanding environments; the green strip indicates the safe position of contacts.
It allows fast diagnosis, resolution, and reclosing loads for easier building management and reduced downtime.
Mini Circuit Air Breaker MCB Special Tips
1.Mini circuit Air breaker MCB is for non-professional operation by untrained personnel without maintenance.
2. Choose a suitable trip curve and install it correctly, MCB will trip and close its protected circuit when a fault occurs, thereby providing protection against electric shock.
3. Particular devices such as surge protective devices,surge arrester etc are recommended to install at upstream line to MCB as precaution against potential surge voltage and current occurring at its power input side.
4. B,C,D tripping curve.
5. Satisfying conditions and applications as mentioned above,MCB with “ON-OFF” indicating device is considered suitable for isolation function.
| Model Name | TOMC5-63/1/C32 |
| Pole No: | 1 |
| Rated voltage: | AC 110V 220V |
| Rated current(A): | 32 |
| Tripping curve: | C |
| Rated short-circuit capacity(lcn): | 3kA |
| Rated frequency: | 50/60Hz |
| Energy limiting class: | 3 |
| Rated impulse withstand voltage: | 6.2kV |
| Electro-mechanical endurance: | ≥ 6000 |
| Connection terminal: | Screw terminal / Pillar terminal with calmp |
| Connection capacity: | Rigid conductor up to 25mm² |
| Fastening torque: | 2.0Nm |
| Installation: | On symmetrical DIN rail 35mm / Panel mounting |
| Standards | IEC 61009-1, EC 61008-1, AS/NZS 61008-1 |
| IP degree of protection | IP40 for modular enclosure conforming to IEC 60529 |
| IP20 conforming to IEC 60529 | |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | -5°C to +60°C |
| Ambient air temperature for storage | -40°C to +85°C |
| Type | Width 9 mm modules | ||||
| 1P | Rating (In) | B Curve | C Curve | D Curve |
2 |
| 1A | TOMC5-63/1/B1 | TOMC5-63/1/C1 | TOMC5-63/1/D1 | |
| 3A | TOMC5-63/1/B3 | TOMC5-63/1/C3 | TOMC5-63/1/D3 | ||
| 5A | TOMC5-63/1/B5 | TOMC5-63/1/C5 | TOMC5-63/1/D5 | ||
| 6A | TOMC5-63/1/B6 | TOMC5-63/1/C6 | TOMC5-63/1/D6 | ||
| 10A | TOMC5-63/1/B10 | TOMC5-63/1/C10 | TOMC5-63/1/D10 | ||
| 16A | TOMC5-63/1/B16 | TOMC5-63/1/C16 | TOMC5-63/1/D16 | ||
| 20A | TOMC5-63/1/B20 | TOMC5-63/1/C20 | TOMC5-63/1/D20 | ||
| 25A | TOMC5-63/1/B25 | TOMC5-63/1/C25 | TOMC5-63/1/D25 | ||
| 32A | TOMC5-63/1/B32 | TOMC5-63/1/C32 | TOMC5-63/1/D32 | ||
| 40A | TOMC5-63/1/B40 | TOMC5-63/1/C40 | TOMC5-63/1/D40 | ||
| 50A | TOMC5-63/1/B50 | TOMC5-63/1/C50 | TOMC5-63/1/D50 | ||
| 63A | TOMC5-63/1/B63 | TOMC5-63/1/C63 | TOMC5-63/1/D63 | ||
