Circuit breakers are essential safety devices that protect electrical circuits from damage caused by overcurrent, short circuits, and other electrical faults. They play a critical role in both residential and industrial electrical systems by interrupting excessive current flow and preventing potential hazards such as fires and equipment damage.

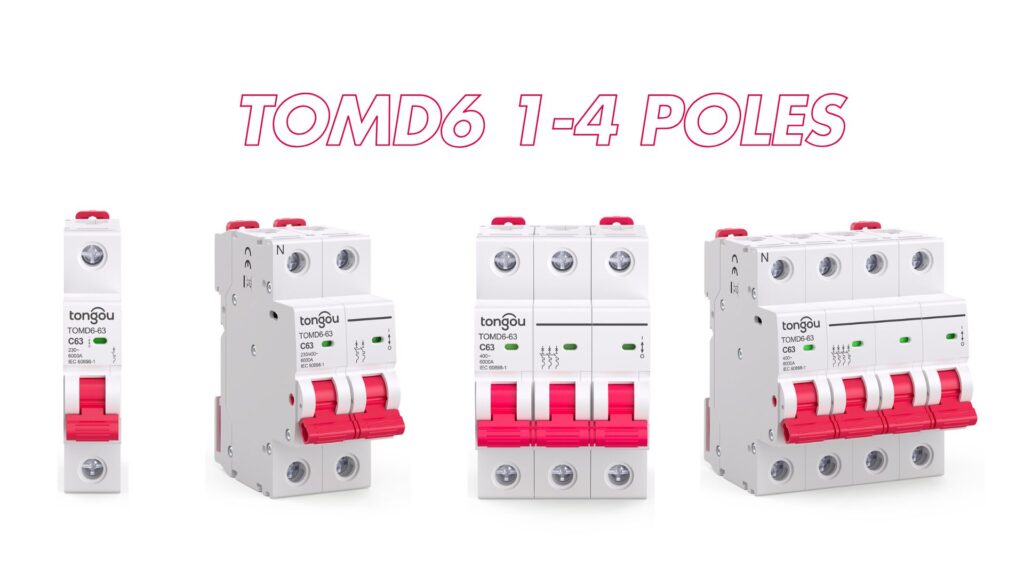

1. Single-Pole Breakers: Typically used for 120V circuits in residential applications.
2. Double-Pole Breakers: Commonly used for 240V circuits and handle higher loads.
3. Triple-Pole (3P) Breakers: Designed for three-phase electrical systems, typically used in industrial or commercial settings.
4. Four-Pole (4P) Breakers: Used in complex electrical systems where neutral disconnection or protection is required alongside the three-phase system.
3 Pole Circuit Breakers:
——Three-Phase Systems: Primarily used in three-phase electrical systems, where each pole corresponds to one of the three phases.
——Overcurrent Protection: Provides protection against overloads and short circuits in all three phases.
——Load Balancing: Helps in maintaining balanced loads across the three phases.
——Applications: Common in industrial settings, machinery, and large HVAC systems.
4-Pole Circuit Breakers:
——Three-Phase Systems with Neutral: Used in three-phase systems that require a neutral connection, providing protection and disconnection for all three phases and the neutral.
——Neutral Protection: Ensures that any fault involving the neutral conductor is protected, which is critical in certain configurations.
——Enhanced Safety: Provides comprehensive safety for complex electrical systems, where neutral faults could otherwise go undetected.
——Applications: Used in specific industrial and commercial settings, such as data centers, hospitals, and installations requiring a UPS (Uninterruptible Power Supply).
In some scenarios, it may be necessary or advantageous to replace a 3-pole breaker with a 4-pole breaker. This replacement is typically driven by the need for improved safety, enhanced protection, or compatibility with modern electrical standards.
When to Consider Replacement:
——Adding Neutral Protection: If your three-phase system requires neutral fault protection, upgrading to a 4-pole breaker is advisable.
——Code Compliance: New electrical codes or standards may require the use of 4-pole breakers in certain applications.
——System Upgrades: Upgrading to smart breakers or systems that necessitate neutral protection and enhanced monitoring.
1. Data Centers:
——Critical Uptime: Data centers require reliable power systems to ensure continuous operation of servers and network equipment. 4-pole breakers provide comprehensive protection, including neutral fault prevention, critical for maintaining uptime.
2. Hospitals:
——Patient Safety: Hospitals rely on uninterrupted power for medical equipment and life-support systems. 4-pole breakers ensure safe operation by protecting against both phase and neutral faults, which can be vital in sensitive medical environments.
3. Commercial Buildings:
——Building Management Systems: Large commercial buildings equipped with advanced automation systems benefit from the enhanced protection offered by 4-pole breakers, which help manage complex electrical
consumption and protect against neutral faults.
4. Industrial Automation:
——Machinery Safety: Industrial settings with automated machinery and robotics require robust protection to ensure smooth operations. 4-pole breakers safeguard against both phase and neutral issues, reducing the risk of equipment damage and downtime.
5. Uninterruptible Power Supply (UPS) Systems:
——Reliable Backup Power: Facilities that use UPS systems for critical equipment need 4-pole breakers to ensure both normal and backup power circuits are adequately protected. This helps to maintain the integrity of the power supply during transitions between normal and backup power sources.
Understanding the differences between 3-pole and 4-pole circuit breakers is crucial for ensuring the safety and efficiency of complex electrical systems. While both types of breakers serve essential roles in protecting electrical circuits, 4-pole breakers provide enhanced protection by addressing neutral connections, making them ideal for specific industrial, commercial, and mission-critical applications.
Assessing your system’s requirements, keeping up with regulatory changes, and considering the long-term benefits of enhanced safety and monitoring are essential factors in deciding whether to upgrade from a 3-pole to a 4-pole breaker. Additionally, the advent of smart breakers offers new opportunities for remote control, energy management, and improved diagnostics, making them a valuable addition to modern electrical systems.
