How do you know about electrical products and how to choose the right one for you when you are faced with a wide range of products? What is RCBO and what is MCB?How much do you know, this article will tell you something about MCB.
A Miniature Circuit Breaker (MCB) is a vital electrical component designed to protect electrical circuits from overloads and short circuits. MCBs act as automatic switches that interrupt the flow of electric current when abnormal conditions occur, preventing damage to equipment, wiring, and appliances. These compact devices are commonly used in residential, commercial, and industrial settings to ensure the safety and reliability of electrical installations.

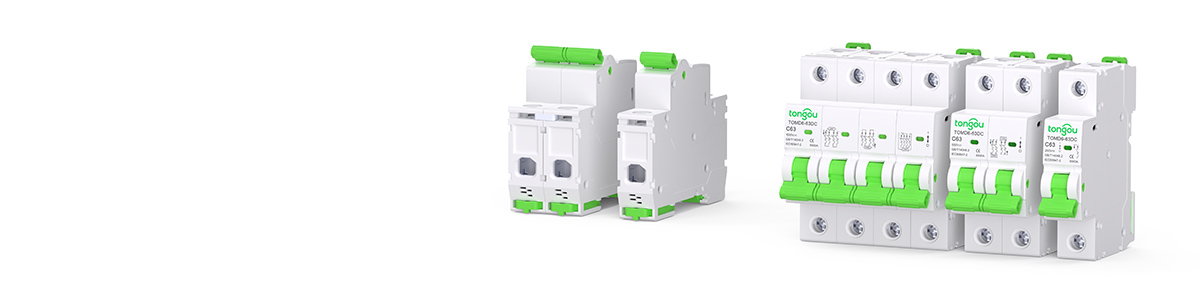

Direct Current Miniature Circuit Breakers (DC MCB) are crucial components in electrical systems that utilize direct current as their power source. These breakers are specifically designed to protect circuits from overloads and short circuits by interrupting the flow of electric current when necessary. DC MCBs are commonly used in various applications, including solar power systems, battery banks, and automotive electronics.

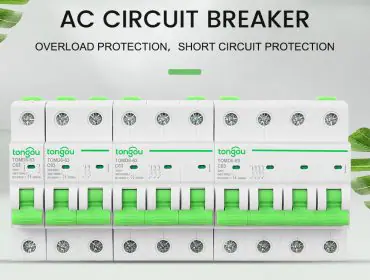

Alternating Current Miniature Circuit Breakers (AC MCB) are essential safety devices used in alternating current electrical systems. These breakers serve to safeguard circuits from overloads and short circuits by disconnecting power when abnormal conditions are detected. AC MCBs are commonly employed in residential, commercial, and industrial environments to ensure the safe operation of electrical installations.
The primary differences between AC and DC MCBs lie in their operational requirements, design features, and response mechanisms:
①Operational Voltage: AC MCBs are optimized for alternating current systems, while DC MCBs are tailored for direct current systems with specific voltage ratings.
②Polarity Handling: DC MCBs must be capable of handling both polarities of current flow, unlike AC MCBs, which operate with a single phase.
③Arc Suppression: DC MCBs require specialized arc suppression mechanisms due to the continuous nature of DC current, whereas AC MCBs rely on the periodic zero-crossings of alternating current for arc extinguishing.
Because the difference between DC MCB and AC MCB.When selecting an MCB for your electrical system, consider the following factors:
①Application: Determine whether you need a DC or AC MCB based on your system’s power source.
②Rating: Choose an MCB with the appropriate voltage and current rating suitable for your application.
③Breaking Capacity: Ensure the MCB’s breaking capacity exceeds the fault current levels to effectively protect the circuit.
④Tripping Characteristics: Select a trip curve that matches the inrush current and fault conditions of your load.
⑤Quality and Standards: Opt for MCBs from reputable manufacturers that comply with industry standards to guarantee reliability and safety.
In conclusion, understanding the difference between DC MCB and AC MCB is crucial for selecting the right circuit protection device for your specific application. By considering the unique requirements of direct current and alternating current systems, along with factors like voltage rating, trip characteristics, and quality standards, you can make an informed decision that enhances the safety and efficiency of your electrical setup.
Q: Can AC MCB be used for DC?
A: No, AC MCBs are specifically designed for alternating current systems and are not suitable for use in direct current applications. Using an AC MCB for DC circuits can lead to safety hazards and malfunctioning of the circuit protection device.
Q: How to wire a DC MCB?
A: When wiring a DC MCB, ensure that the positive terminal of the circuit is connected to the line side of the MCB and the negative terminal is connected to the load side. It’s crucial to follow the manufacturer’s instructions and adhere to proper wiring practices to ensure the safe and effective operation of the circuit breaker.
Q: How to identify DC MCB?
A: To identify a DC MCB, look for specific markings or labels on the device indicating that it is suitable for use in direct current systems. These markings may include voltage ratings, current ratings, and other specifications tailored for DC applications. Additionally, consult the product documentation or datasheet for confirmation.
