Video
General

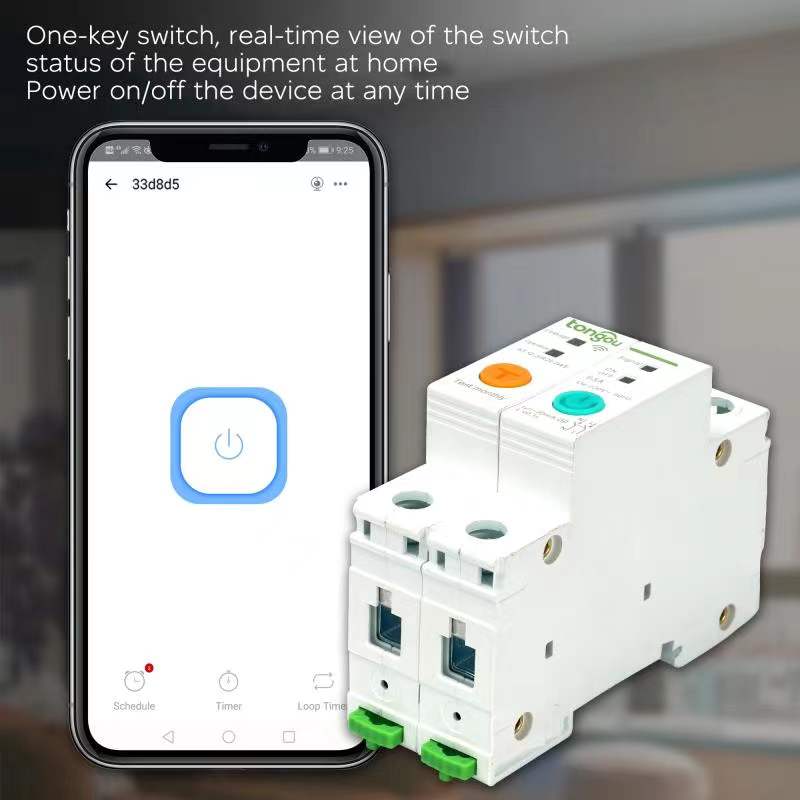

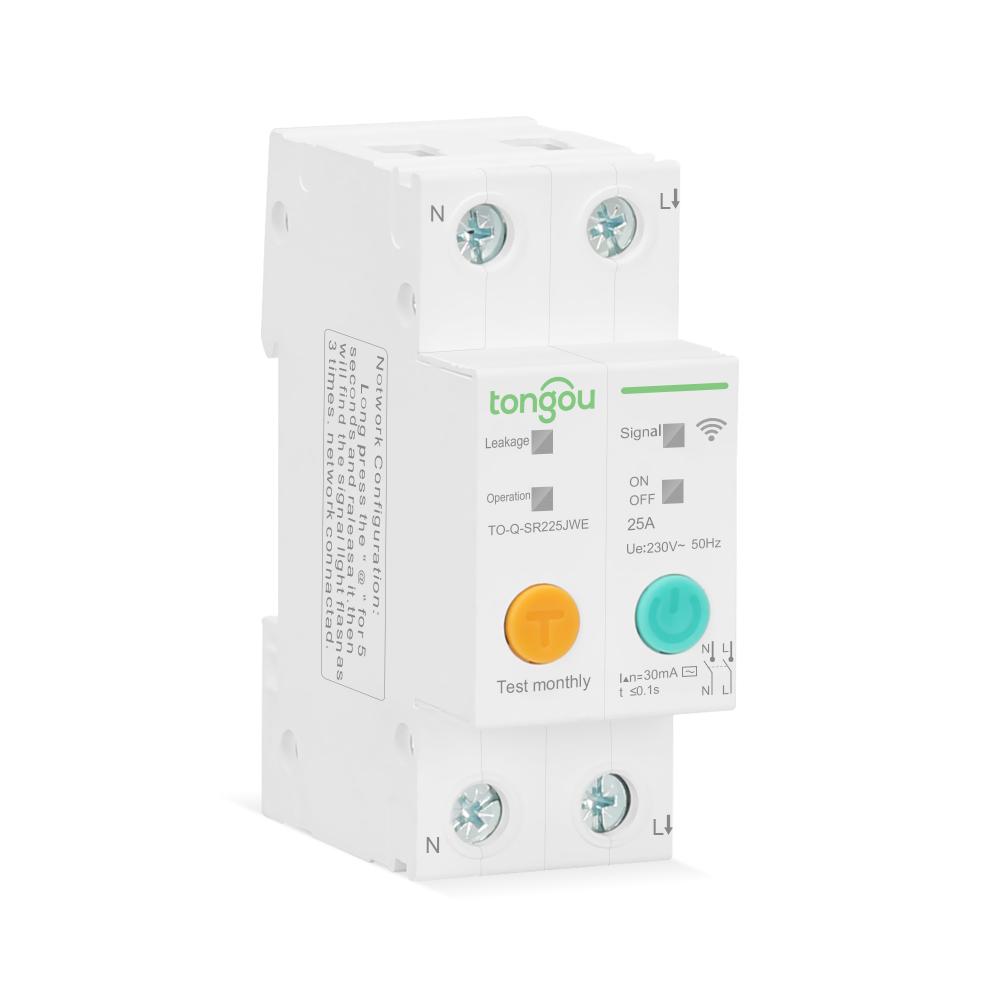

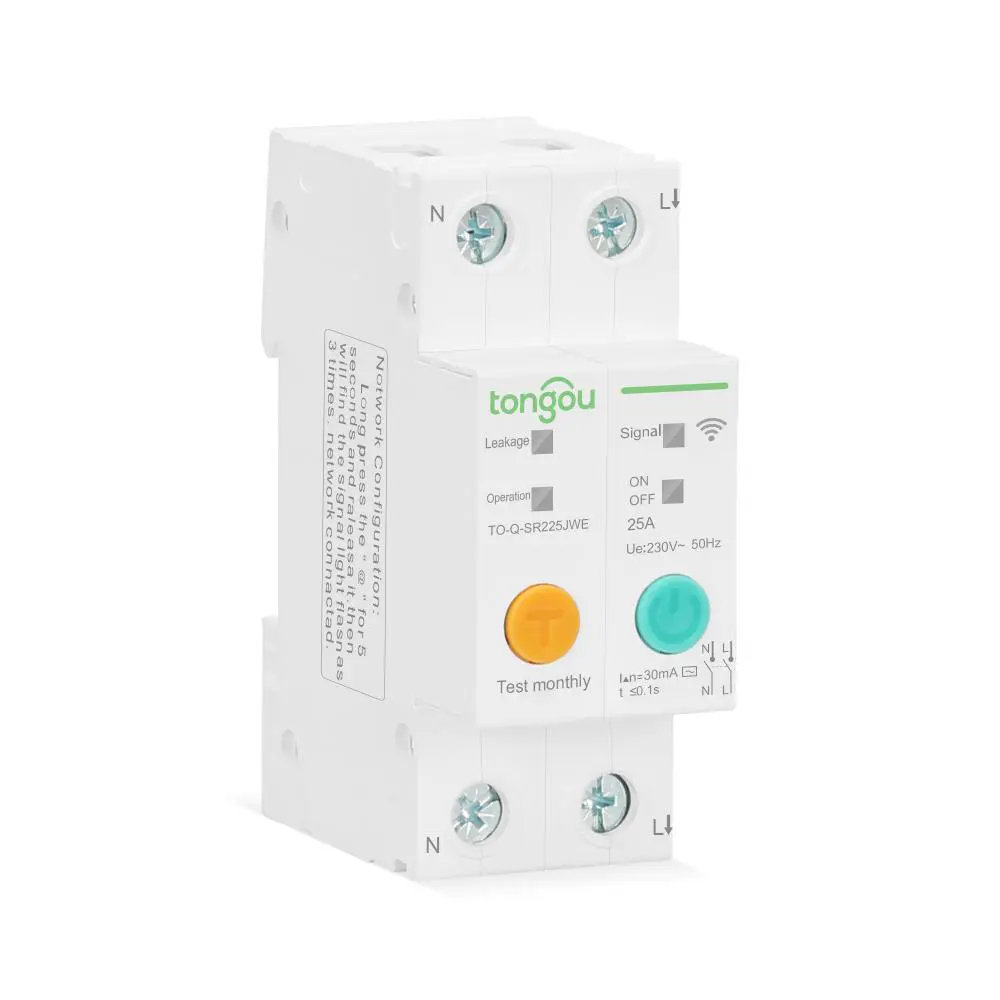

Wifi Circuit Breaker Switch Notice:
Wifi Circuit Breaker Switch is suitable for circuits with a rated current of 16A, 25A, 32A, 40A, 50A, and 63A.
Feature:
Remote control at any time from anywhere by weblink app on mobile, no distance limit.
Schedule /Timing, countdown, cycle timing.
Leakage Protection: 30mA.
Voice control by Amazon Alexa echoes dot and Google Assistant.
Parameter:
1. Working voltage: AC90-280V,50/60Hz
2.Current type:63A(Suggest under 40A)
3. Wireless type: Wi-Fi 2.4GHz
4. Support system: Android\iOS
Technical Data
| Product or component type | Din Rail Smart WiFi switch |
| Poles description | 2P |
| Function | Timing, Countdown, Loop timing, Metering |
| Rated Current (In) | 1A, 2A, 3A, 4A, 5A, 6A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
| Operating voltage Range | AC 90V – 280V |
| Rated Frequency | 50Hz/60Hz |
| Control Type | Remote, Manual |
| Communication Protocol | WiFi 2.4Hz |
| Operating system support | Android, iOS, HarmonyOS |
| Operating Language | Chinese, English |
| App Language | Follow the operating system language |
| Voice Support | Amazon Alexa, Yandex Alice |
