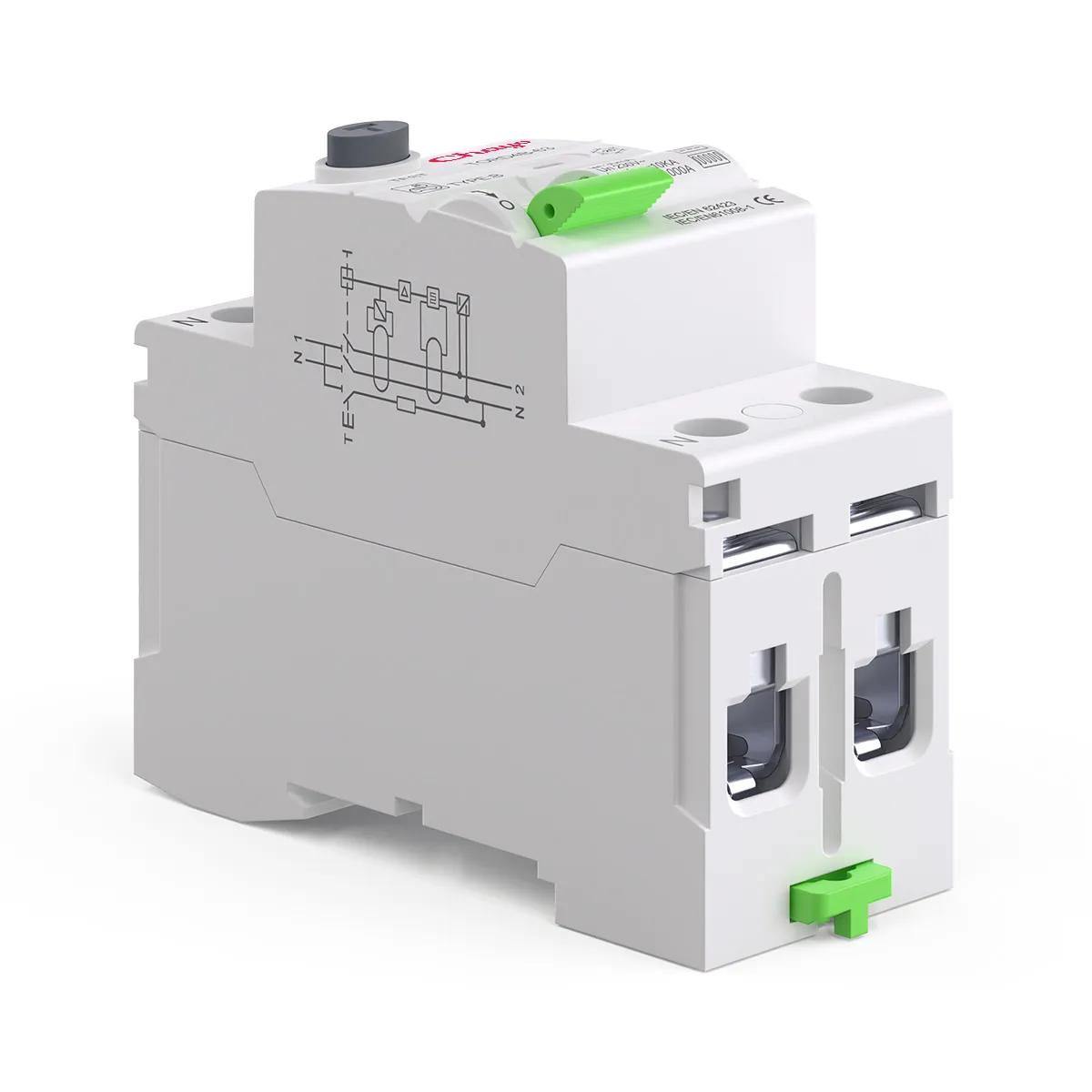

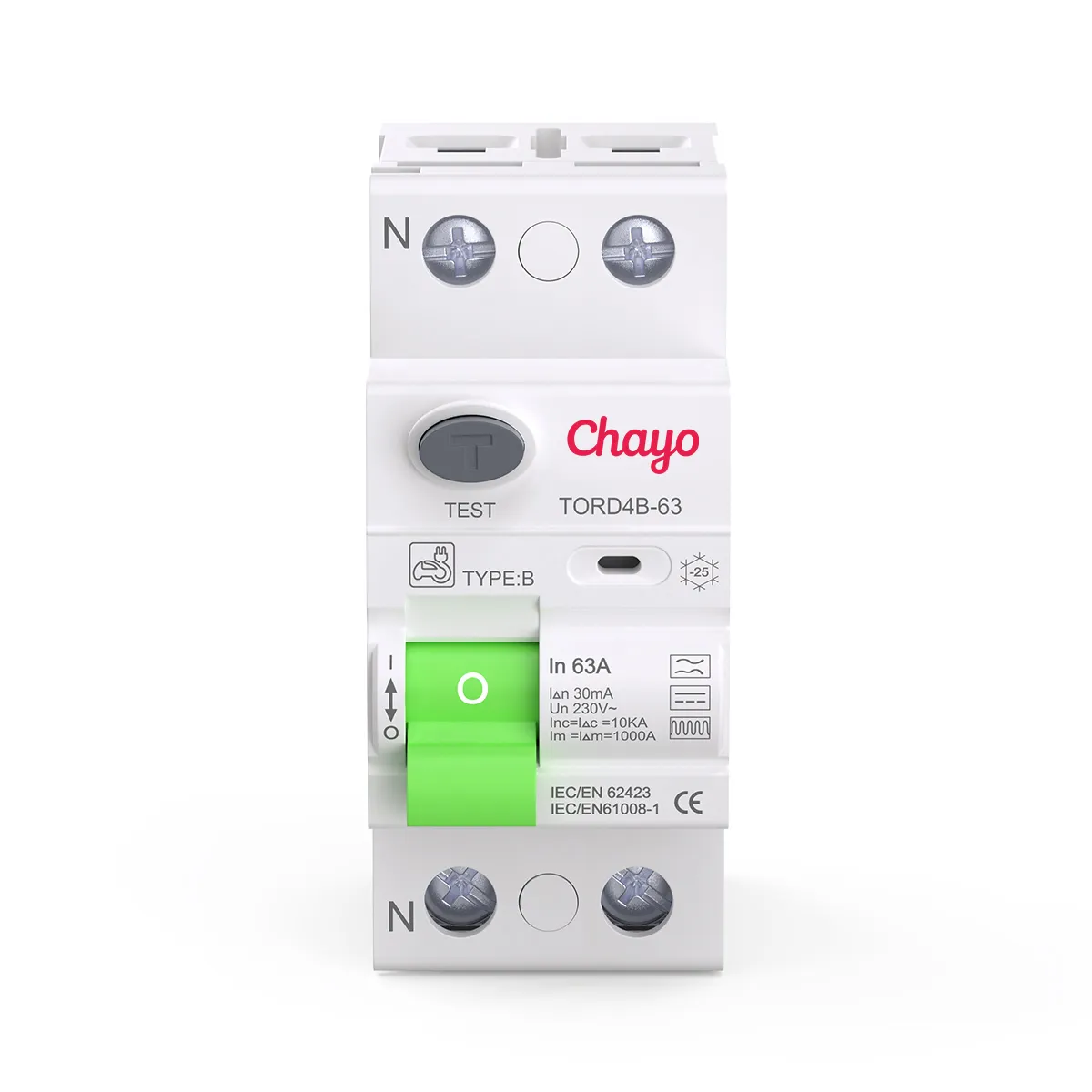

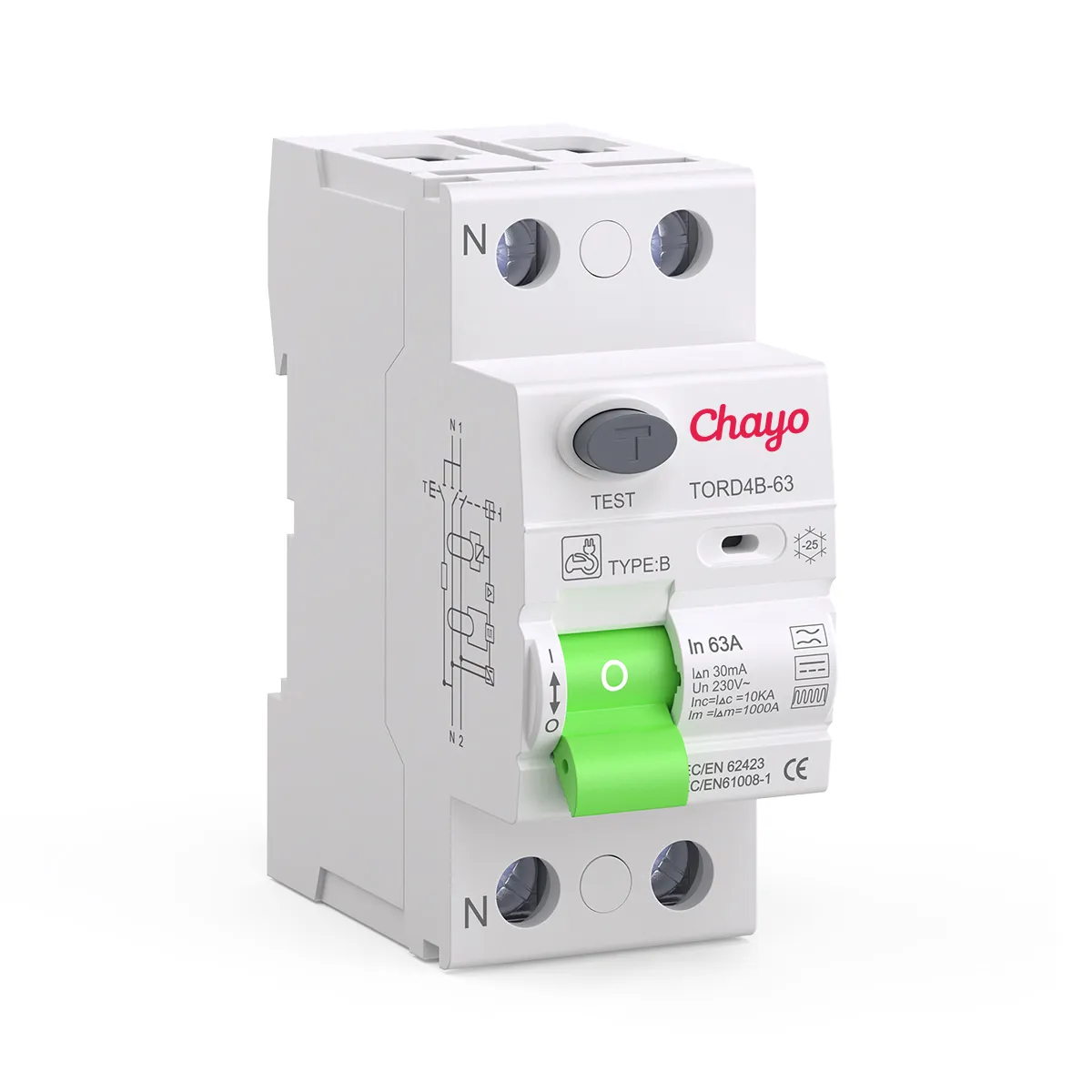

Type B RCD RCCB General:
Type B RCD is The most suitable leakage protector for us now and in the future. With the diversification of energy and equipments use, the interactive use of AC and DC, and the products with many different waveform signals, we need higher-level residual current protection circuit breakers to protect our personal safety and avoid the danger of electric shock.
Type B RCD RCCBs, in addition to normal AC, can detect high frequency AC and pure DC earth leakage currents.
Reducing the risk of fire and/or electrocution through automatic disconnection of the electrical supply relies on the selection of the correct type of RCCB.
View B Type RCD
Type B RCD RCCB application:
1.Electric vehicle charging system;
2.Solar Photovoltaic (PV) systems;
3.Frequency converter;
4.UPS System;
5.High frequency power converter;
6.Building site power cabinet;
7.Inverter;
8.lift.
| Model Name | TORD4B-63 |
| Model | Electromagnetic Type |
| Residual Current characteristic: | B type |
| Pole No: | 2P |
| Rated making and breaking capacity | 630A |
| Rated current（A） | 16-63A |
| Rated voltage | 110 / 230 V |
| Rated frequency | 50/60 Hz |
| Rated residual operating current |△(A): | 0.03, 0.1, 0.3 |
| Rated residual non operating current |△ no: | 0.5 |△ n |
| Rated conditional short-circuit current inc: | 10 kA |
| Rated conditional residual short-circuit current |△c: | 10 kA |
| Tripping duration: | Instantaneous tripping ≤0.1s |
| Residual tripping current range: | 0.5||△n~|△n |
| Electro-mechanical endurance | ≥5000 cycles |
| Connection capacity: | Rigid conductor 25mm²; |
| Connection terminal | Screw terminal Pillar terminal with clamp |
| Fastening torque | 3.5 Nm |
| Installation | On symmetrical DIN rail 35mm |
| Type Product | B | Width 9 m m module | ||||
| Sensitivity | 30mA | 100mA | 300mA | 500mA | ||
2P Rating
| 20A | TORD4B-63/2/25/003 | TORD4B-63/2/25/01 | TORD4B-63/2/25/03 | – | 4 |
| 40A | TORD4B-63/2/40/003 | TORD4B-63/2/40/01 | TORD4B-63/2/40/03 | – | ||
| 63A | TORD4B-63/2/63/003 | TORD4B-63/2/63/01 | TORD4B-63/2/63/03 | – | ||
| Voltage rating(Ue) | 2P | 230-240V | ||||
| Operating frequency | 50Hz | |||||
