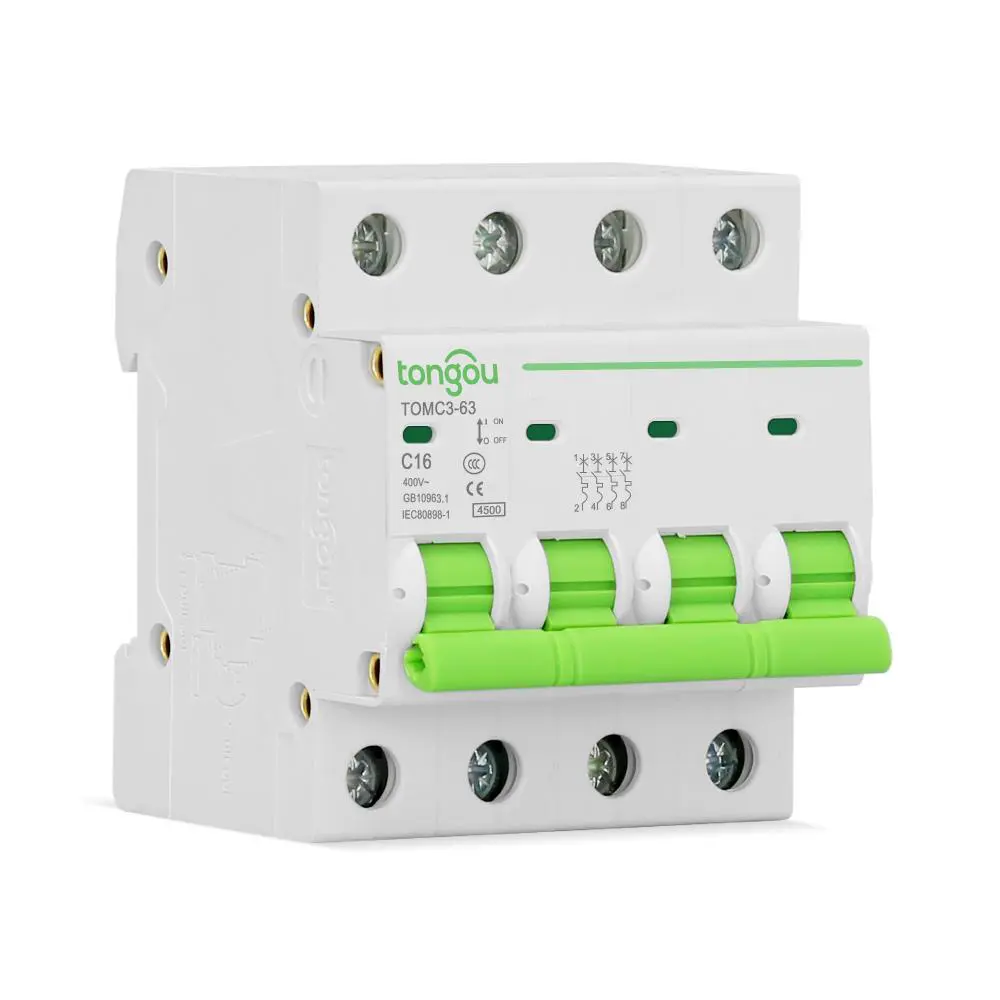

AC 4P 16A MCB
TOMC3-63 AC 4P 16A MCB provides indirect protection to the operator’s body under such conditions that the exposed live parts should be connected to a proper earthing pole.
It also provides protection against the fire danger caused by earth fault current due to function failure of the over-current protection device.
AC 4P 16A MCB Special Tips
1. B, C, D tripping curve.
2. Choose a suitable tripping curve and install it correctly. MCB trips and cuts off its protected circuit when a fault occurs, thereby providing electric shock protection.
3. It is recommended to install special devices, such as surge protection devices, lightning arresters, etc., on the upstream line of the MCB to prevent potential surge voltage and current from appearing on the power input side.
4. MCB is for non-professional operation by untrained personnel without maintenance.
5. To meet the above conditions and applications, MCB with an “ON-OFF” indicates the device is considered suitable for isolation function.
| Model Name | TOMC3-63/4/C16 |
| Pole No: | 4 |
| Rated voltage: | AC 110V 220V 400V |
| Rated current(A): | 16 |
| Tripping curve: | C |
| Rated short-circuit capacity(lcn): | 3kA |
| Rated frequency: | 50/60Hz |
| Energy limiting class: | 3 |
| Rated impulse withstand voltage: | 6.2kV |
| Electro-mechanical endurance: | ≥ 6000 |
| Connection terminal: | Screw terminal / Pillar terminal with clamp |
| Connection capacity: | Rigid conductor up to 25mm² |
| Fastening torque: | 2.0Nm |
| Installation: | On symmetrical DIN rail 35mm / Panel mounting |
| Standards | IEC 60947-2, IEC 60898-1, EN60898-1 , AS/NES 60898.1 |
| IP degree of protection | IP40 for modular enclosure conforming to IEC 60529 |
| IP20 conforming to IEC 60529 | |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | -35°C to +70°C |
| Ambient air temperature for storage | -40°C to +85°C |
| Type | Width 9 mm modules | ||||
| 4P | Rating (In) | B Curve | C Curve | D Curve |
8 |
| 1A | TOMC3-63/4/B1 | TOMC3-63/4/C1 | TOMC3-63/4/D1 | |
| 3A | TOMC3-63/4/B3 | TOMC3-63/4/C3 | TOMC3-63/4/D3 | ||
| 5A | TOMC3-63/4/B5 | TOMC3-63/4/C5 | TOMC3-63/4/D5 | ||
| 6A | TOMC3-63/4/B6 | TOMC3-63/4/C6 | TOMC3-63/4/D6 | ||
| 10A | TOMC3-63/4/B10 | TOMC3-63/4/C10 | TOMC3-63/4/D10 | ||
| 16A | TOMC3-63/4/B16 | TOMC3-63/4/C16 | TOMC3-63/4/D16 | ||
| 20A | TOMC3-63/4/B20 | TOMC3-63/4/C20 | TOMC3-63/4/D20 | ||
| 25A | TOMC3-63/4/B25 | TOMC3-63/4/C25 | TOMC3-63/4/D25 | ||
| 32A | TOMC3-63/4/B32 | TOMC3-63/4/C32 | TOMC3-63/4/D32 | ||
| 40A | TOMC3-63/4/B40 | TOMC3-63/4/C40 | TOMC3-63/4/D40 | ||
| 50A | TOMC3-63/4/B50 | TOMC3-63/4/C50 | TOMC3-63/4/D50 | ||
| 63A | TOMC3-63/4/B63 | TOMC3-63/4/C63 | TOMC3-63/4/D63 | ||
