General
Isolator & Switch Disconnectors Description

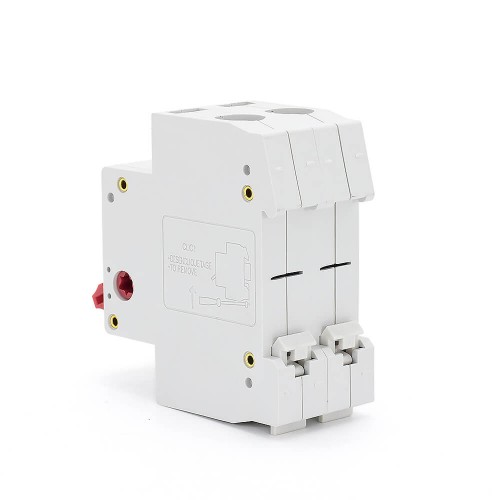

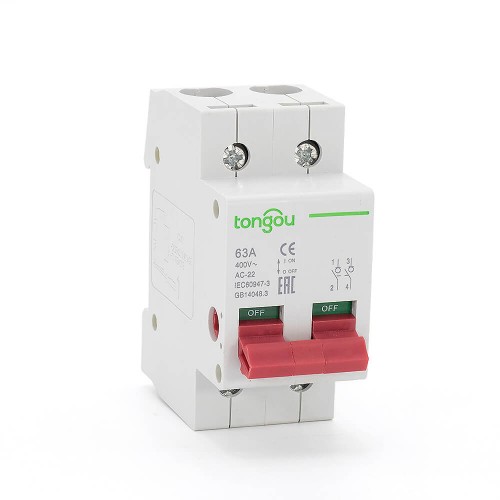

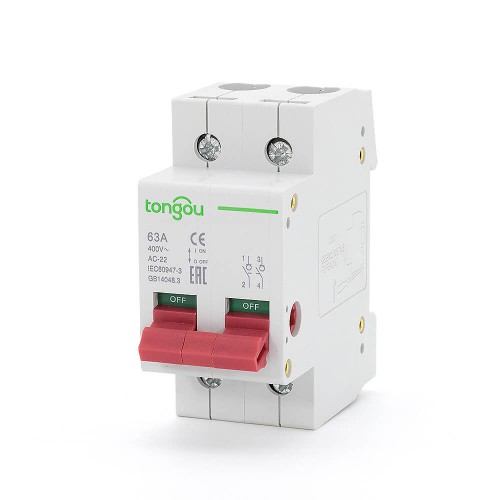

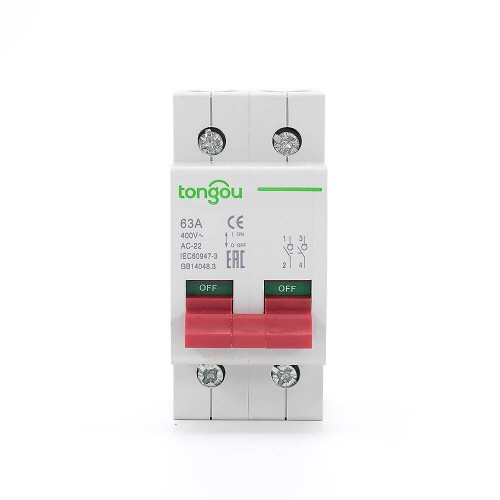

TOD10-100 Isolator & Switch Disconnectors having superior dynamic-heating ability, it is mainly used as a main switch for both terminal assembly electric equipmentcase and illumination assembly case, and to control various motors and small power electric equipment as well.
Technical
■ Pole No: 1,2,3,4
■ Rated current(A): 16,25,40,63,80,100
■ Rated voltage: 230/400V AC
■ Rated frequency: 50/60Hz
■ Rated short-circuit making capacity: 3000A
■ Rated withstand current: 1500A within 1sec
■ Electro-mechanical endurance: 10000 cycles
■ Connection capacity: Rigid conductor 35mm
■ Connection terminal:
- Screw terminal
- Pillar terminal with clamp
■ Installation:
- On symmetrical din rail 35mm
- Panel mounting
