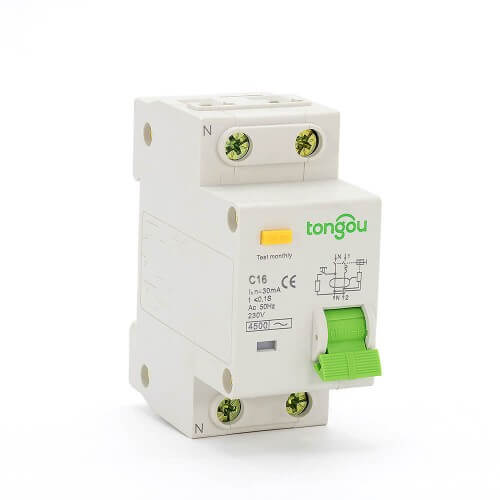

Double Pole RCBO is suitable for circuits with rated voltage 230V AC, frequency 50/60Hz, and rated current below 16Amp.
It provides safety protection for operators, reduces hidden dangers caused by circuit problems, and is widely used in life, which can meet household, industrial, and other scenarios, and provide safety protection for people’s lives.
Double Pole RCBO Special Tips
1. RCBO cannot prevent electric shock caused by direct contact between two protected circuits or leakage current between the two circuits.
2. RCBO with a rated sensitivity of 30mA can be used as an auxiliary protective device to prevent other protective devices from being unable to prevent electric shock.
3. The RCBO overcurrent protection value is fixed and no further adjustments are made.
4. To meet the above conditions and applications, RCCB with an “ON-OFF” indicates the device is considered suitable for isolation function.
| Model Name | TOB10 |
| Model | Electronic type |
| Residual Current characteristic: | AC |
| Pole No: | 1P+N |
| Tripping Curve | C |
| Rated current（A） | 16 |
| Rated voltage | 240V AC |
| Rated frequency | 50/60Hz |
| Rated residual operating current |△(A): | 0.03 |
| Rated residual non operating current |△ no: | 0.5|△ n |
| Rated conditional short-circuit current inc: | 4.5kA |
| Rated conditional residual short-circuit current |△c: | 3kA |
| Tripping duration: | Instantaneous tripping ≤0.1s |
| Residual tripping current range: | 0.5||△n~|△n |
| Electro-mechanical endurance | ≥4000 cycles |
| Connection capacity: | RIGID CONDUCTOR 16MM² |
| Connection terminal | Screw terminal Pillar terminal with clamp |
| Fastening torque | 2.0 Nm |
| Installation | On symmetrical DIN rail 35mm Panel mounting |
