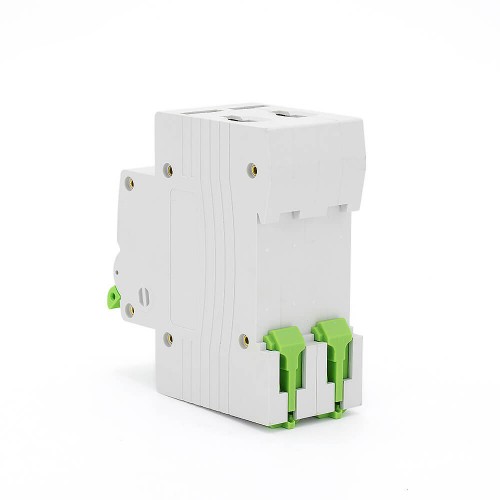

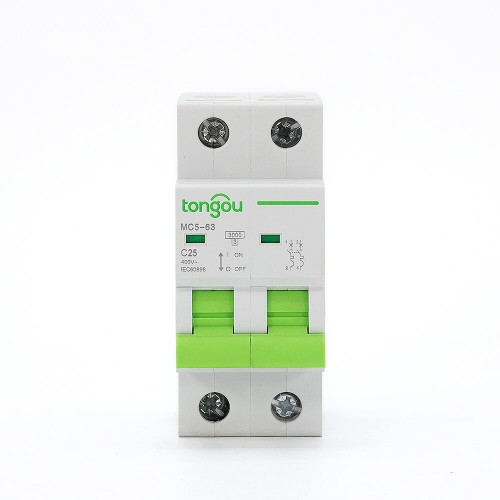

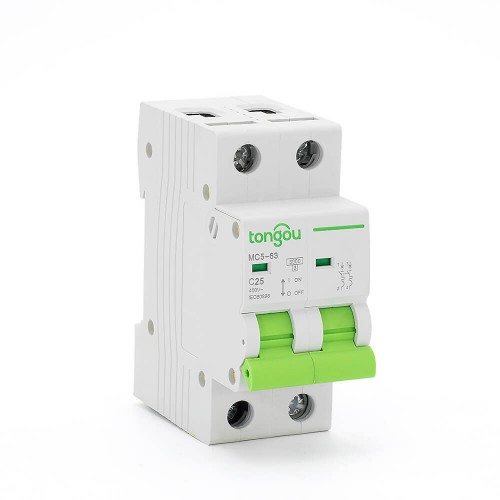

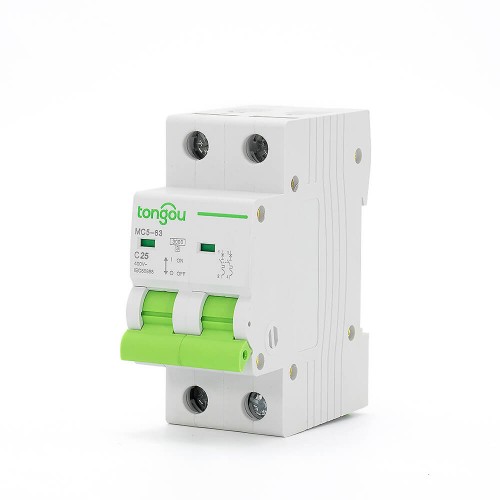

TOMC5-63 2P Breaker 25A MCB
2P Breaker is used to control, master, and regulate the electrical power systems, these devices are equipped for de-energizing the circuits allowing them to work easily and prevent faults.
They are intelligent, automatic, and reliable are the three words that define the circuit breaker range from Anchor by Panasonic.
Specialty range available for residential, commercial, and hospitality use.
2P Breaker Special Tips
1. 2P breaker MCB is for non-professional operation by those untrained, and no maintenance is required.
2. B, C, D tripping curve.
3. Particular devices such as surge protective devices, surge arresters, etc are recommended to install at the upstream line to MCB as a precaution against potential surge voltage and current occurring at its power input side.
4. Choose a suitable trip curve and install it correctly. When a fault occurs, the MCB will trip and close its protected circuit to provide electric shock protection.
5. Satisfying conditions and applications as mentioned above, MCB with “ON-OFF” indicating device is considered suitable for isolation function.
| Model Name | TOMC5-63/2/C25 |
| Pole No: | 2 |
| Rated voltage: | AC 110V 220V |
| Rated current(A): | 25 |
| Tripping curve: | C |
| Rated short-circuit capacity(lcn): | 3kA |
| Rated frequency: | 50/60Hz |
| Energy limiting class: | 3 |
| Rated impulse withstand voltage: | 6.2kV |
| Electro-mechanical endurance: | ≥ 6000 |
| Connection terminal: | Screw terminal / Pillar terminal with calmp |
| Connection capacity: | Rigid conductor up to 25mm² |
| Fastening torque: | 2.0Nm |
| Installation: | On symmetrical DIN rail 35mm / Panel mounting |
| Standards | IEC 61009-1, EC 61008-1, AS/NZS 61008-1 |
| IP degree of protection | IP40 for modular enclosure conforming to IEC 60529 |
| IP20 conforming to IEC 60529 | |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | -5°C to +60°C |
| Ambient air temperature for storage | -40°C to +85°C |
| Type | Width 9 mm modules | ||||
| 2P | Rating (In) | B Curve | C Curve | D Curve |
4 |
 | 1A | TOMC5-63/2/B1 | TOMC5-63/2/C1 | TOMC5-63/2/D1 | |
| 3A | TOMC5-63/2/B3 | TOMC5-63/2/C3 | TOMC5-63/2/D3 | ||
| 5A | TOMC5-63/2/B5 | TOMC5-63/2/C5 | TOMC5-63/2/D5 | ||
| 6A | TOMC5-63/2/B6 | TOMC5-63/2/C6 | TOMC5-63/2/D6 | ||
| 10A | TOMC5-63/2/B10 | TOMC5-63/2/C10 | TOMC5-63/2/D10 | ||
| 16A | TOMC5-63/2/B16 | TOMC5-63/2/C16 | TOMC5-63/2/D16 | ||
| 20A | TOMC5-63/2/B20 | TOMC5-63/2/C20 | TOMC5-63/2/D20 | ||
| 25A | TOMC5-63/2/B25 | TOMC5-63/2/C25 | TOMC5-63/2/D25 | ||
| 32A | TOMC5-63/2/B32 | TOMC5-63/2/C32 | TOMC5-63/2/D32 | ||
| 40A | TOMC5-63/2/B40 | TOMC5-63/2/C40 | TOMC5-63/2/D40 | ||
| 50A | TOMC5-63/2/B50 | TOMC5-63/2/C50 | TOMC5-63/2/D50 | ||
| 63A | TOMC5-63/2/B63 | TOMC5-63/2/C63 | TOMC5-63/2/D63 | ||
