Description

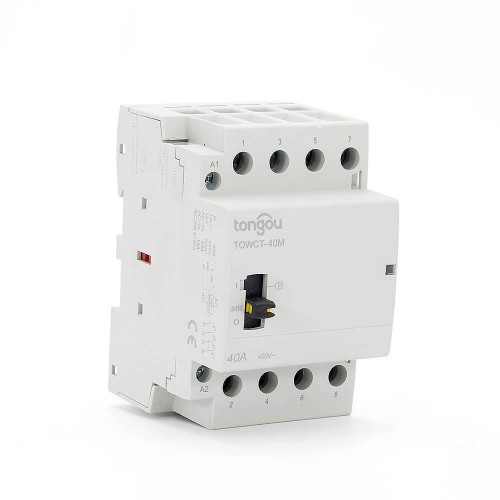

Din Rail Household Modular Contactor TOWCTH-40/4
TOWCTH series household AC Modular contactor is suitable for use in the circuits up to the rated voltage 400V AC 50/60Hz rated current up to 63A, for making, frequently starting, and machine interlocking devices.
It becomes the delay the contactor, mechanical interlocking contactor star-delta starter, with the thermal relay, it is combined into the electromagnetic starter.
The contactor is produced according to IEC61095, EN61095, and GB17885.
The scope of TOWCTH contactor is large enough to meet the vast majority of applications. can be extended to auxiliary control, protection, and indication functions.
TOWCTH Modular Contactor can be used to remote control applications in alternative networks:
-Lighting, heating, ventilation, roller shutters, public hot water
-Mechanical ventilation systems, etc
-Load-shedding of non-priority circuits
| Type | Width 9 mm modules | ||||
| 4P | Rating (In) | Control Voltage (V AC)(50/60Hz) | |||
| AC 7a AC 6b | |||||
|
40A 15A | 12, 24, 48, 220…240
| 4NO | TOWCT-44040 |
6 |
12, 24, 48, 220…240
| 2NO+2NC | TOWCT-44022 | |||
12, 24, 48, 220…240
| 4NC | TOWCT-44004 | |||
12, 24, 48, 220…240
| 3NO+1NC | TOWCT-44031 |
