General

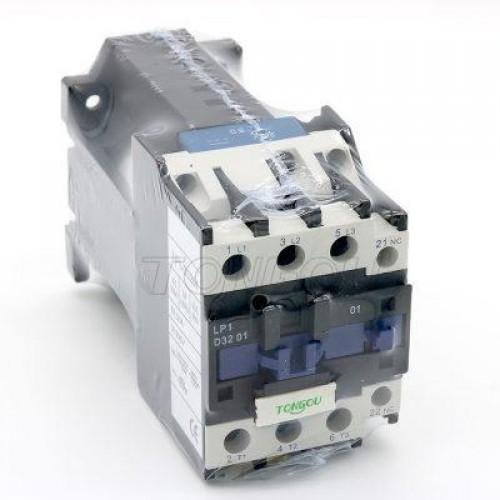

TOC2-D-32D DC Contactor
DC contactor is suitable for use in the circuits up to rated voltage 660V DC 50Hz or 60Hz, and in rated current 9-95A in DC-3/380V load circuits.
A DC motor used for remote control circuits to be turned on, off and frequently started.
It can also be used in combination with auxiliary contact groups, air delays, thermal relays and other devices.
Technical Data
| Type | TOC2-09D | TOC2-12D | TOC2-18D | TOC2-25D | TOC2-32D | ||
| Rated working | 380v | AC3 | 9 | 12 | 18 | 25 | 32 |
| AC4 | 3.5 | 5 | 7.7 | 8.5 | 12 | ||
| current(A) | 660v | AC3 | 6.6 | 8.9 | 12 | 18 | 21 |
| AC4 | 1.5 | 2 | 3.8 | 4.4 | 7.5 | ||
| Rated heat current(A) | 25 | 25 | 32 | 40 | 50 | ||
| Controllable | 220/240V | 2.2 | 3 | 4 | 5.5 | 7.5 | |
| 380/400V | 4 | 5.5 | 7.5 | 11 | 15 | ||
| power(kW) | 415V | 4 | 5.5 | 9 | 11 | 15 | |
| 500V | 5.5 | 7.5 | 10 | 15 | 18.5 | ||
| 600/690V | 5.5 | 7.5 | 10 | 15 | 18.5 | ||
| Weight(Kg) | DC contactor | 0.64 | 0.34 | 0.65 | 0.65 | 0.95 | |
| Measure(Mm3) DC contactor | 76x115x47 | 76x115x47 | 76x120x47 | 88x130x59 | 86x135x59 | ||
| Pole | 3,4 | 3,4 | 3 | 3,4 | 3 | ||
| Rated working voltage(V) | 380, 660 | 380, 660 | 380, 660 | 380, 660 | 380, 660 | ||
| Rated insulation voltage(V) | 660 | 660 | 660 | 660 | 660 | ||
| Mechanical life x10⁴ | 1000 | 1000 | 1000 | 1000 | 800 | ||
| Electrical life | AC x10⁴ | 100 | 100 | 100 | 100 | 80 | |
| AC4 x10⁴ | 20 | 20 | 20 | 20 | 20 | ||
| Operating | Electrical | AC3 x10⁴ | 1200 | 1200 | 1200 | 1200 | 600 |
| life | AC4 x10⁴ | 300 | 300 | 300 | 300 | 300 | |
| frequency | Mechanical life x10⁴ | 3600 | 3600 | 3600 | 3600 | 3600 | |
| Rated controlled voltage(V) | 24-660 | 24-660 | 24-660 | 24-660 | 24-660 | ||
| Working | Close | DC% | 0.85~1.1Us 0.85~1.1Us 0.85~1.1Us 0.85~1.1Us 0.85~1.1Us | ||||
| Voltage | Open | DC % 0.10~0.75Us 0.10~0.75Us 0.10~0.75Us 0.10~0.75Us 0.10~0.75Us | |||||
| Type | TOC2-40D | TOC2-50D | TOC2-65D | TOC2-80D | TOC2-95D | |||
| Rated working | 380V | AC3 | 40 | 50 | 65 | 80 | 95 | |
| AC4 | 18.5 | 24 | 28 | 37 | 44 | |||
| current(A) | 660V | AC3 | 34 | 39 | 42 | 49 | 55 | |
| AC4 | 9 | 12 | 14 | 17.3 | 21.3 | |||
| Rated heat current(A) | 60 | 80 | 80 | 125 | 125 | |||
| Controllable | 220/240V | 11 | 15 | 18.5 | 22 | 25 | ||
| 380/400V | 18.5 | 22 | 30 | 37 | 45 | |||
| power(kW) | 415V | 22 | 30 | 37 | 45 | 45 | ||
| 500V | 22 | 30 | 37 | 55 | 55 | |||
| 600/690V | 30 | 33 | 37 | 45 | 55 | |||
| Weight(Kg) | DC contactor | 2.185 | 2.185 | 2.185 | 2.525 | 2.525 | ||
| Measure(Mm3) DC contactor | 128x175x81 | 128x175x87 | 128x183x87 | 128x175x87 | 128x183x87 | |||
| Pole | 3, 4 | 3, 4 | 3, 4 | 3, 4 | 3, 4 | |||
| Rated working voltage(V) | 380, 660 | 380, 660 | 380, 660 | 380, 660 | 380, 660 | |||
| Rated insulation voltage(V) | 660 | 660 | 660 | 660 | 660 | |||
| Mechanical life x10⁴ | 800 | 800 | 800 | 600 | 600 | |||
| Electrical life | AC x10⁴ | 80 | 80 | 80 | 60 | 60 | ||
| AC4 x10⁴ | 15 | 15 | 15 | 10 | 10 | |||
| Operating | Electri- | AC3 x10⁴ | 600 | 600 | 600 | 600 | 600 | |
| cal life | AC4 x104 | 300 | 300 | 300 | 300 | 300 | ||
| frequency | Mechanical life x10 3600 | 3600 | 3600 | 3600 | 3600 | |||
| Rated controlled voltage(V) | 24-660 | 24-660 | 24-660 | 24-660 | 24-660 | |||
| Working | Close | DC % | 0.85~1.1Us | 0.85~1.1Us | 0.85~1.1Us | 0.85~1.1Us | 0.85~1.1Us | |
| voltage | Open | DC % 0.10~0.75Us | 0.10~0.75Us 0.10~0.75Us 0.10~0.75Us | 0.10~0.75Us | ||||
