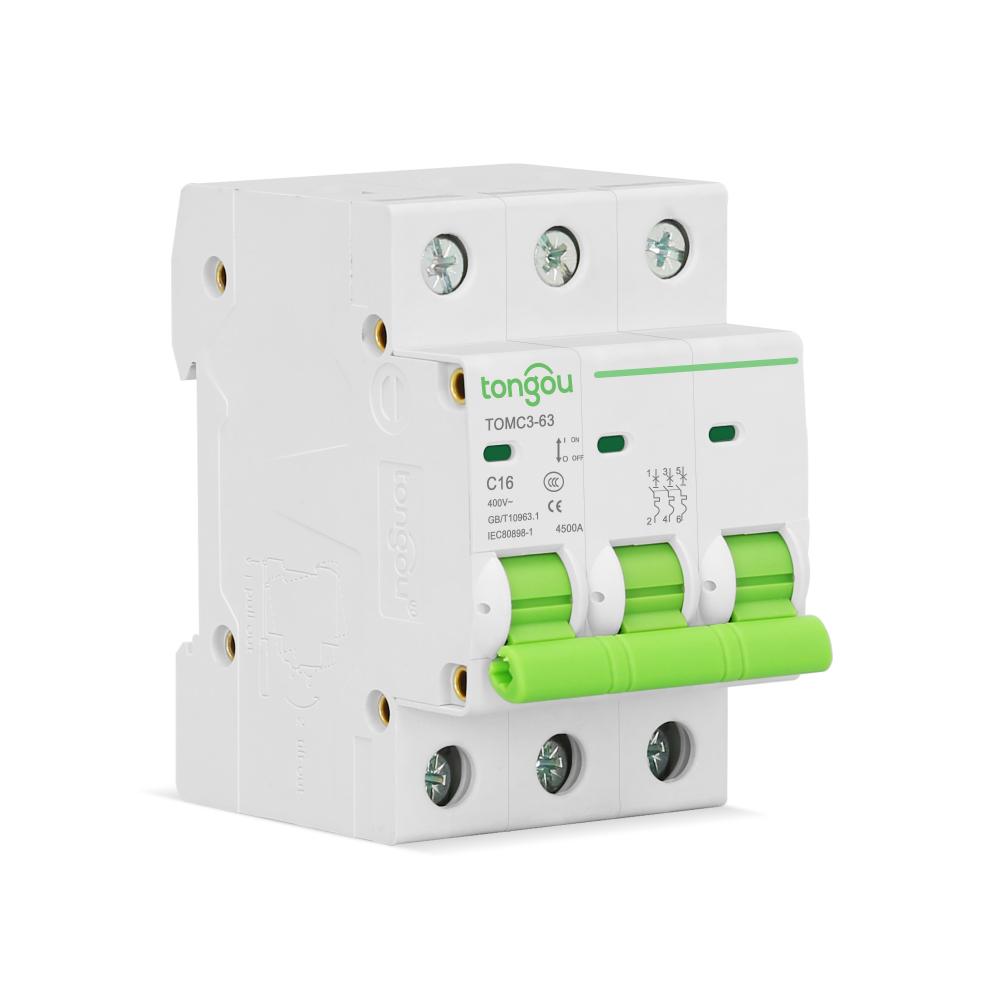

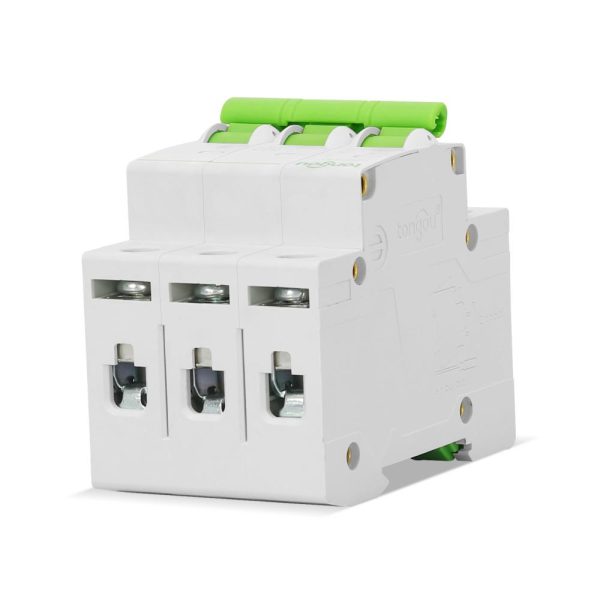

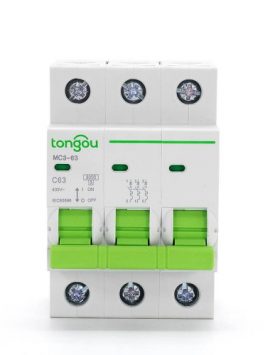

3P 16A Circuit Breaker MCB
AC 3P 16A Circuit Breaker MCB TOMC3-63 is mainly used for protecting against overload and the short circuit under 50/60Hz, rated voltage 110/220V and rated current from 1A to 63A.
3P 16A Circuit Breaker MCB has a neoteric structure, fast-breaking, prompt arc extinguishing, and short tripping features.
3P 16A Circuit Breaker MCB Special Tips
1. MCB is for non-professional operation by untrained personnel without maintenance.
2. B, C, D trip curve.
3. Choose a suitable trip curve and install it correctly. When a fault occurs, the MCB will trip and cut off its protected circuit, thereby providing protection against electric shock.
4. It is recommended to install special devices on the upstream line of the MCB, such as surge protection devices, lightning arresters, etc., to prevent potential surge voltage and current from appearing on the power input side.
5. In order to meet the above conditions and applications, MCB with an “ON-OFF” indicates the device is considered suitable for isolation function.
| Model Name | TOMC3-63/3/C16 |
| Pole No: | 3 |
| Rated voltage: | AC 110V 220V 400V |
| Rated current(A): | 16 |
| Tripping curve: | C |
| Rated short-circuit capacity(lcn): | 3kA |
| Rated frequency: | 50/60Hz |
| Energy limiting class: | 3 |
| Rated impulse withstand voltage: | 6.2kV |
| Electro-mechanical endurance: | ≥ 6000 |
| Connection terminal: | Screw terminal / Pillar terminal with calmp |
| Connection capacity: | Rigid conductor up to 25mm² |
| Fastening torque: | 2.0Nm |
| Installation: | On symmetrical DIN rail 35mm / Panel mounting |
| Standards | IEC 60947-2, IEC 60898-1, EN60898-1 , AS/NES 60898.1 |
| IP degree of protection | IP40 for modular enclosure conforming to IEC 60529 |
| IP20 conforming to IEC 60529 | |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | -35°C to +70°C |
| Ambient air temperature for storage | -40°C to +85°C |
| Type | Width 9 mm modules | ||||
| 3P | Rating (In) | B Curve | C Curve | D Curve |
6 |
| 1A | TOMC3-63/3/B1 | TOMC3-63/3/C1 | TOMC3-63/3/D1 | |
| 3A | TOMC3-63/3/B3 | TOMC3-63/3/C3 | TOMC3-63/3/D3 | ||
| 5A | TOMC3-63/3/B5 | TOMC3-63/3/C5 | TOMC3-63/3/D5 | ||
| 6A | TOMC3-63/3/B6 | TOMC3-63/3/C6 | TOMC3-63/3/D6 | ||
| 10A | TOMC3-63/3/B10 | TOMC3-63/3/C10 | TOMC3-63/3/D10 | ||
| 16A | TOMC3-63/3/B16 | TOMC3-63/3/C16 | TOMC3-63/3/D16 | ||
| 20A | TOMC3-63/3/B20 | TOMC3-63/3/C20 | TOMC3-63/3/D20 | ||
| 25A | TOMC3-63/3/B25 | TOMC3-63/3/C25 | TOMC3-63/3/D25 | ||
| 32A | TOMC3-63/3/B32 | TOMC3-63/3/C32 | TOMC3-63/3/D32 | ||
| 40A | TOMC3-63/3/B40 | TOMC3-63/3/C40 | TOMC3-63/3/D40 | ||
| 50A | TOMC3-63/3/B50 | TOMC3-63/3/C50 | TOMC3-63/3/D50 | ||
| 63A | TOMC3-63/3/B63 | TOMC3-63/3/C63 | TOMC3-63/3/D63 | ||
