Description
General
Technical Data
Inquiry
General
1. Mini Circuit Breaker is for non-professional operation by those untrained, and no maintenance is required
2. Satisfying conditions and applications as mentioned above,MCB with “ON-OFF” indicating device is considered suitable for isolation function.
3. Particular devices such as surge protective devices,surge arrester etc are recommended to install at upstream line to MCB as precaution against potential surge voltage and current occurring at its power input side.
4. Appropriate tripping curve being chosen and properly installed, MCB trips and switches off its protected circuit in case of fault, and thus provides protection against electric shock.
Technical Data

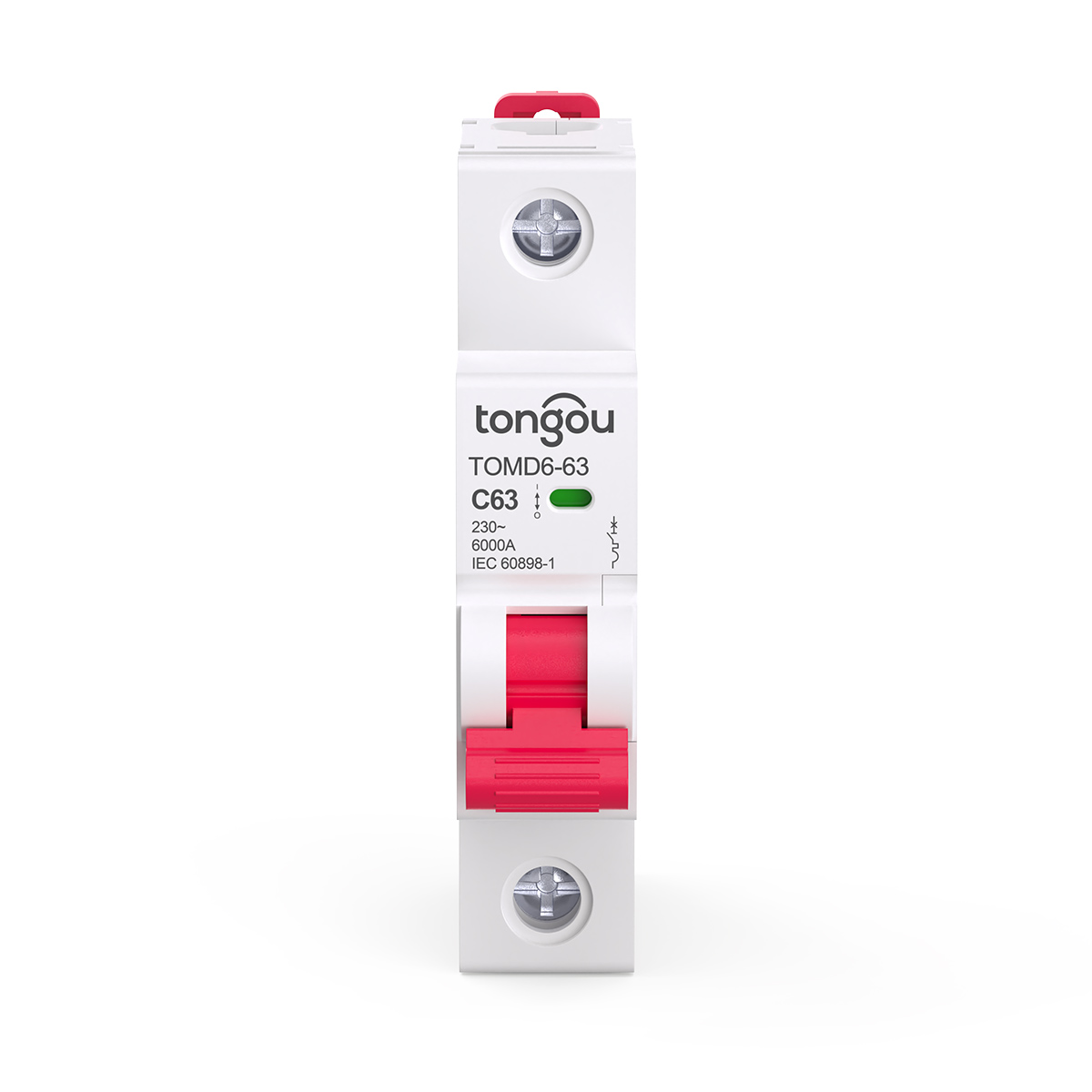

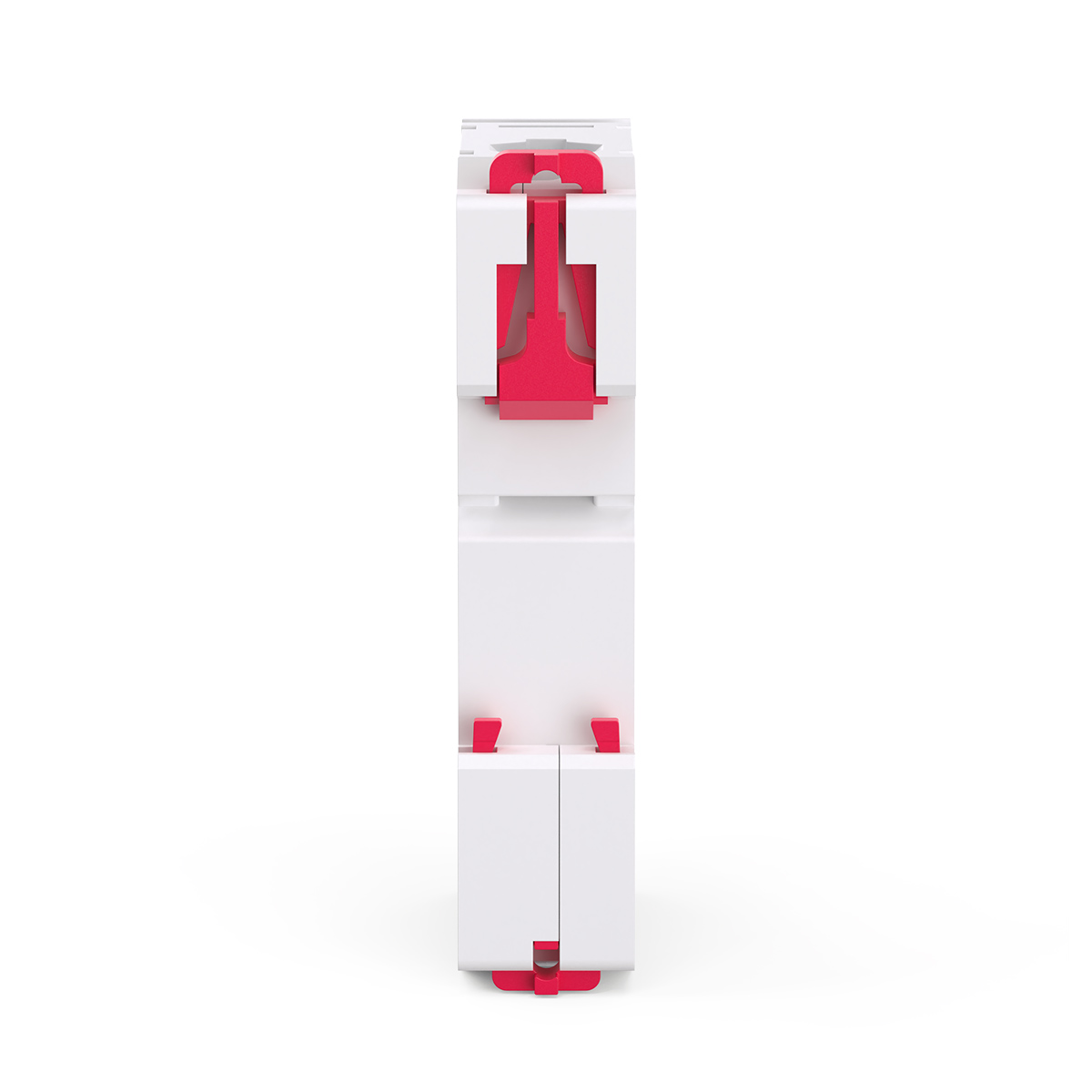

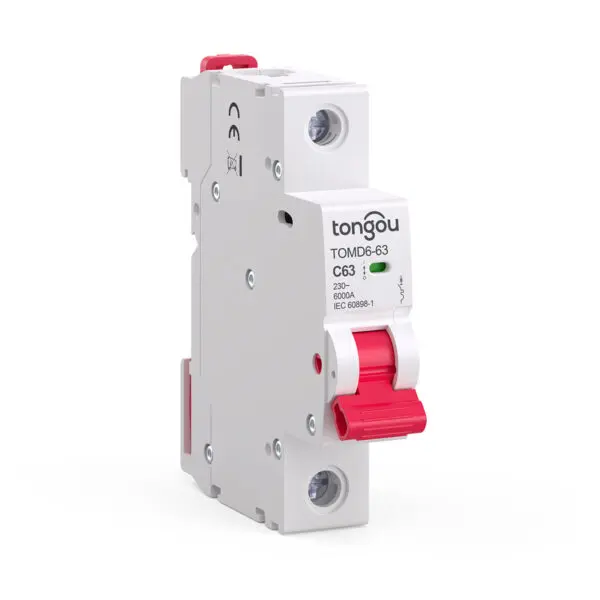

| Product or component type | Mini Circuit Breaker |
| Poles Number | 1P |
| Rated Current (In) | 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
| Operating voltage Range | AC 230V |
| Breaking Capacity | 6kA |
| Rated Frequency | 50Hz/60Hz |
| Type | Mini |
| BCD Curve | C Curve |
| Raw-material | The high quality imported material |
| Casing Material | PA66 or higher |
| Supply Capacity | Examine the specific plant |
| Printing | Standard or Customized |
