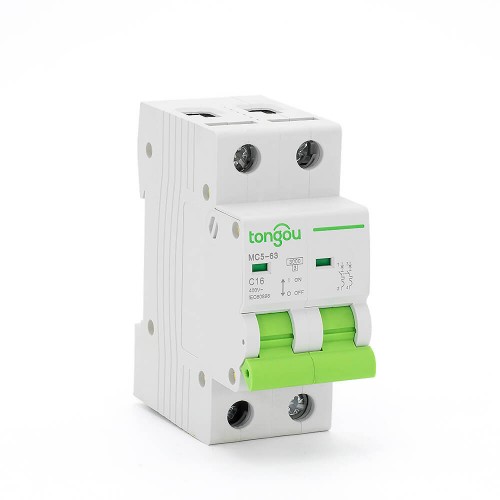

2P Breaker Three Phase MCB TOMC5-63
1. Three-phase MCB is for non-professional operation by those untrained, and no maintenance is required.
2. Particular devices such as surge protective devices, surge arresters, etc are recommended to install at the upstream line to MCB as precaution against potential surge voltage and current occurring at its power input side.
3. Appropriate tripping curve being chosen and properly installed, MCB trips and switches off its protected circuit in case of fault, and thus provides protection against electric shock.
4. Satisfying conditions and applications as mentioned above, Three-phase MCB with an “ON-OFF” indicating device is considered suitable for isolation function.
5. B, C, D tripping curve(see graphics 1):
| Model Name | TOMC5-63/2/C16 |
| Pole No: | 2 |
| Rated voltage: | AC 110V 220V |
| Rated current(A): | 16 |
| Tripping curve: | C |
| Rated short-circuit capacity(lcn): | 3kA |
| Rated frequency: | 50/60Hz |
| Energy limiting class: | 3 |
| Rated impulse withstand voltage: | 6.2kV |
| Electro-mechanical endurance: | ≥ 6000 |
| Connection terminal: | Screw terminal / Pillar terminal with calmp |
| Connection capacity: | Rigid conductor up to 25mm² |
| Fastening torque: | 2.0Nm |
| Installation: | On symmetrical DIN rail 35mm / Panel mounting |
| Standards | IEC 61009-1, EC 61008-1, AS/NZS 61008-1 |
| IP degree of protection | IP40 for modular enclosure conforming to IEC 60529 |
| IP20 conforming to IEC 60529 | |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | -5°C to +60°C |
| Ambient air temperature for storage | -40°C to +85°C |
| Type | Width 9 mm modules | ||||
| 2P | Rating (In) | B Curve | C Curve | D Curve | 4 |
 |
1A | TOMC5-63/2/B1 | TOMC5-63/2/C1 | TOMC5-63/2/D1 | |
| 3A | TOMC5-63/2/B3 | TOMC5-63/2/C3 | TOMC5-63/2/D3 | ||
| 5A | TOMC5-63/2/B5 | TOMC5-63/2/C5 | TOMC5-63/2/D5 | ||
| 6A | TOMC5-63/2/B6 | TOMC5-63/2/C6 | TOMC5-63/2/D6 | ||
| 10A | TOMC5-63/2/B10 | TOMC5-63/2/C10 | TOMC5-63/2/D10 | ||
| 16A | TOMC5-63/2/B16 | TOMC5-63/2/C16 | TOMC5-63/2/D16 | ||
| 20A | TOMC5-63/2/B20 | TOMC5-63/2/C20 | TOMC5-63/2/D20 | ||
| 25A | TOMC5-63/2/B25 | TOMC5-63/2/C25 | TOMC5-63/2/D25 | ||
| 32A | TOMC5-63/2/B32 | TOMC5-63/2/C32 | TOMC5-63/2/D32 | ||
| 40A | TOMC5-63/2/B40 | TOMC5-63/2/C40 | TOMC5-63/2/D40 | ||
| 50A | TOMC5-63/2/B50 | TOMC5-63/2/C50 | TOMC5-63/2/D50 | ||
| 63A | TOMC5-63/2/B63 | TOMC5-63/2/C63 | TOMC5-63/2/D63 |
2P Breaker Three Phase MCB TOMC5-63
1. Three-phase MCB is for non-professional operation by those untrained, and no maintenance is required.
2. Particular devices such as surge protective devices, surge arresters, etc are recommended to install at the upstream line to MCB as precaution against potential surge voltage and current occurring at its power input side.
3. Appropriate tripping curve being chosen and properly installed, MCB trips and switches off its protected circuit in case of fault, and thus provides protection against electric shock.
4. Satisfying conditions and applications as mentioned above, Three-phase MCB with an “ON-OFF” indicating device is considered suitable for isolation function.
5. B, C, D tripping curve(see graphics 1):
| Model Name | TOMC5-63/2/C16 |
| Pole No: | 2 |
| Rated voltage: | AC 110V 220V |
| Rated current(A): | 16 |
| Tripping curve: | C |
| Rated short-circuit capacity(lcn): | 3kA |
| Rated frequency: | 50/60Hz |
| Energy limiting class: | 3 |
| Rated impulse withstand voltage: | 6.2kV |
| Electro-mechanical endurance: | ≥ 6000 |
| Connection terminal: | Screw terminal / Pillar terminal with calmp |
| Connection capacity: | Rigid conductor up to 25mm² |
| Fastening torque: | 2.0Nm |
| Installation: | On symmetrical DIN rail 35mm / Panel mounting |
| Standards | IEC 61009-1, EC 61008-1, AS/NZS 61008-1 |
| IP degree of protection | IP40 for modular enclosure conforming to IEC 60529 |
| IP20 conforming to IEC 60529 | |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | -5°C to +60°C |
| Ambient air temperature for storage | -40°C to +85°C |
| Type | Width 9 mm modules | ||||
| 2P | Rating (In) | B Curve | C Curve | D Curve |
4 |
 | 1A | TOMC5-63/2/B1 | TOMC5-63/2/C1 | TOMC5-63/2/D1 | |
| 3A | TOMC5-63/2/B3 | TOMC5-63/2/C3 | TOMC5-63/2/D3 | ||
| 5A | TOMC5-63/2/B5 | TOMC5-63/2/C5 | TOMC5-63/2/D5 | ||
| 6A | TOMC5-63/2/B6 | TOMC5-63/2/C6 | TOMC5-63/2/D6 | ||
| 10A | TOMC5-63/2/B10 | TOMC5-63/2/C10 | TOMC5-63/2/D10 | ||
| 16A | TOMC5-63/2/B16 | TOMC5-63/2/C16 | TOMC5-63/2/D16 | ||
| 20A | TOMC5-63/2/B20 | TOMC5-63/2/C20 | TOMC5-63/2/D20 | ||
| 25A | TOMC5-63/2/B25 | TOMC5-63/2/C25 | TOMC5-63/2/D25 | ||
| 32A | TOMC5-63/2/B32 | TOMC5-63/2/C32 | TOMC5-63/2/D32 | ||
| 40A | TOMC5-63/2/B40 | TOMC5-63/2/C40 | TOMC5-63/2/D40 | ||
| 50A | TOMC5-63/2/B50 | TOMC5-63/2/C50 | TOMC5-63/2/D50 | ||
| 63A | TOMC5-63/2/B63 | TOMC5-63/2/C63 | TOMC5-63/2/D63 | ||
