Description

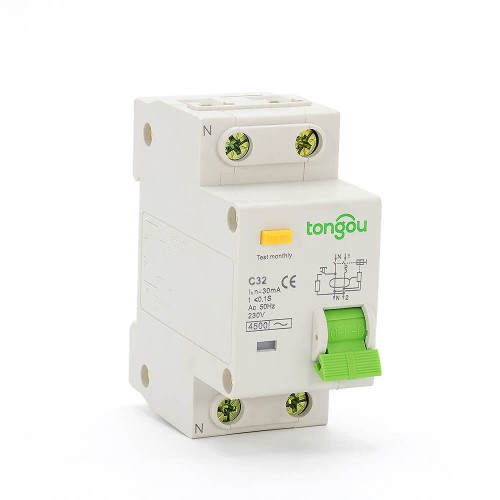

32 Amp RCBO breaker provides indirect protection to the operator’s body when exposed live parts should be connected to an appropriate ground electrode.
At the same time, RCBO breaker also provides overcurrent protection for circuits in homes, businesses and other similar devices. It has complete functions.
In addition, it can prevent the potential fire hazard caused by ground fault current when the overcurrent protection device fails.
32 Amp RCBO Breaker Special Tips
1. RCBO with rated sensitivity up to 30mA could be used as a supplementary protecting device in case another protecting device fails its protection against electric shock.
2. RCBO is specially designed for home installation and other similar applications, non-professional operation, and no maintenance.
3. RCBO cannot prevent electric shock caused by direct contact between two protected circuits or leakage current between the two circuits.
4. Particular devices such as surge protective devices, surge arresters, etc are recommended to install at the upstream line to RCBO as a precaution against potential surge voltage and current occurring at its power input side.
5. RCBO overcurrent protection value is fixed and is not subject to further adjustment.
6. In order to meet the above conditions and applications, RCCBs with “ON-OFF” indicating devices are considered suitable for isolation functions.
| Model Name | TOB10-63 |
| Model | Electronic type |
| Residual Current characteristic: | AC |
| Pole No: | 1P+N |
| Tripping Curve | C |
| Rated current（A） | 32 |
| Rated voltage | 240V AC |
| Rated frequency | 50/60Hz |
| Rated residual operating current |△(A): | 0.03 |
| Rated residual non operating current |△ no: | 0.5|△ n |
| Rated conditional short-circuit current inc: | 4.5kA |
| Rated conditional residual short-circuit current |△c: | 3kA |
| Tripping duration: | Instantaneous tripping ≤0.1s |
| Residual tripping current range: | 0.5||△n~|△n |
| Electro-mechanical endurance | ≥4000 cycles |
| Connection capacity: | RIGID CONDUCTOR 16MM² |
| Connection terminal | Screw terminal Pillar terminal with clamp |
| Fastening torque | 2.0 Nm |
| Installation | On symmetrical DIN rail 35mm Panel mounting |
