Description

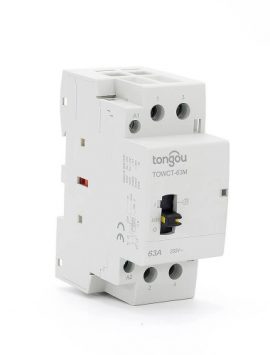

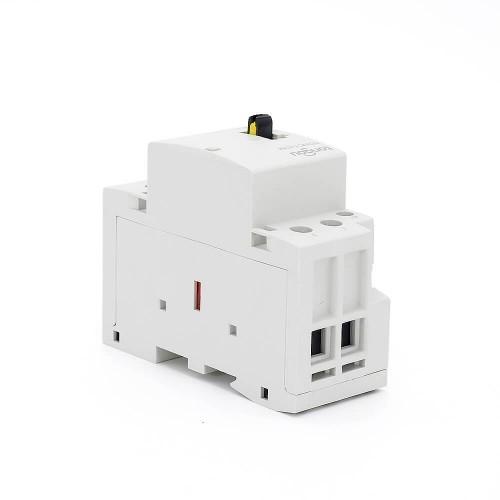

32 amp 2 Pole Contactor
32 Amp 2 pole contactor is suitable for use in circuits with rated voltage 400V AC 50/60Hz and rated current up to 63A.
It is used in manufacturing, frequent starting and machine interlocking devices.
It becomes a time-delay contactor, a mechanical interlock contactor, a star-delta starter, and a thermal relay to form an electromagnetic starter.
The household contactor is roduced according to IEC61095, EN61095, GB17885.
The range of TOWCTH contactors is large enough to satisfy most applications. Can be extended to auxiliary control, protection and indication functions.
TOWCTH Modular Contactor can be used to remote control applications in alternative networks:
-Lighting, heating, ventilation, rolling shutters, public hot water.
-Mechanical ventilation system, etc.
-Load shedding of non-priority circuits.
| Type | Width 9 mm modules | ||||
| 2P | Rating (In) | Control Voltage (V AC)(50/60Hz) | |||
| AC 7a AC 7b | |||||
|
32A 12A | 12, 24, 220…240
| 2NO | TOWCT-23220 |
4 |
12, 24, 220…240
| 1NO+1NC | TOWCT-23211 | |||
12, 24, 220…240
| 2NC | TOWCT-23202 |
