Description

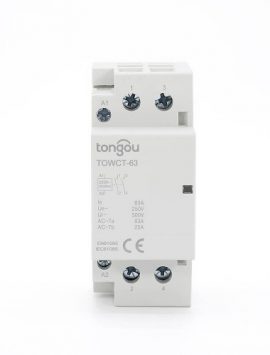

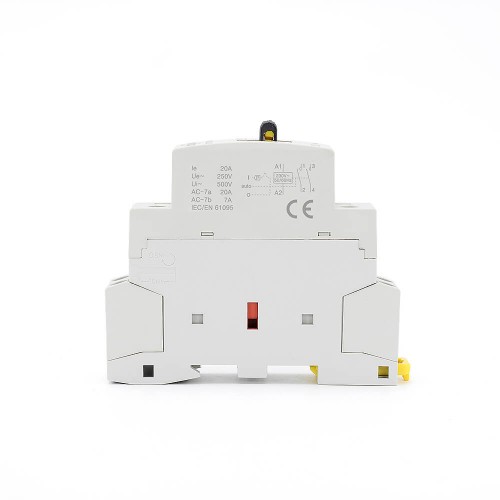

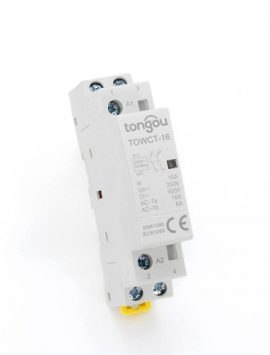

2 Pole Modular Contactor With Manual Control Switch
TOWCTH series household AC Modular contactor is suitable for using in the circuits up to the rated vltage 400V AC 50/60Hz rated current up to 63A.
For making ,frequently starting and machine interlocking device.
It becomes the delay the contactor,mechanical interlocking contactor star-delta starter,with the thermal relay , it is combined into the eletromagnetic starter.
The contactor is roduced according to IEC61095, EN61095, GB17885.
The scope of TOWCTH contactor is large enough to meet the vast majority of applications.It can be extended to auxiliart control, protection and indication functions.
TOWCTH Modular Contactor can be used to remote control applications in alternative networks:
-Lighting, heating, ventilation, roller shutters, public hot water
-Mechanical ventilation systems, etc
-Load-shedding of non-priority circuits
| Type | Width 9 mm modules | ||||
| 2P | Rating (In) | Control Voltage (V AC)(50/60Hz) | |||
| AC 7a AC 7b | |||||
|
20A 7A | 12, 24, 220…240
| 2NO | TOWCT-22020 |
2 |
12, 24, 220…240
| 1NO+1NC | TOWCT-22011 | |||
12, 24, 220…240
| 2NC | TOWCT-22002 |
