Description

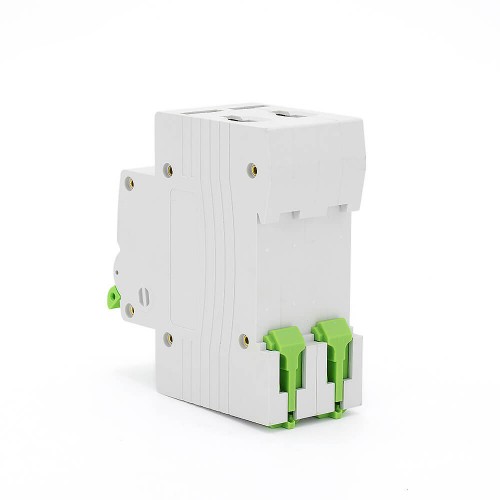

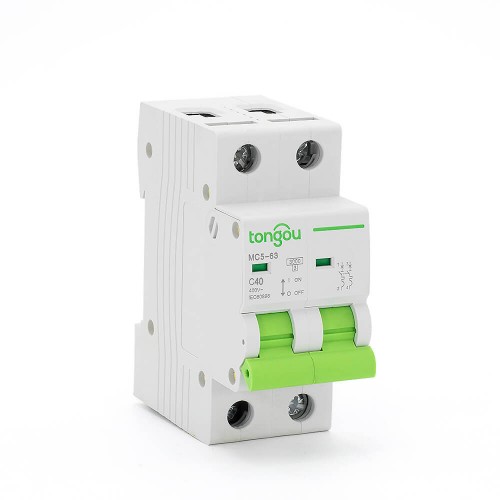

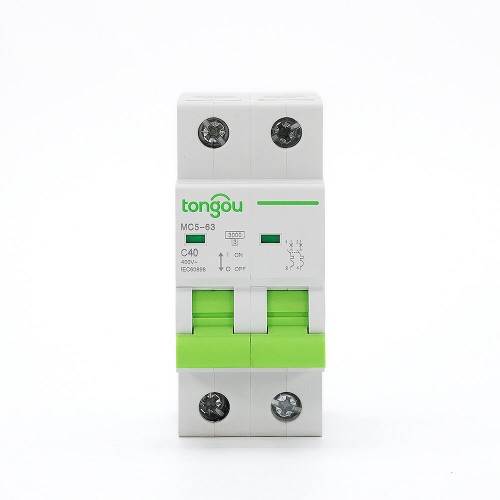

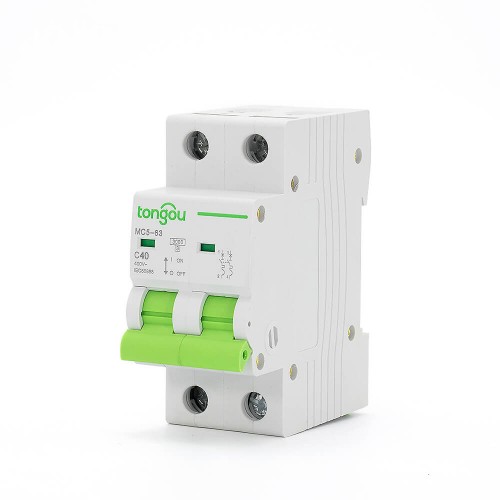

TOMC5-63 3KA 110V 220V Curve C 2P 40A Breaker MCB
40A Breaker is a great circuit breaker used to protect an electrical circuit from damage caused by excess current resulting from an overload or short circuit.
Fast closing to ensure reliable operation of the load and prolong the life of electrical circuit breakers. TOMC5-63 2P 40A breaker MCB is easy and reliable to use, which supports short circuit protection, overload protection.
It can be mounted conveniently on DIN rail, DIN rail is not included. TOMC5-63 2P 40A MCB is widely used for solar panels grid system, wind and solar hybrid system and many other DC system.
40A Breaker MCB Special Tips
1. MCB is for non-professional operation by those untrained, and no maintenance is required.
2. B,C,D tripping curve.
3. Appropriate tripping curve being chosen and properly installed, MCB trips and switches off its protected circuit in case of fault, and thus provides protection against electric shock.
4. Particular devices such as surge protective devices,surge arrester etc are recommended to install at upstream line to MCB as precaution against potential surge voltage and current occurring at its power input side.
5. Satisfying conditions and applications as mentioned above,MCB with “ON-OFF” indicating device is considered suitable for isolation function.
| Model Name | TOMC5-63/2/C40 |
| Pole No: | 2 |
| Rated voltage: | AC 110V 220V |
| Rated current(A): | 40 |
| Tripping curve: | C |
| Rated short-circuit capacity(lcn): | 3kA |
| Rated frequency: | 50/60Hz |
| Energy limiting class: | 3 |
| Rated impulse withstand voltage: | 6.2kV |
| Electro-mechanical endurance: | ≥ 6000 |
| Contact position indication | |
| Connection terminal: | Screw terminal / Pillar terminal with calmp |
| Connection capacity: | Rigid conductor up to 25mm² |
| Fastening torque: | 2.0Nm |
| Installation: | On symmetrical DIN rail 35mm / Panel mounting |
| Standards | IEC 61009-1, EC 61008-1, AS/NZS 61008-1 |
| IP degree of protection | IP40 for modular enclosure conforming to IEC 60529 |
| IP20 conforming to IEC 60529 | |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | -5°C to +60°C |
| Ambient air temperature for storage | -40°C to +85°C |
| Type | Width 9 mm modules | ||||
| 2P | Rating (In) | B Curve | C Curve | D Curve | 4 |
 | 1A | TOMC5-63/2/B1 | TOMC5-63/2/C1 | TOMC5-63/2/D1 | |
| 3A | TOMC5-63/2/B3 | TOMC5-63/2/C3 | TOMC5-63/2/D3 | ||
| 5A | TOMC5-63/2/B5 | TOMC5-63/2/C5 | TOMC5-63/2/D5 | ||
| 6A | TOMC5-63/2/B6 | TOMC5-63/2/C6 | TOMC5-63/2/D6 | ||
| 10A | TOMC5-63/2/B10 | TOMC5-63/2/C10 | TOMC5-63/2/D10 | ||
| 16A | TOMC5-63/2/B16 | TOMC5-63/2/C16 | TOMC5-63/2/D16 | ||
| 20A | TOMC5-63/2/B20 | TOMC5-63/2/C20 | TOMC5-63/2/D20 | ||
| 25A | TOMC5-63/2/B25 | TOMC5-63/2/C25 | TOMC5-63/2/D25 | ||
| 32A | TOMC5-63/2/B32 | TOMC5-63/2/C32 | TOMC5-63/2/D32 | ||
| 40A | TOMC5-63/2/B40 | TOMC5-63/2/C40 | TOMC5-63/2/D40 | ||
| 50A | TOMC5-63/2/B50 | TOMC5-63/2/C50 | TOMC5-63/2/D50 | ||
| 63A | TOMC5-63/2/B63 | TOMC5-63/2/C63 | TOMC5-63/2/D63 | ||
