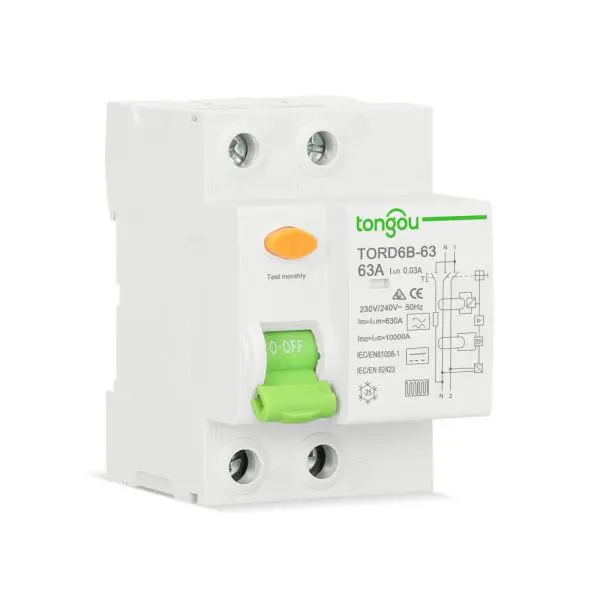

RCCB Type B Description
RCCB Type B，in addition to normal AC, can detect high frequency AC and pure DC earth leakage currents. It is suitable for the rated current of 16-63A
Reducing the risk of fire and/or electrocution through automatic disconnection of the electrical supply relies on the selection of the correct RCCB type B.
Applications requiring ‘B’ types include
- EV & PV installations
- Frequency converters
- UPS installations
- High-frequency power converters
- Building site power supply cabinets
Technical Data
| Main | |
| Product or component type | Residual current circuit breaker(RCCB) |
| Device application | Electrical vehicle charger, Solor energy system |
| Poles description | 2P |
| Network type | AC, Plusting DC, Smooth DC |
| Earth-leakage sensitivity | 30mA, 100mA, 300mA |
| Earth-leakage protection class | Type B |
| Complementary | |
| Device location in system | Group incomer |
| Network frequency | 50/60 Hz |
| Rated breaking and making capacity | Im 630A, Idm 630A |
| Rated conditional short-circuit current | 10kA |
| [Ui] rated insulation voltage | 250V |
| [Uimp] rated impulse withstand voltage | 6kA |
| Control type | Toggle |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Colour | White |
| Mechanical durability | 20000 cycles |
| Electrical durability | 15000 cycles |
| Tightening torque | 3.5N.m(top or bottom) |
| Environment | |
| Standards | EN 61008-1, IEC 61008-1, IEC/EN 62423 |
| IP degree of protection | IP40 for modular enclosure conforming to IEC 60529 IP20 conforming to IEC 60529 |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | -25°C to +60°C |
| Ambient air temperature for storage | -40°C to +85°C |
Product Selection
| Type Product | B | Width in 9 mm module | |||
| 2P | Sensitivity | 30mA | 300mA | 500mA | |
Rating
| 25A | TORD6B-63/4/25/003 | TORD6B-63/4/25/03 |
6 | |
| 40A | TORD6B-63/4/40/003 | TORD6B-63/4/40/03 | |||
| 63A | TORD6B-63/4/63/003 | TORD6B-63/4/63/03 | |||
| Voltage rating(Ue） | 2P | 230-240V | |||
| Operating frequency | 50Hz |
