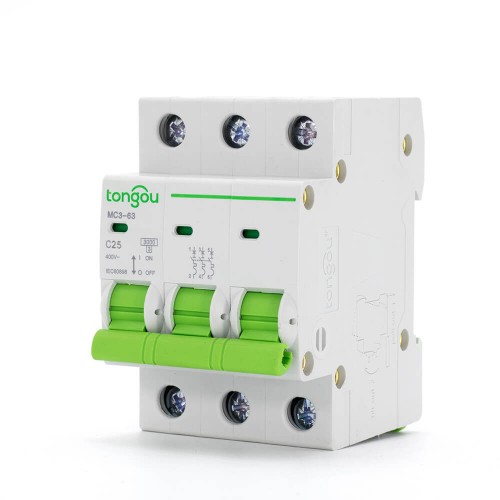

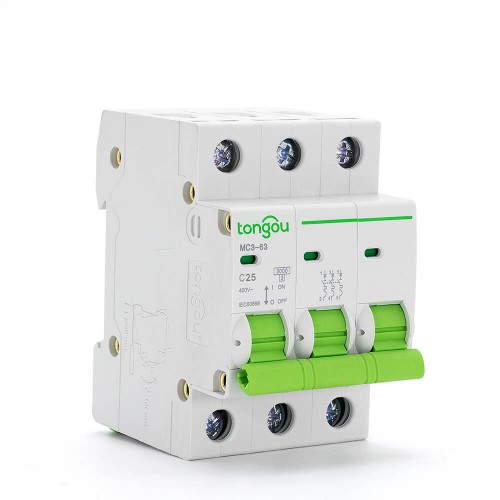

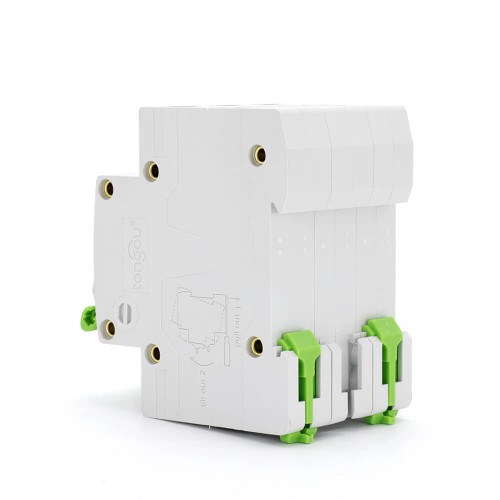

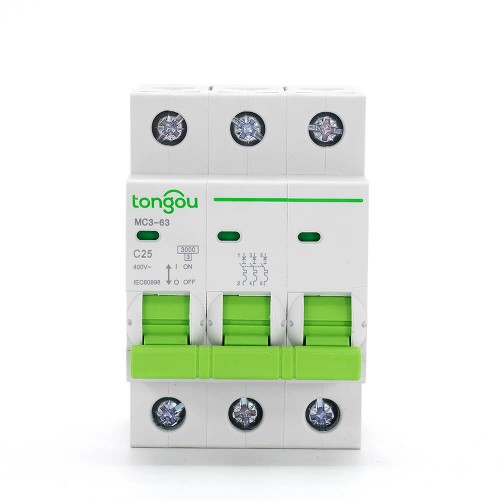

TOMC3-63 AC 3P 25A MCB
TOMC3-63 AC 3P 25A MCB has the most advanced design with an elegant appearance: curved cover and handles make operation comfortable, contact position indication window, design a transparent cover with a label.
The handle cannot stay in this position during manual operation.
It has a high short-circuit capability. The locking device prevents accidental or arbitrary removal of the connection terminals.
AC 3P 25A MCB Special Tips
1. Choose a suitable trip curve and install it correctly. MCB will trip and close its protected circuit when a fault occurs, thereby providing protection against electric shock.
2. Satisfying conditions and applications as mentioned above, MCB with “ON-OFF” indicating device is considered suitable for isolation function.
3. Particular devices such as surge protective devices, surge arresters, etc are recommended to install at the upstream line to MCB as a precaution against potential surge voltage and current occurring at its power input side.
4. MCB is for non-professional operation by those untrained, and no maintenance is required.
5. B, C, D tripping curve.
| Model Name | TOMC3-63/3/C25 |
| Pole No: | 3 |
| Rated voltage: | AC 110V 220V 400V |
| Rated current(A): | 25 |
| Tripping curve: | C |
| Rated short-circuit capacity(lcn): | 3kA |
| Rated frequency: | 50/60Hz |
| Energy limiting class: | 3 |
| Rated impulse withstand voltage: | 6.2kV |
| Electro-mechanical endurance: | ≥ 6000 |
| Connection terminal: | Screw terminal / Pillar terminal with calmp |
| Connection capacity: | Rigid conductor up to 25mm² |
| Fastening torque: | 2.0Nm |
| Installation: | On symmetrical DIN rail 35mm / Panel mounting |
| Standards | IEC 60947-2, IEC 60898-1, EN60898-1 , AS/NES 60898.1 |
| IP degree of protection | IP40 for modular enclosure conforming to IEC 60529 |
| IP20 conforming to IEC 60529 | |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | -35°C to +70°C |
| Ambient air temperature for storage | -40°C to +85°C |
| Type | Width 9 mm modules | ||||
| 3P | Rating (In) | B Curve | C Curve | D Curve |
6 |
| 1A | TOMC3-63/3/B1 | TOMC3-63/3/C1 | TOMC3-63/3/D1 | |
| 3A | TOMC3-63/3/B3 | TOMC3-63/3/C3 | TOMC3-63/3/D3 | ||
| 5A | TOMC3-63/3/B5 | TOMC3-63/3/C5 | TOMC3-63/3/D5 | ||
| 6A | TOMC3-63/3/B6 | TOMC3-63/3/C6 | TOMC3-63/3/D6 | ||
| 10A | TOMC3-63/3/B10 | TOMC3-63/3/C10 | TOMC3-63/3/D10 | ||
| 16A | TOMC3-63/3/B16 | TOMC3-63/3/C16 | TOMC3-63/3/D16 | ||
| 20A | TOMC3-63/3/B20 | TOMC3-63/3/C20 | TOMC3-63/3/D20 | ||
| 25A | TOMC3-63/3/B25 | TOMC3-63/3/C25 | TOMC3-63/3/D25 | ||
| 32A | TOMC3-63/3/B32 | TOMC3-63/3/C32 | TOMC3-63/3/D32 | ||
| 40A | TOMC3-63/3/B40 | TOMC3-63/3/C40 | TOMC3-63/3/D40 | ||
| 50A | TOMC3-63/3/B50 | TOMC3-63/3/C50 | TOMC3-63/3/D50 | ||
| 63A | TOMC3-63/3/B63 | TOMC3-63/3/C63 | TOMC3-63/3/D63 | ||
