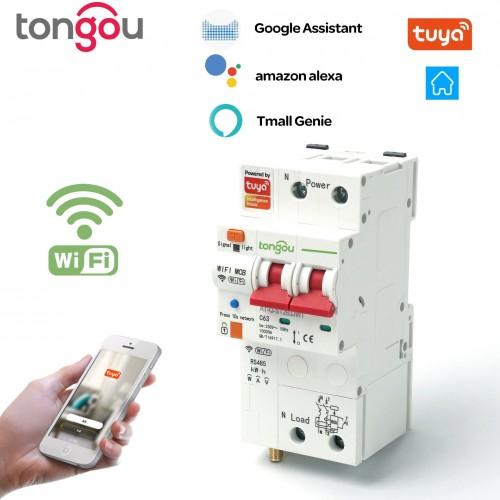

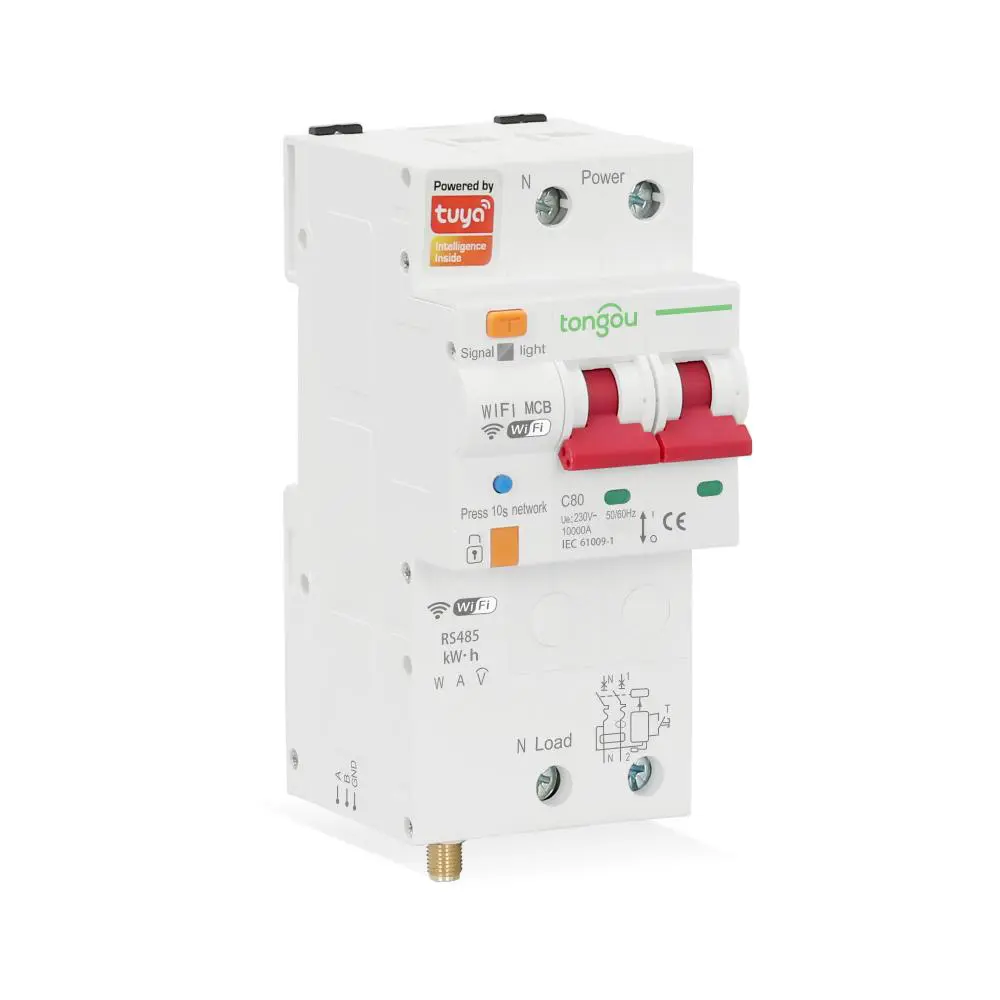

Wifi Smart Circuit Breaker With Energy Monitoring Function
1. On/Off switch
2. Time relay switch
3. Actual voltage, current, active power, electric energy kWh, application display
4. Overcurrent protection, overvoltage protection, maximum power protection, minimum power protection, and leakage protection
Wifi Smart Circuit Breaker With Energy Monitoring Feature
1. Remote control anytime, anywhere
2. Schedule/timer/cycle timer
3. Energy monitoring, set the unit price of electricity, calculate the electricity consumption of household equipment, and download the data to the table
4. Preset power/current/voltage thresholds through the app. Once the real-time power/current/voltage reaches the threshold, the connected appliances will be automatically turned off
5. Working voltage: AC100-280V
6. Mechanical life: 100000 times or more
7. Working temperature: -25℃~70℃
Technical Data
| Product or component type | Din Rail Smart WiFi switch |
| Poles description | 2P |
| Function | Timing, Countdown, Loop timing, Metering |
| Rated Current (In) | 1A, 2A, 3A, 4A, 5A, 6A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
| Operating voltage Range | AC 100V – 280V |
| Rated Frequency | 50Hz/60Hz |
| Control Type | Remote, Manual |
| Communication Protocol | WiFi 2.4Hz |
| Operating system support | Android, iOS, HarmonyOS |
| Operating Language | Chinese, English |
| App Language | Follow the operating system language |
| Voice Support | Amazon Alexa, Yandex Alice |
