General

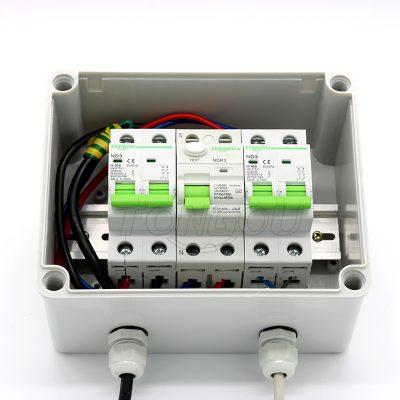

The consumer unit of waterproof IP67,it apply to the households,swimming pool,outdoors,and etc,which place with moist and dusty.
It can be replacing the metal box as the excellent corrosion resistance and insulativity
Technical Data
| Model Name | TOU1-63-IP67 |
| Water Proof Box | 2-18 Way IP 65-IP68 |
| RCCB ITEM | TORD4-63 2P |
| MCB ITEM | TOMC3-63 1P 2P |
| Rated current（A） | 6A,10A,16A,25A,32A,40A,63A |
| Rated voltage | 110V/230V |
| Rated frequency | 50/60Hz |
| Rated residual operating current |△(A): | 0.01,0.03,0.1 |
| Rated Short-circuit breaking capacity | 4.5kA |
