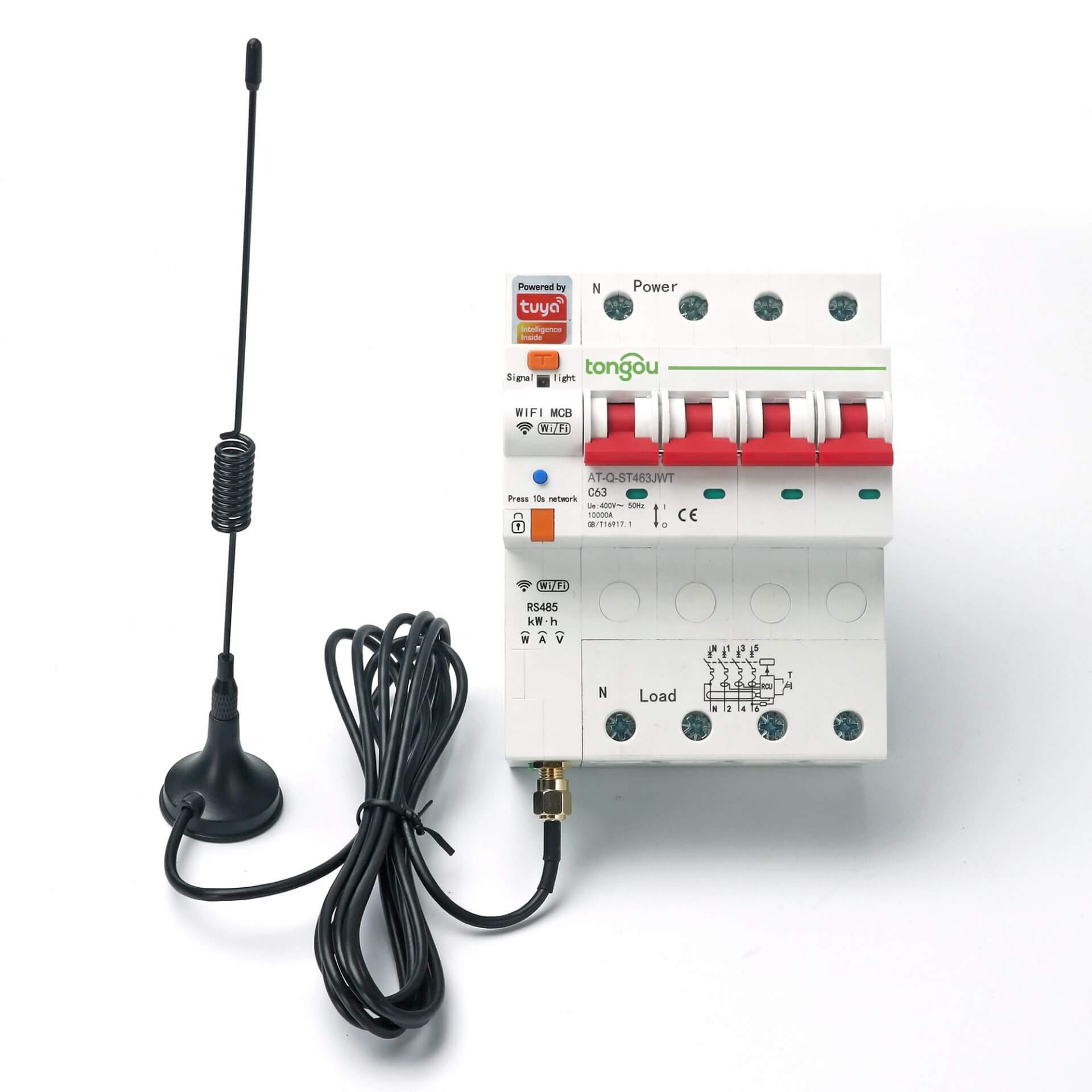

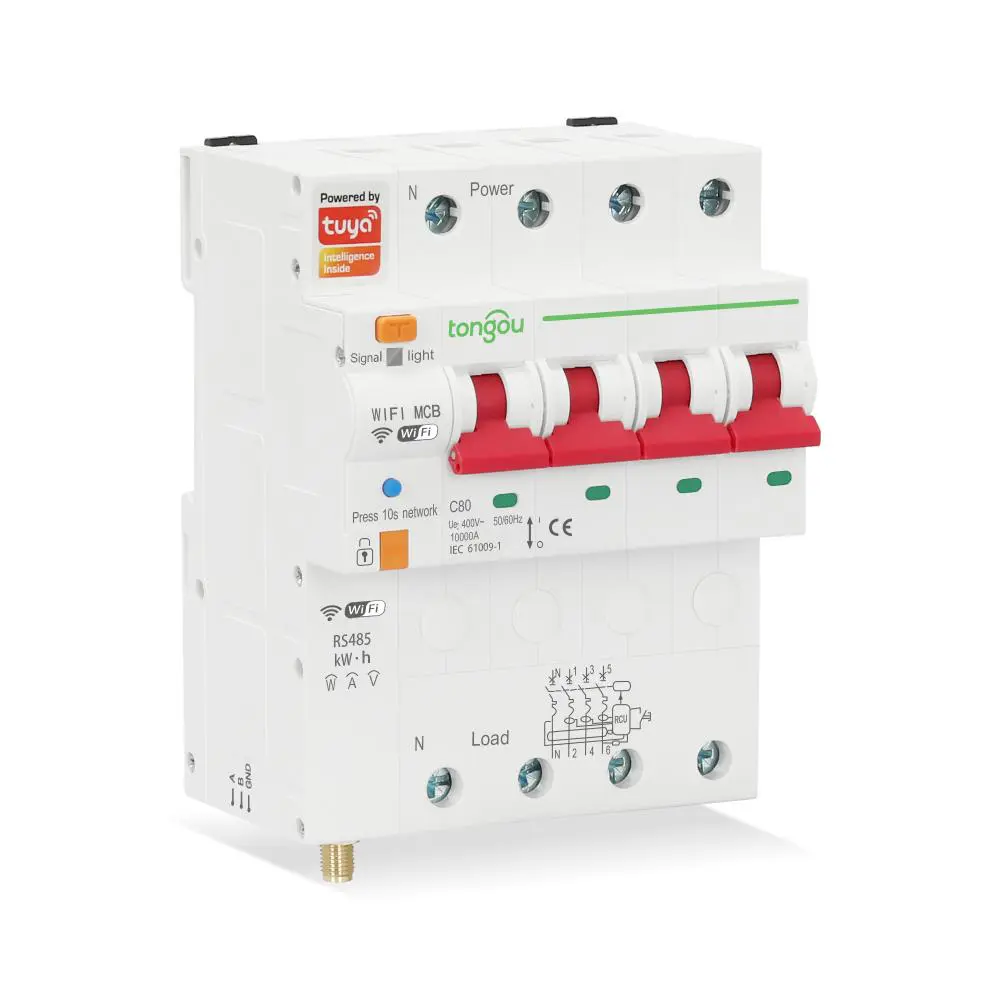

Smart control circuit breaker function:
1. Time relay switch
2. On/Off switch
3. Actual voltage, current, active power, electric energy kWh, application display
4. Overcurrent protection, overvoltage protection, maximum power protection, minimum power protection, and leakage protection
Smart control circuit breaker function
1. Schedule/timer/cycle timer
2. Remote control anytime, anywhere
3. Working temperature: -25℃~70℃
4. Working voltage: AC100-280V
5. Mechanical life: more than 100000 times
6. Energy monitoring, set the unit price of electricity, can calculate the electricity consumption of home equipment, and download the data to the table
7. Preset the power/current/voltage threshold through the app. Once the real-time power/current/voltage reaches the threshold, the connected appliances will be automatically turned off
Technical Data
| Product or component type | Din Rail Smart WiFi switch |
| Poles description | 4P |
| Function | Timing, Countdown, Loop timing, Metering |
| Rated Current (In) | 1A, 2A, 3A, 4A, 5A, 6A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
| Operating voltage Range | AC 100V – 280V |
| Rated Frequency | 50Hz/60Hz |
| Control Type | Remote, Manual |
| Communication Protocol | WiFi 2.4Hz |
| Operating system support | Android, iOS, HarmonyOS |
| Operating Language | Chinese, English |
| App Language | Follow the operating system language |
| Voice Support | Amazon Alexa, Yandex Alice |
