In the realm of electrical engineering, ensuring the safety and efficiency of power systems is paramount. Disconnect switches play a crucial role in this regard, allowing for the safe disconnection of electrical circuits from power sources. Among these, fused and non-fused disconnect switches are two key variations, each serving distinct purposes and applications. This article ventures into the comparison between fused and non-fused disconnect switches, starting with a basic understanding of disconnect switches, followed by a detailed analysis of their applications, differences, and the scenario-based need for each.
A disconnect switch, also known as an isolator switch, is designed to ensure a circuit is completely de-energized for service or maintenance. It provides a reliable means to separate electrical circuits from power sources, ensuring the safety of personnel and protecting equipment from potential electrical hazards. Disconnect switches come in various forms, with the primary classification being whether they are fused or non-fused.
These incorporate fuses within the disconnect switch assembly. The primary role of the fuse is to provide protection against short circuits and overloads. In the event of an electrical fault, the fuse will blow, interrupting the circuit and safeguarding the system and personnel. Fused disconnects are particularly valuable in scenarios where additional circuit protection is deemed necessary.
Non-fused variants lack an in-built fuse. They serve purely as disconnecting means without providing inherent protection against overcurrent. For systems where other protective devices are already in place, such as circuit breakers or where the circuit configuration does not demand additional overcurrent protection, non-fused disconnects offer a straightforward solution.

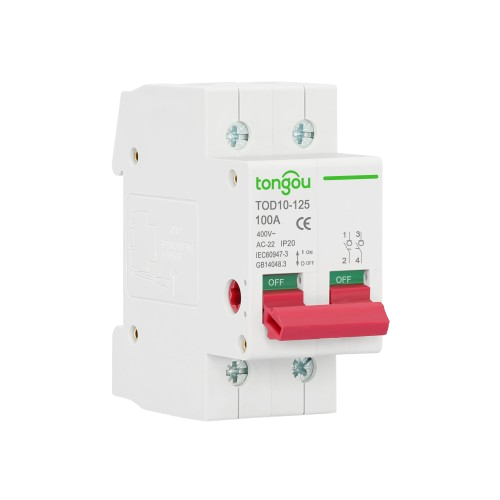

TOD10-100 Isolating switch Having superior dynamic-heating ability, it is mainly used as a main switch for both terminal assembly electric equipmentcase.
1. Heavy Industrial Applications:
Given their ability to provide additional protection, fused disconnect switches are commonly used in heavy manufacturing, processing plants, and other industrial settings where electrical loads are significant and variable.
2. Commercial and Light Industrial:
Non-fused disconnect switches find their place in commercial buildings, light industrial settings, and residential applications where the primary need is for circuit isolation without the necessity for built-in overcurrent protection.
When it comes to safeguarding electrical circuits and ensuring safe maintenance practices, the choice of disconnect switch plays a pivotal role. Whether to opt for a fused or non-fused disconnect switch is a decision that spans considerations of safety, application requirements, and existing protective devices within a system.
At the core of the decision-making process is a thorough understanding of the application-specific risks and requirements:
1. High-Risk Environments:
In industrial settings or applications where the electrical load is heavy and the risk of short circuits or overloads is high, fused disconnect switches offer an indispensable layer of protection. The integrated fuses can swiftly interrupt power in the event of a fault, safeguarding both the system and personnel.
2. General-Purpose Applications:
For general applications where the electrical system is not subjected to extreme conditions or heavy loads, and where circuit protection is adequately provided by other means (e.g., circuit breakers), non-fused disconnect switches may suffice, offering a simpler and cost-effective solution for circuit isolation.
Evaluating the overall protection scheme of the electrical system is crucial:
1. Integrated Protection Systems:
In modern installations where comprehensive protection systems are in place, opting for non-fused disconnect switches might avoid redundancy. These settings often involve multiple layers of protection, including main and branch circuit breakers that are designed to handle fault conditions.
2. Need for Supplementary Protection:
In contrast, in setups lacking adequate overcurrent protection—either due to design constraints or the nature of the load—a fused disconnect switch serves not just as a means for isolation but also as a critical protective device.
Adherence to safety standards and regulatory guidelines is non-negotiable:
1. Regulatory Standards:
Some jurisdictions or specific applications may mandate the use of fused disconnect switches as part of compliance with electrical safety regulations, especially in industrial environments or in circuits powering critical infrastructure.
2. Safety Protocols:
For maintenance and serviceability, the type of disconnect switch selected should align with best safety practices, minimizing the risk of electrical accidents during routine operations or fault conditions.
Considering the operational lifecycle and maintenance implications is essential:
1. Maintenance Considerations:
Fused disconnect switches might require more frequent maintenance or replacement parts (fuses) in the event of a fault occurrence. This factor could influence the choice, especially in applications where minimizing downtime is critical.
2. Reliability and Durability:
Non-fused disconnect switches, being simpler in construction and devoid of consumable components, may offer enhanced reliability and reduced maintenance over the long term, particularly in less demanding environments.
| Fused Disconnect Switches | These switches incorporate fuses into their design, providing a dual function of circuit disconnection and protection. The integrated fuses are designed to blow in the event of an overcurrent or short circuit, thereby interrupting the power supply and protecting the circuit from damage. This built-in protective feature makes them suitable for applications where additional circuit protection is paramount. |
Non-Fused Disconnect Switches | In contrast, non-fused disconnect switches serve a singular purpose: to safely isolate parts of the electrical system for maintenance or emergency purposes. They do not offer inherent protection against overcurrent or short circuits and rely on external protective devices, such as circuit breakers, to safeguard the circuit. |
| Fused Disconnect Switches | Due to their protective capability, fused disconnect switches are favored in high-risk environments and heavy-duty applications. They are especially beneficial in scenarios where multiple sources of power supply are involved or where the electrical load is variable and unpredictable, necessitating an additional layer of protection. |
Non-Fused Disconnect Switches | Simpler and typically more cost-effective, non-fused disconnect switches are suitable for applications where circuit protection is already adequately covered by other means. They are commonly chosen for light industrial, commercial, and residential uses, where the primary requirement is the safe isolation of circuits. |
| Fused Disconnect Switches | Maintenance considerations are more pronounced with fused disconnect switches. The fuses, being consumable components, need to be replaced after they blow. This necessitates a stock of replacement fuses and introduces additional maintenance activity. However, this is balanced by the enhanced protection they provide, potentially saving significant costs by preventing equipment damage. |
Non-Fused Disconnect Switches | Boasting a simpler design with fewer moving parts and no consumables, non-fused switches generally require less maintenance and enjoy a longer lifecycle. This results in lower long-term operational costs, making them an attractive option for many installations. |
| Initial Cost | Fused disconnect switches typically have a higher initial cost due to the additional components (fuses) and more complex design. This initial investment may be justified by the added protection and potential savings in preventing damage to connected equipment. |
Operational Cost | Non-fused switches, while lower in initial cost, do not offer the same level of protection. However, they may result in lower operational costs over time, attributed to reduced maintenance needs and the absence of consumable components. |
The decision between a fused and non-fused disconnect switch is influenced by a multitude of factors, from application-specific risks to regulatory compliance and maintenance considerations. By carefully assessing the demand for protection, existing system infrastructure, and long-term operational needs, engineers and facility managers can select the disconnect switch that best aligns with their safety, efficiency, and reliability goals.
